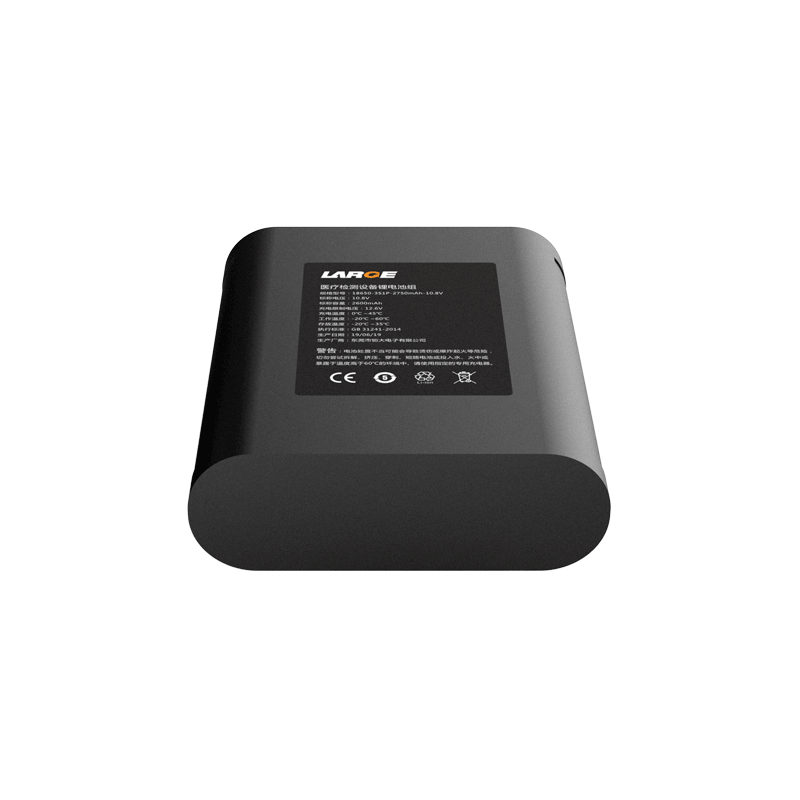

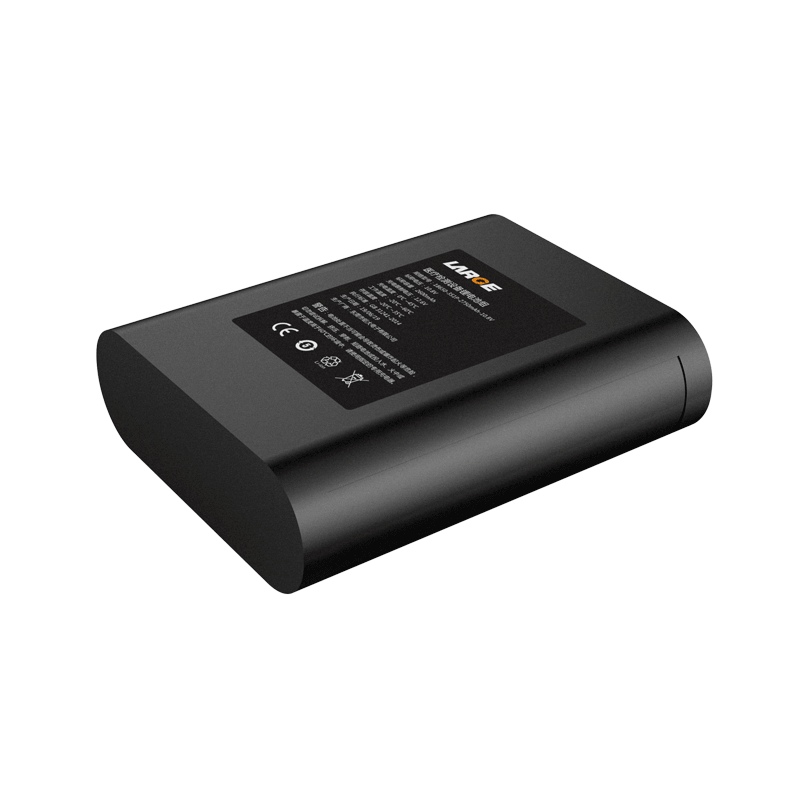

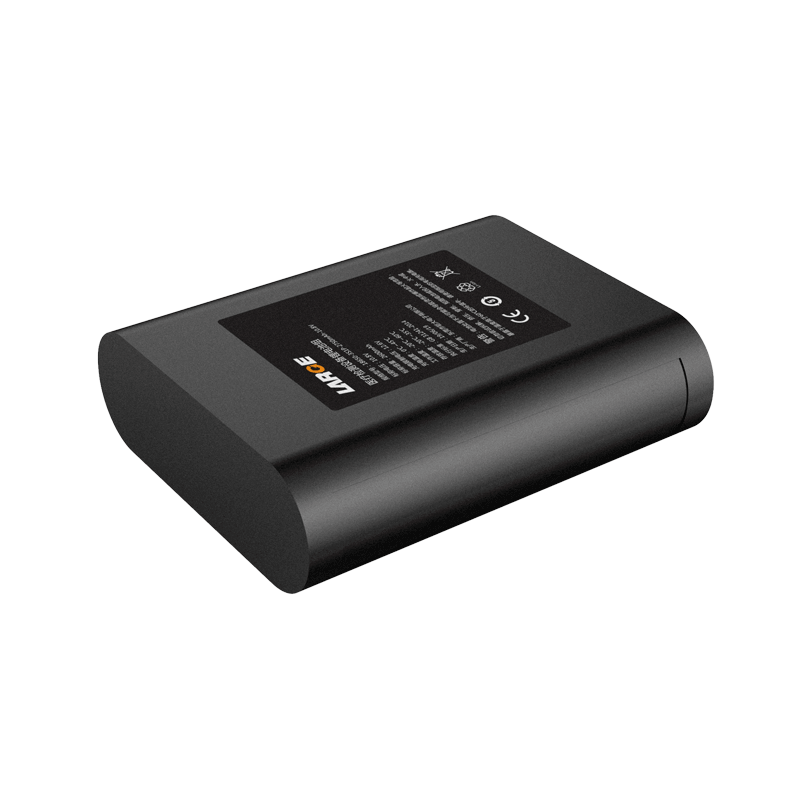

18650 10.8V 2600mAh Lithium Battery Samsung Battery for Medical Device

Product Detail

Product number: 01WQ0030-01T

Cell model:18650/2600mAh-3.6V

Battery specification: 18650-3S1P-2750mAh-10.8V

Nominal voltage:10.8V

Nominal capacity:2600mAh

Charging voltage: 12.6V

Charging current: ≤1200mA

Discharging current: ≤2500mA

End-off voltage: 8.25V

Internal resistance: ≤250mΩ

Battery weight: about 160g

Product dimension: 70*56.5*20mm(MAX)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: PVC

Lithium ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection and discharge short circuit protection.

Application field: medical device
