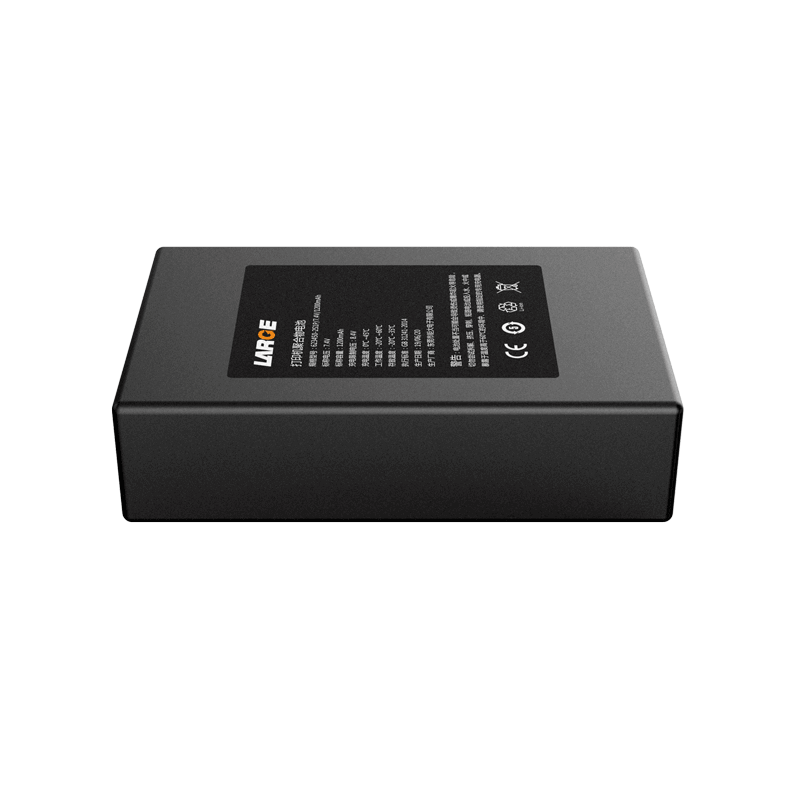

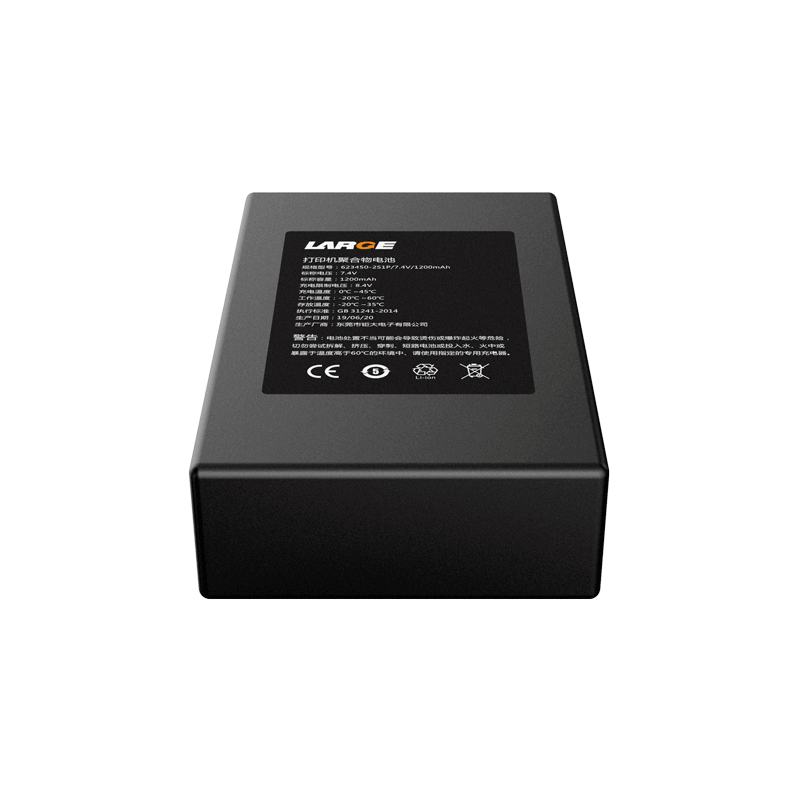

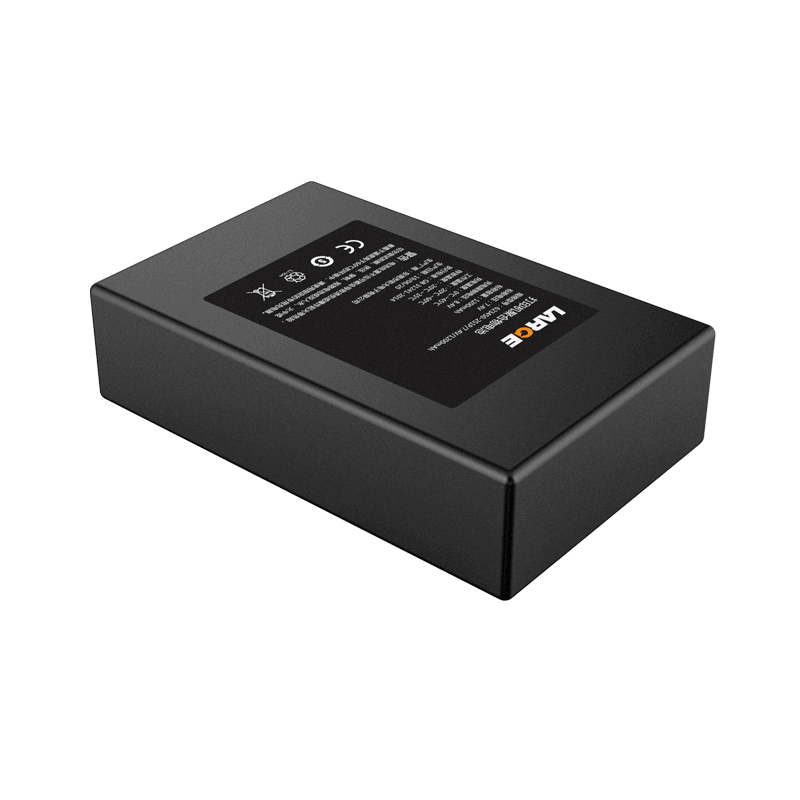

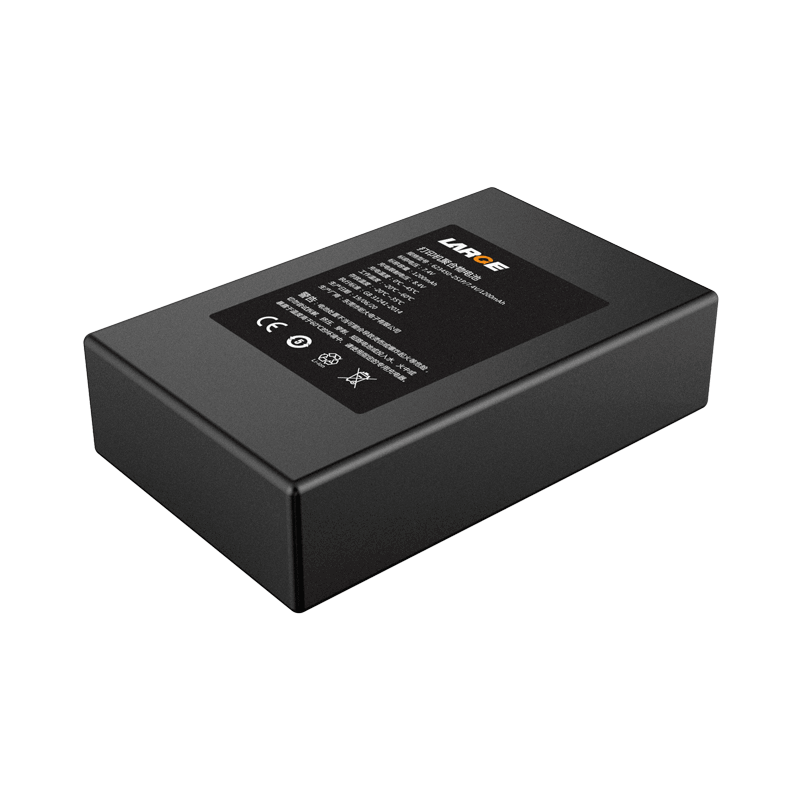

7.4V 1200mAh Polymer Battery Hongde Battery for Printer

Product Detail

Product number: 02DQ0099-11

Cell model:623450/3.7V/1200mAh

Battery specification: 623450-2S1P/7.4V/1200mAh

Nominal voltage:7.4V

Nominal capacity:1200mAh

Charging voltage: 8.4V

Charging current: ≤1.2A

Discharging current: 0.6A

Instant discharging current: 2.4A

End-off voltage: 6V

Internal resistance: ≤200mΩ

Battery weight: 0.05Kg

Product dimension: 54.5*34.5*14mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: Commercial finance

*
*
*
