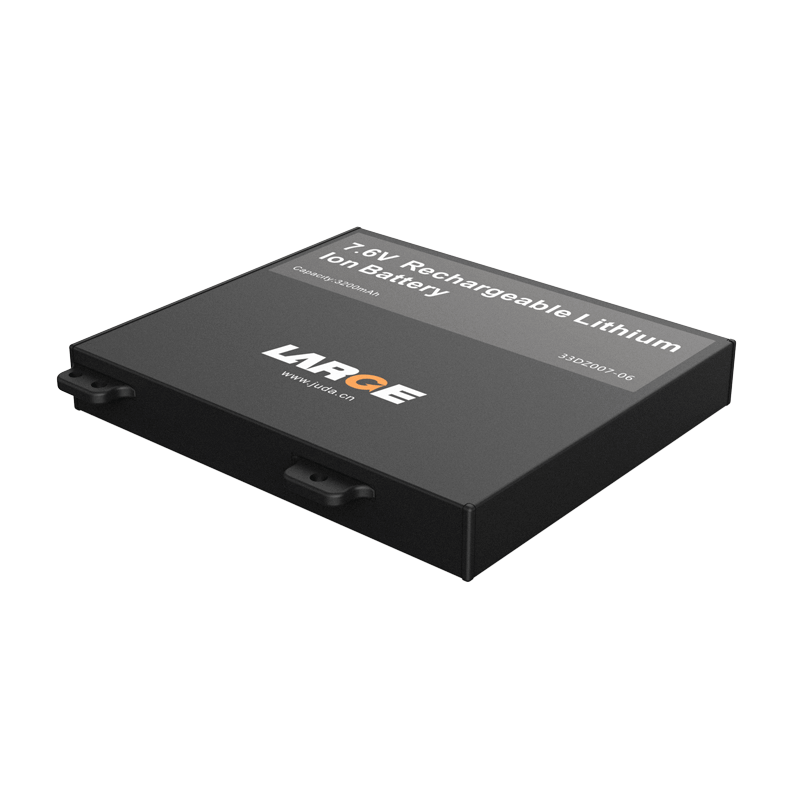

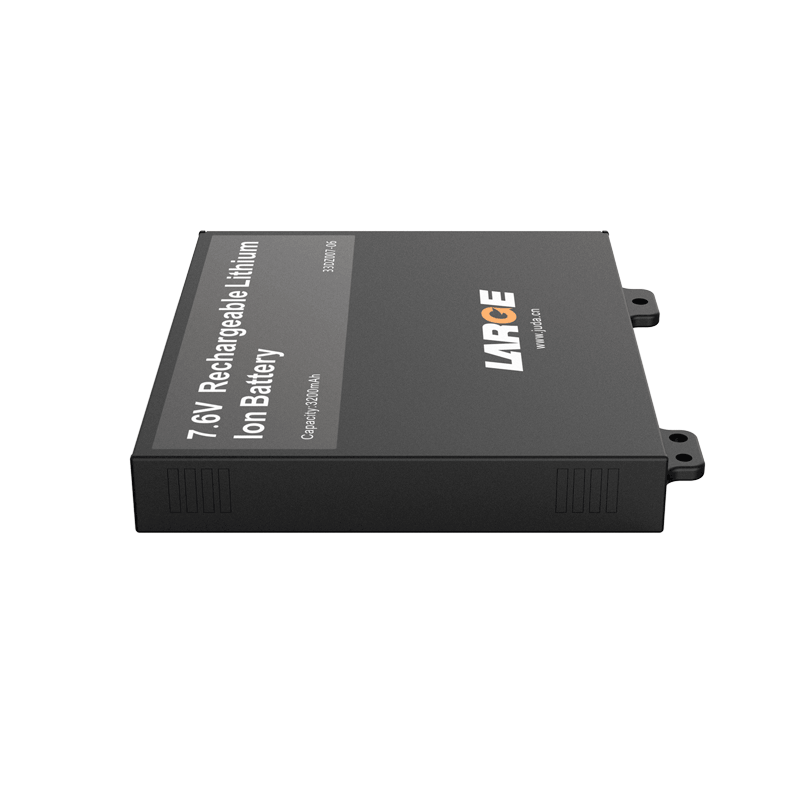

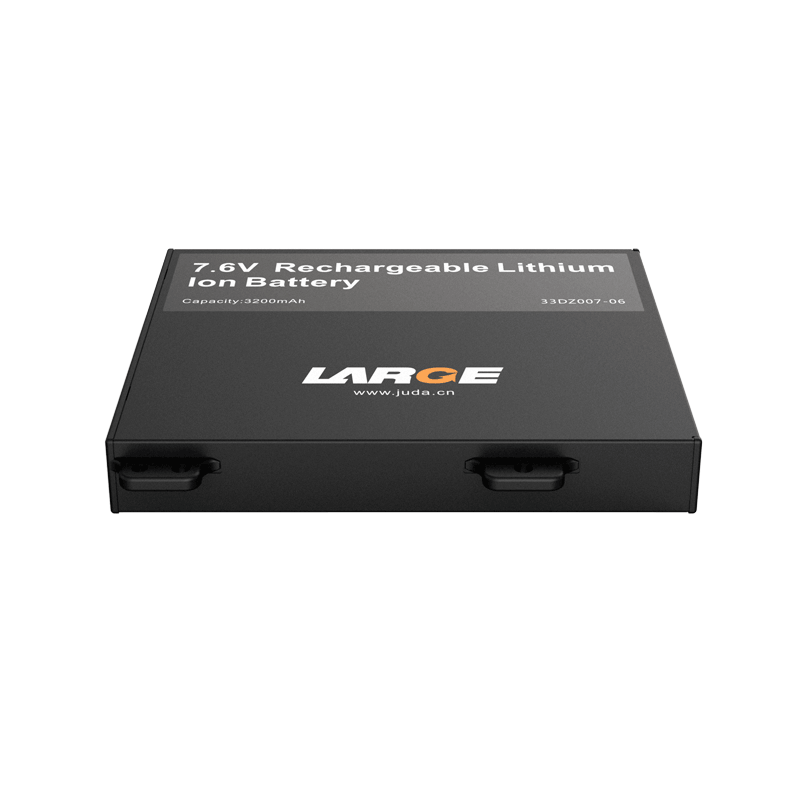

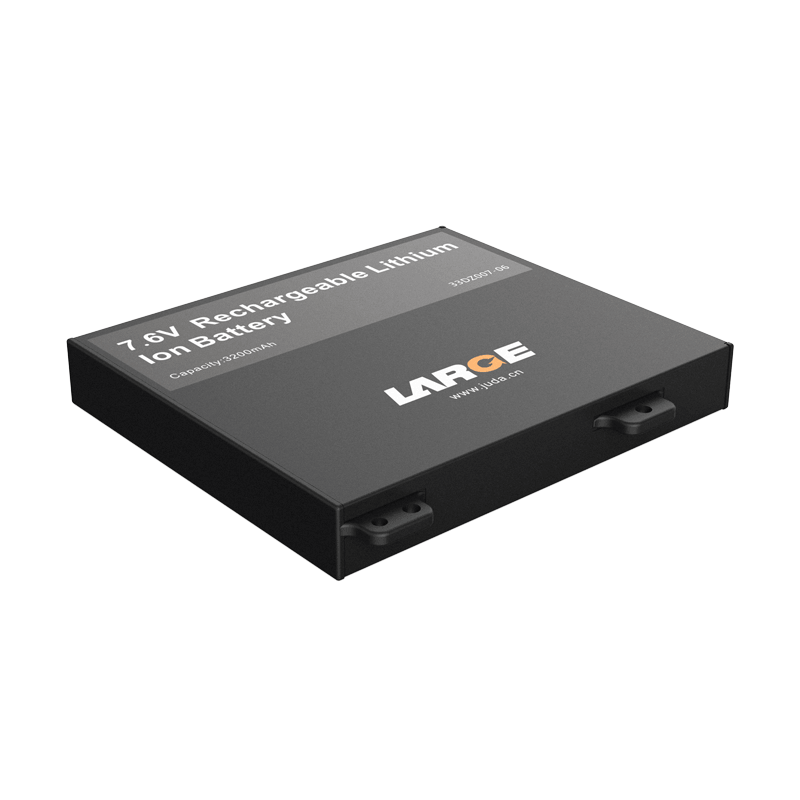

LA486068 7.6V 3.2A Lithium Polymer Battery for Handheld Tablet with IIC Communication

Product Detail

Product number: 33DZ007-06

Cell model:LA486068/3200mAh/3.80V

Battery specification: LA486068-1S1P/7.6V/3.2Ah

Nominal voltage:7.6V

Nominal capacity:3.2Ah

Charging voltage: 8.7V

Charging current: ≤1.6A

Discharging current: 3A

Instant discharging current: 3.2A

End-off voltage: 6V

Internal resistance: ≤150mΩ

Battery weight: 300g

Product dimension: 73*68.5*10.5 mm(L*W*H)

Charging temperature:0~45℃

Discharging temperature: -10~55℃

Storage temperature: -20℃~45℃

Battery case: industrial grade

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, IIC communication, etc.

Application field: handheld tablet


Product features

Current: It can keep discharging in 3.2A at maximum.

Data communication management: adopt imported software management chip, IIC communication, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

Cell characteristics: use self - developed ultra - high capacity polymer cell.

The battery pack has long cycling life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
