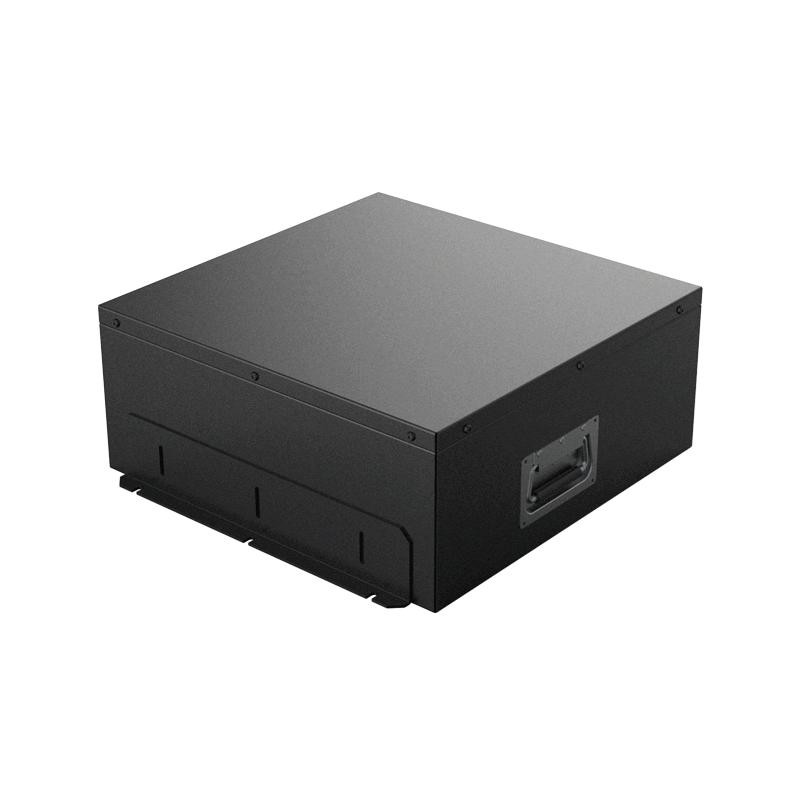

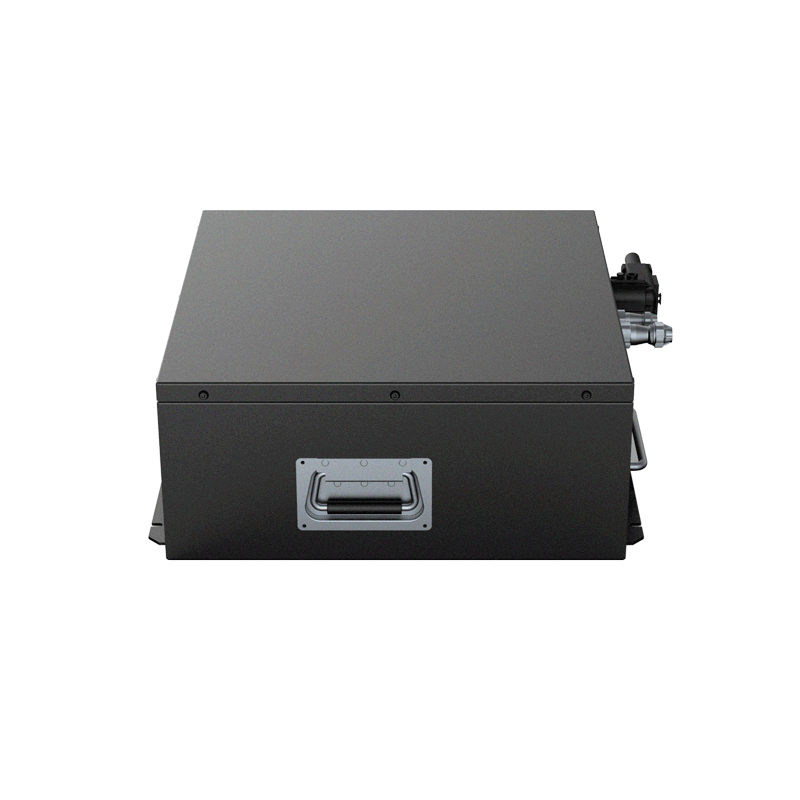

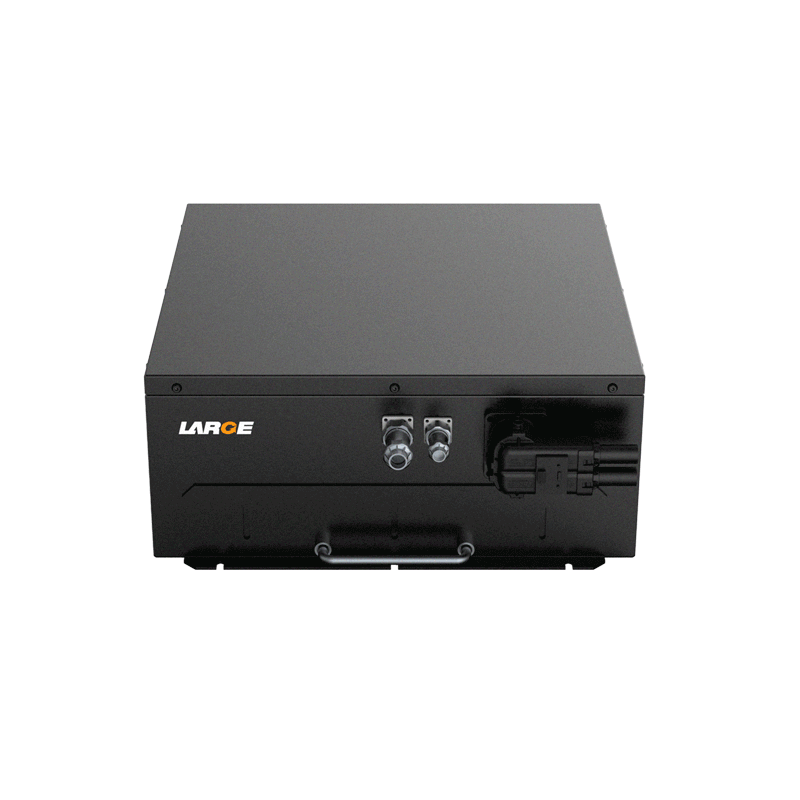

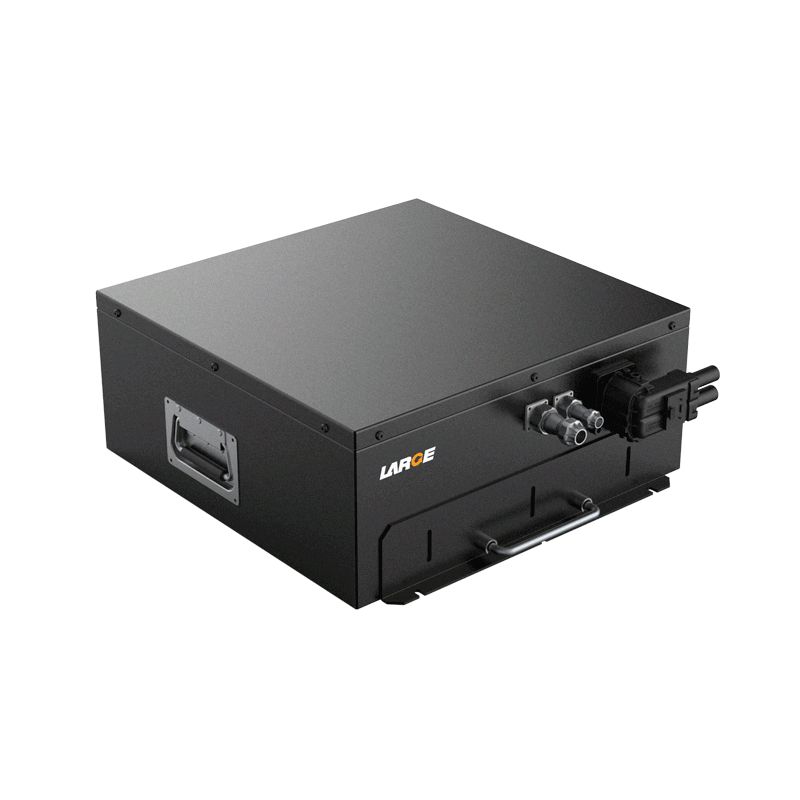

64V 73.5Ah LiFePO4 Battery for Industrial Robot with 485 Communication Protocol

Product Detail

Product number: 01DQ0023-42

Cell model:26650-3.2V-3.5Ah

Battery specification: 26650-20S21P-73.5Ah-64V

Nominal voltage:64V

Nominal capacity:73.5Ah

Charging voltage: 72V

Charging current: ≤20A

Discharging current: 40.0A

Instant discharging current: 100.0A

End-off voltage: 50.0V

Internal resistance: ≤150mΩ

Battery weight: 52Kg

Product dimension: 450.0*460.0*192.5.0(mm)max

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~45℃

Battery case: general industrial grade

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: industrial robot

Product features

1. Communication protocol: CAN  communication protocol can transmit product data.

2. Cell characteristics: power type LiFePO4 battery pack

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4. High current output ensures the safety of industrial robots in fire fighting.
