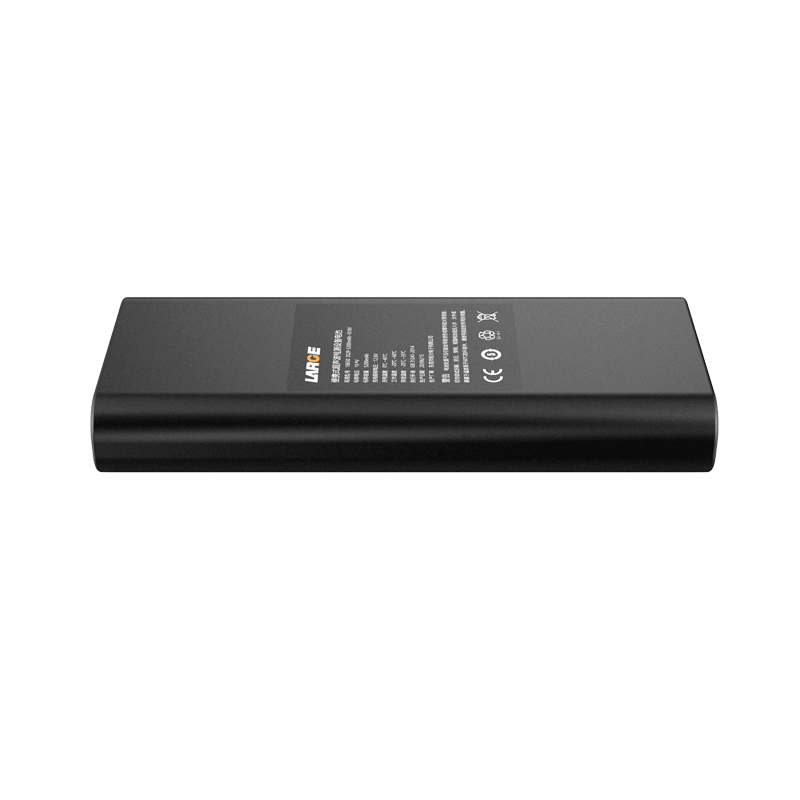

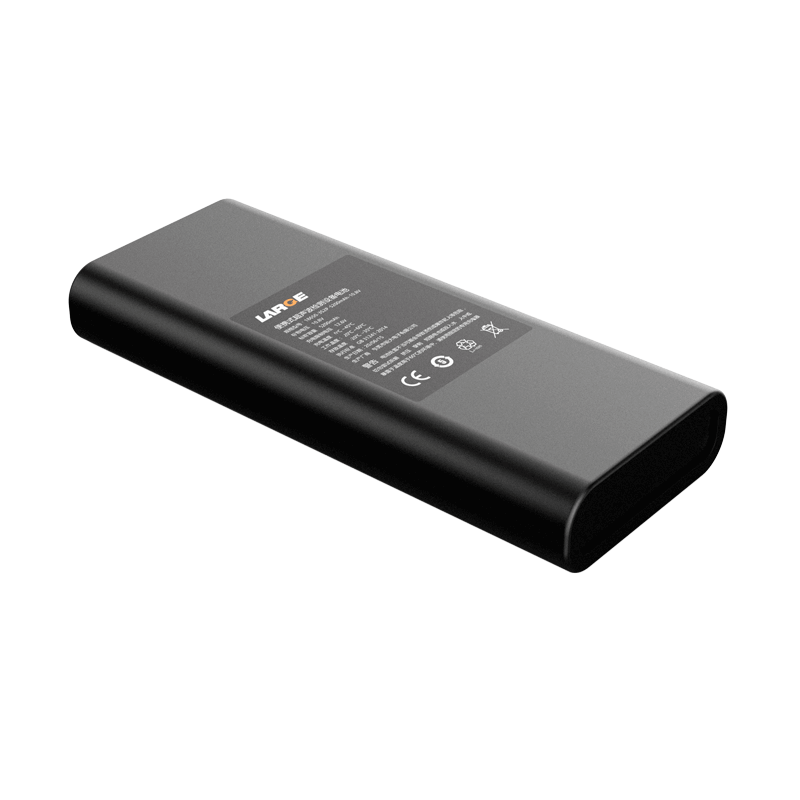

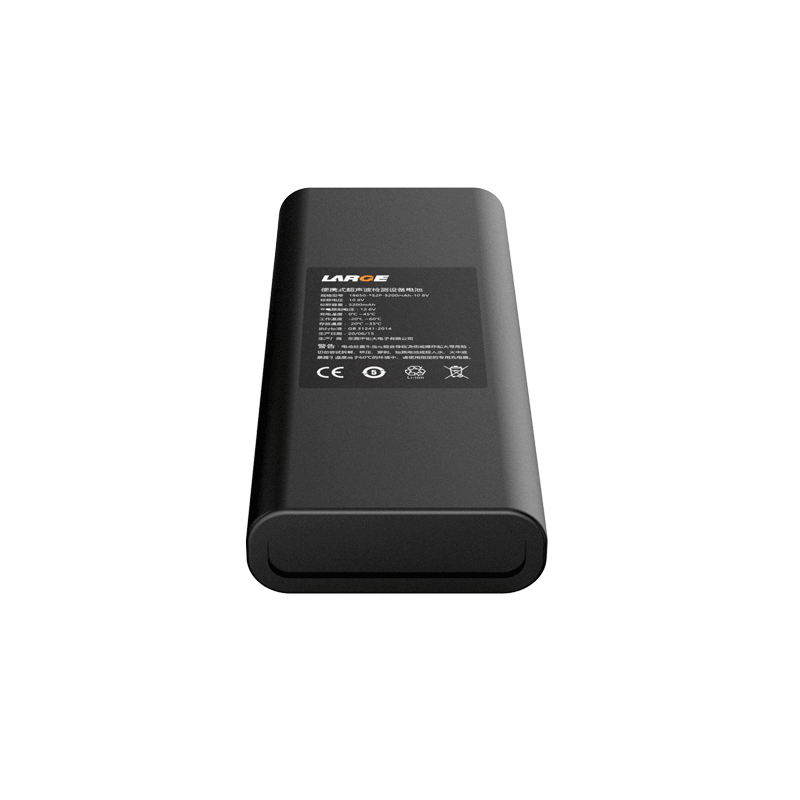

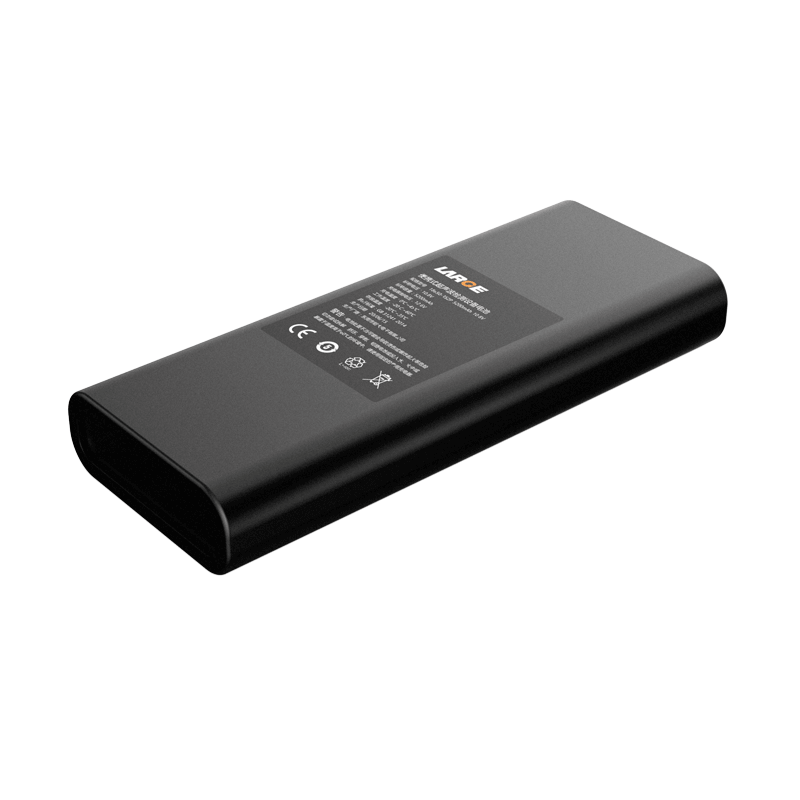

18650 10.8V 5200mAh Lithium Ion Battery for Portable Ultrasonic Testing Equipment

Product Detail

Product number: 08AQ543-20

Cell model:18650-2600mAh-3.6V

Battery specification: 18650-3S2P-5200mAh-10.8V

Product dimension: 140*58*21mm(Max)

Nominal voltage:10.8V

Nominal capacity:5200mAh

Charging voltage: 12.6V

Charging current: ≤2.5A

Discharging current: 1.0A

Instant discharging current: 6A

End-off voltage: 7.5V

Internal resistance: ≤250mΩ

Battery weight: 500g

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery case: blue PVC shrink film package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection, overcurrent protection, ESD protection, etc.

Application field: portable ultrasonic facilities, medical B ultrasonic diagnostic set


Product features

1. PVC shrink film package is simple, reliable and easy to install.

2. Connector plug outlet: adopt MOLEX plug to increase conductive reliability.

3. Data communication management: Use TI-SMBus software management chip, SMBus communication accurate data transmit and precise temperature control to maximize the elimination of security risks.

4.The battery pack has good safety performance, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
