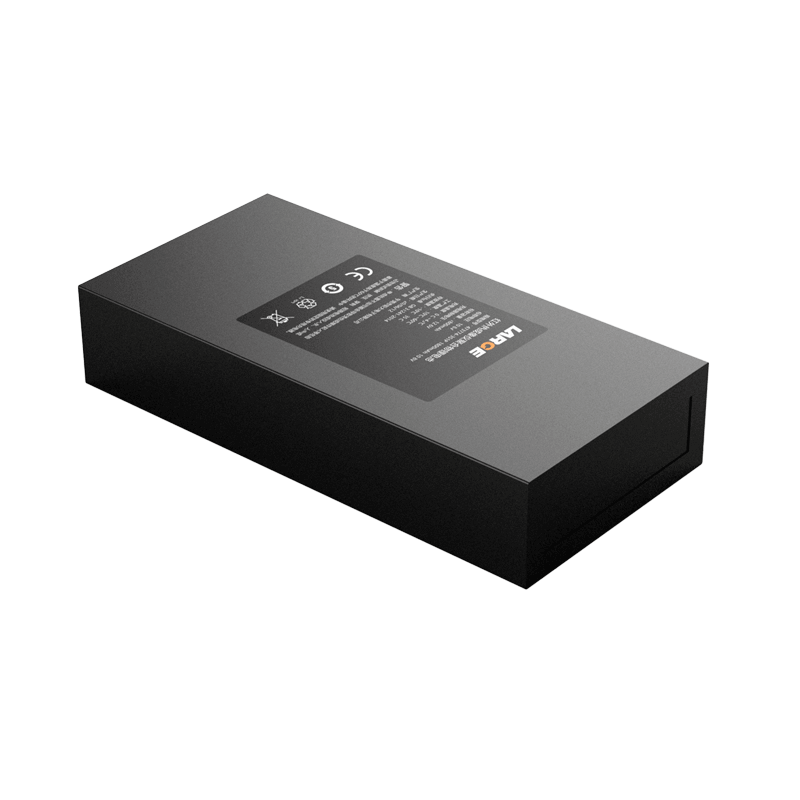

10.8V 1800mAh Lithium Polymer Battery for Infrared Thermal Imager

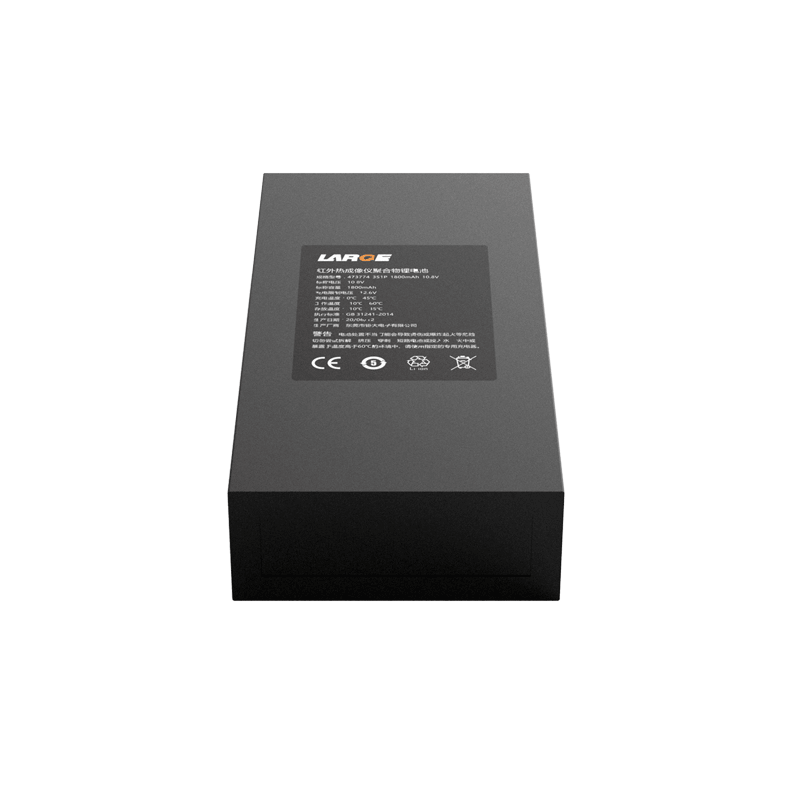

10.8V 1800mAh Lithium Polymer Battery Pack - Image 2

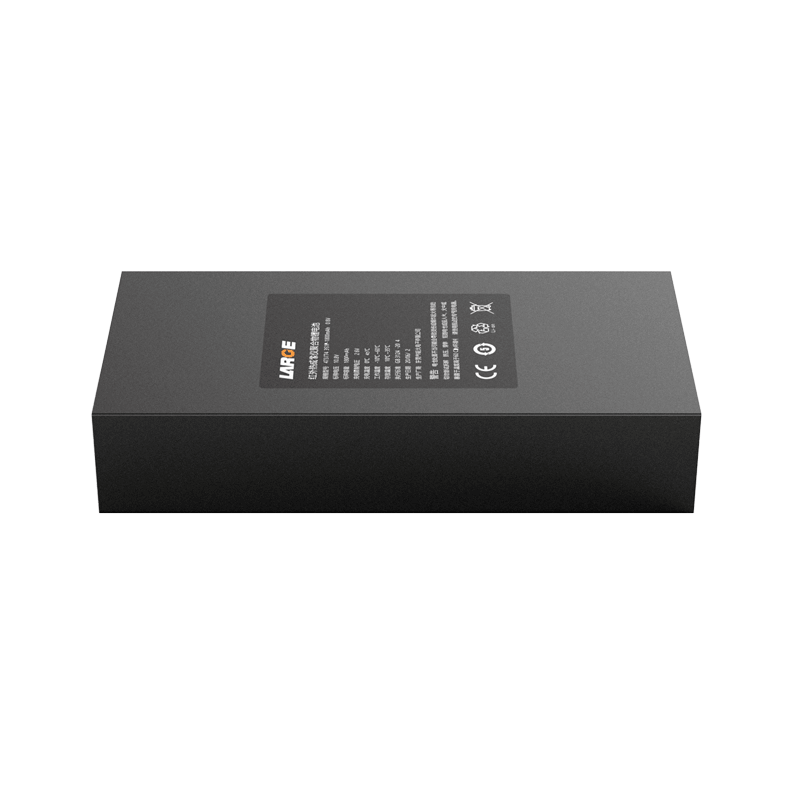

10.8V 1800mAh Lithium ion Battery Pack

10.8V 1800mAh Lithium Polymer Battery Pack

Product Number:
01DQ0120-01
Nominal voltage:
10.8V
Nominal capacity:
1800mAh
Battery Configuration:
473774-3S1P
Dimension:
79×38×15.5mm
Application:
infrared imager
Get Custom Solution
MOLEX connector output,ESD protection BMS,ABS+PC enclosure durability
Product Overview
This lithium polymer battery is designed for portable infrared thermal imagers used in industrial inspection and outdoor diagnostics. It delivers stable output and compact structure, supporting continuous imaging and reliable field operation in demanding environments.

Electrical Specifications

Property Parameter
Product Number 01DQ0120-01
Cell Model 473774-1800mAh-3.6V
Battery Configuration 473774-3S1P
Nominal Voltage 10.8V
Nominal Capacity 1800mAh
Rated Energy 19.44Wh
Charging Voltage 12.6V
Discharge Cut-off Voltage 9.0V
Standard Charging Current ≤0.9A
Standard Discharge Current 0.3A
Max Continuous discharge current 1.8A
Internal Resistance ≤280mΩ

Mechanical & Environmental

Property Parameter
Charging Temperature 0～45℃
Discharge Temperature -10～60℃
Storage Temperature -10～35℃
Dimensions 79×38×15.5mm (Max)
Weight 100g
Output Type MOLEX connector output
Battery Case PVC + ABS+PC enclosure
Protection System Short circuit / Overcharge / Overdischarge / Overcurrent / ESD protection

Application Background

This battery pack is designed for portable infrared thermal imaging devices used in industrial inspection,security monitoring, and outdoor diagnostics. The equipment requires stable power output for continuous imaging and real-time temperature data processing in compact handheld structures.

Project Challenges

Continuous operation 4–6 hours under field inspection scenarios
High-frequency imaging load causes voltage fluctuation risk
Frequent charge–discharge cycles require stable cycle life
Compact device structure limits battery size and weight

Customized Battery Solution

10.8V polymer platform: optimized for stable infrared imaging power supply
Compact PVC+ABS/PC housing: ensures lightweight and reliable integration
Multi-protection BMS: overcharge, overdischarge, overcurrent, short-circuit and ESD protection
Wide-temperature design: supports -10～60℃ operation for outdoor environments

Application Results

Enables stable continuous imaging operation for 4–6 hours
Improved output stability under high-load thermal sensing
Lightweight design improves handheld usability
Enhanced cycle life supports long-term field deployment

We support flexible customization based on your project requirements, including:

  • Voltage range: 3.2V – 72V
  • Capacity range: 100mAh – 100Ah
  • Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
  • Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
  • BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
