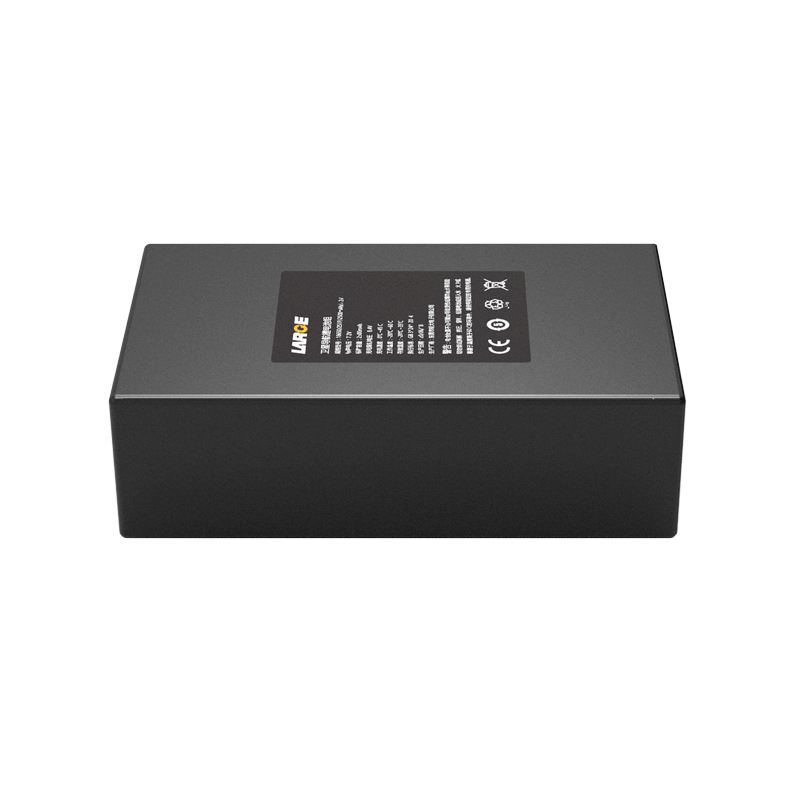

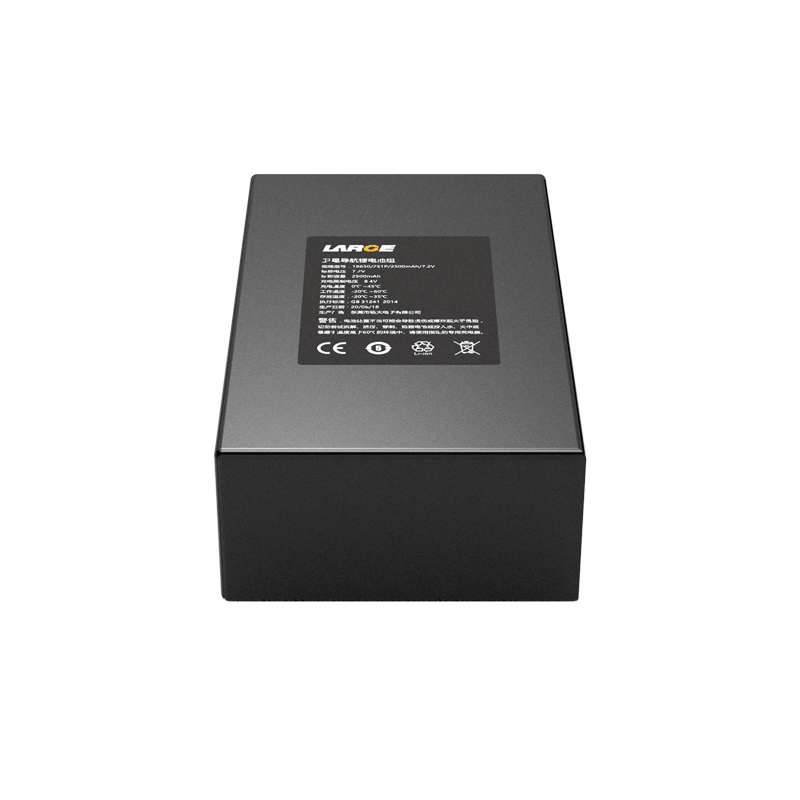

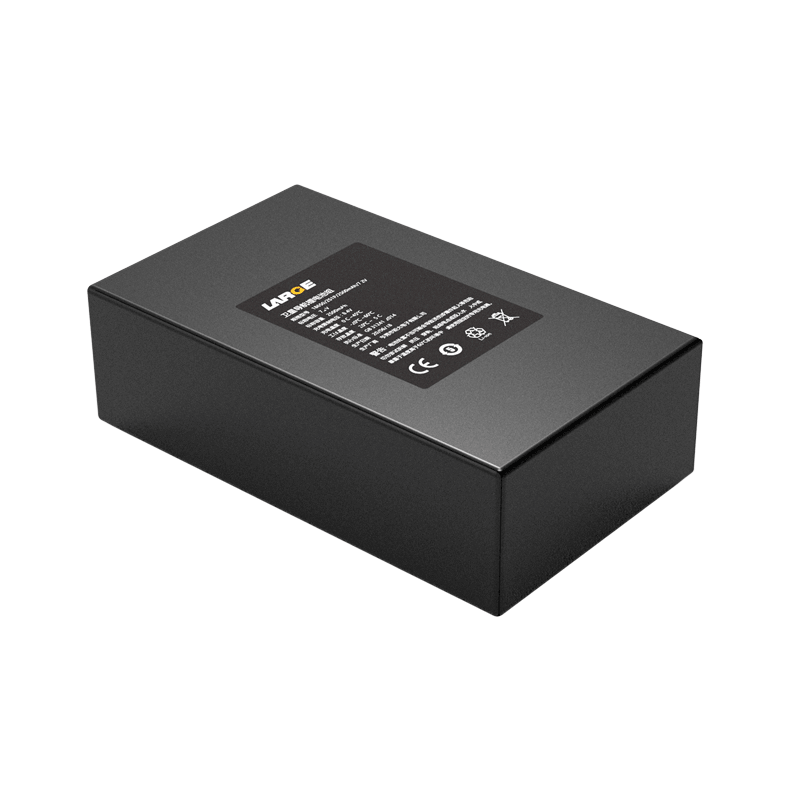

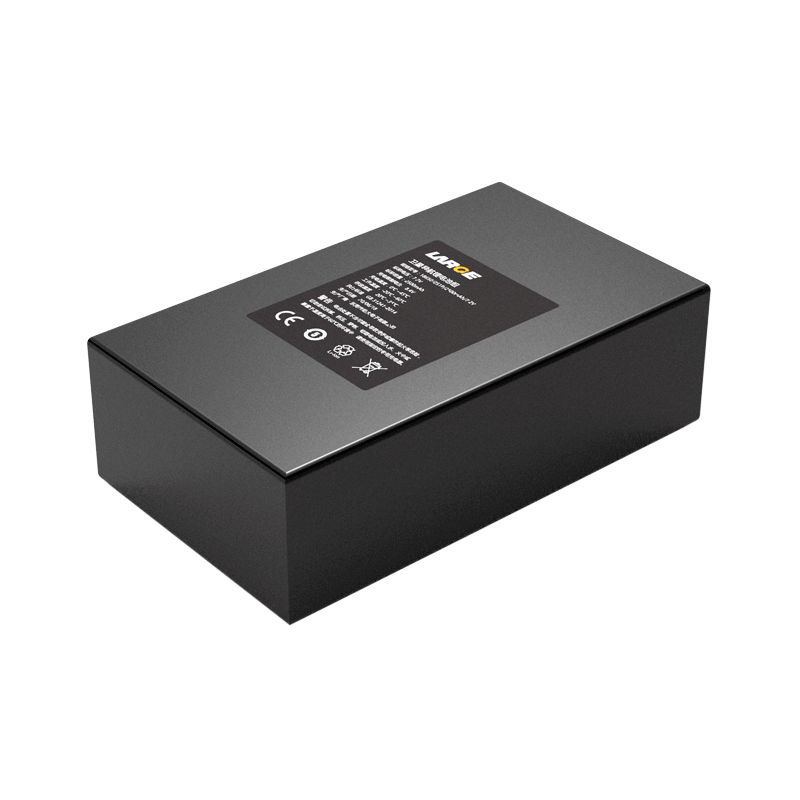

26650 6.4V 14Ah LiFePO4 Battery for Power Grid Detector Equipment

Product number: 34AQ018-04

Cell model：26650/3500mAh/3.2V

Battery specification: 26650-2S4P/14Ah/6.4V

Nominal voltage：6.4V

Nominal capacity：14Ah

Charging voltage: 7.2V

Charging current: ≤5A

Discharging current: 5A

Instant discharging current: 8A

End-off voltage: 4.0V

Internal resistance: ≤250mΩ

Battery weight: 1Kg

Product dimension: 137*109*30mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～35℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: power grid detection equipment

Product features

1. Current: Continuous discharge maximum 5A.

2. Data communication management: use imported software management chip, 1-Wire communication function, accurate data transmission, precise temperature control, so as to eliminate security risks.

3. Battery characteristics: The battery has long life which can reach 2000 cycles, and can be continued to charge and discharge by large power.

4. The battery pack has good safety, nice low-temperature performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
