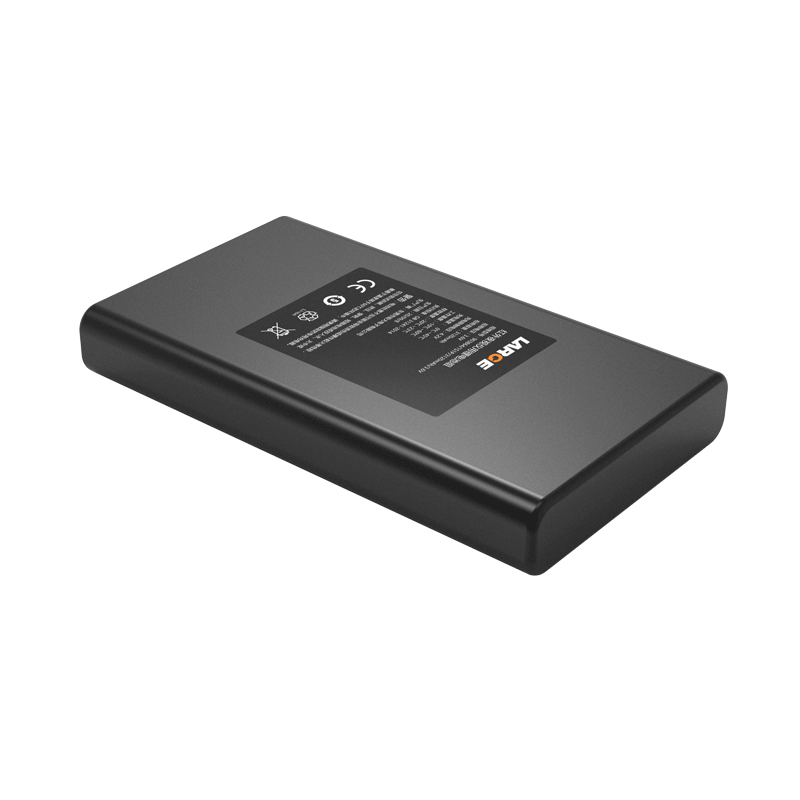

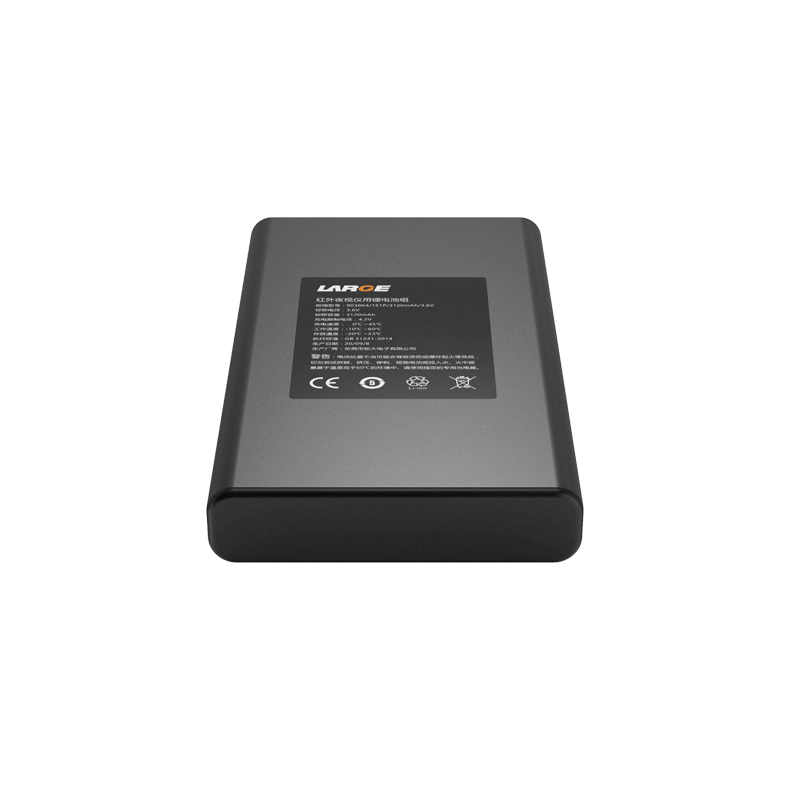

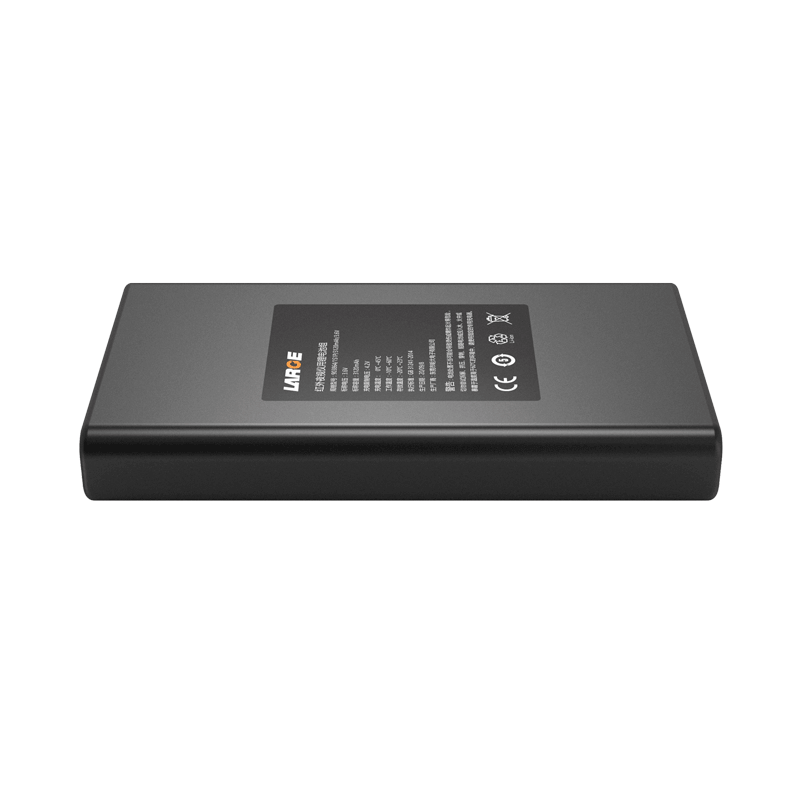

3.6V 3120mAh Panasonic Battery Ternary Battery for IR Night Vision

Product Detail

Product number: 36AQ588-01
Cell model:903864-3.6V/3120mAh(aluminum case)
Battery specification: 903864/1S1P/3120mAh/3.6V
Nominal voltage:3.6V
Nominal capacity:3120mAh
Charging voltage: 4.2V
Charging current: ≤2A
Discharging current: ≤3A
Instant discharging current: 4A,3~4S
End-off voltage: 2.8V
Internal resistance: ≤150mΩ
Battery weight: 60g
Product dimension: 67.5*38.5*9.2(mm)
Charging temperature:0~45℃
Discharging temperature: -10~60 ℃
Storage temperature: -20℃~+23℃(≤12 months)
Temperature protection: 65℃±5℃
Battery case: PVC
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.
Application field: portable industrial equipment


Product features
1. Imported cell: The battery pack has good security and nice reliability.
2. Special appearance design can custom all kinds of special structure. It is removable, and is easy to replace.
3. Well-known imported cell brand: The battery certification is easier to get.

*
*
*
