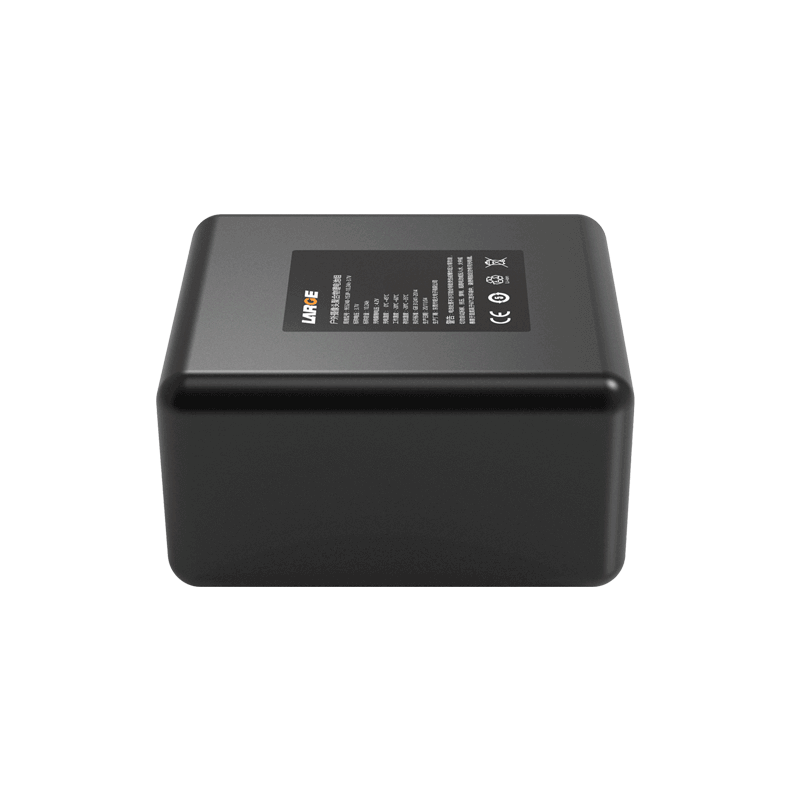

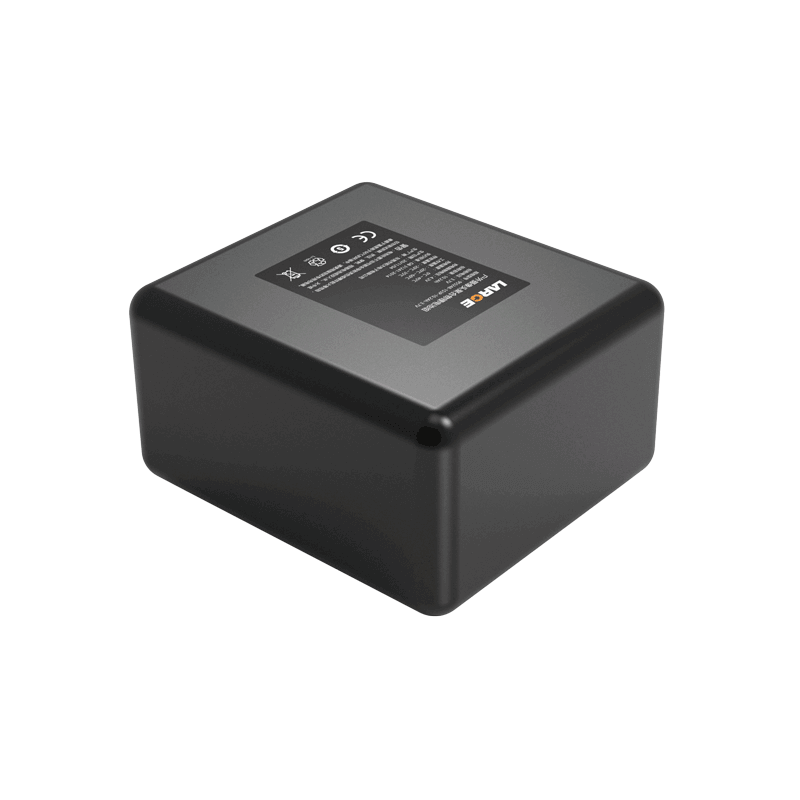

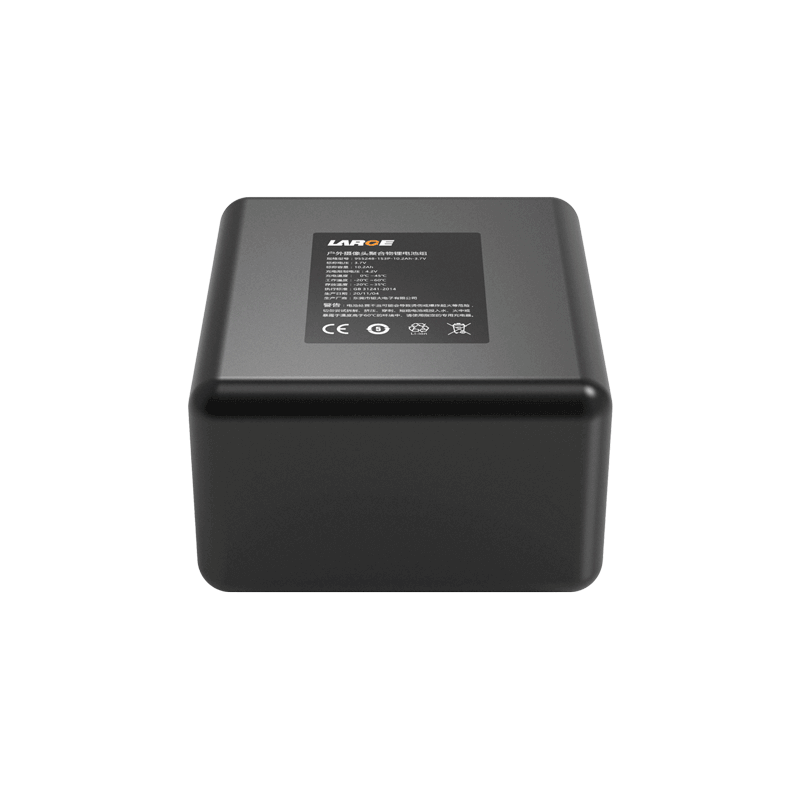

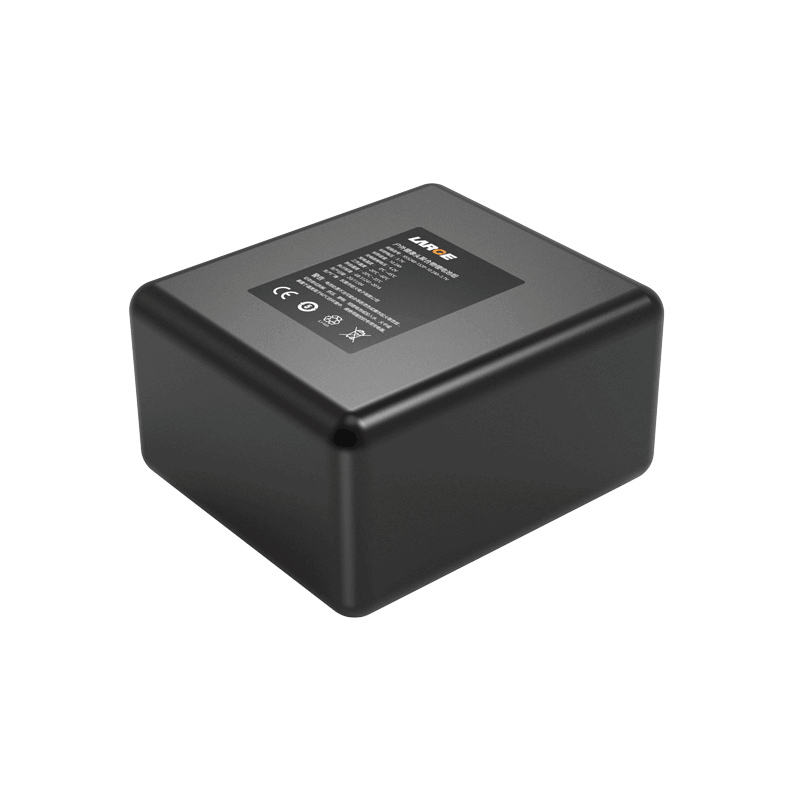

3.7V 10.2Ah Lithium Polymer Battery Ternary Battery for Outdoor Camera

Product number: 00BQ0001-35

Cell model：955248-3320mAh-3.7V

Battery specification: 955248-1S3P-10.2Ah-3.7V

Product dimension:49.5*52.5*29mm（Max）

Nominal voltage：3.7V

Nominal capacity：10.2Ah

Charging voltage: 4.2V

Charging current: ≤3A

Discharging current: ≤3A

End-off voltage: 3.0V

Internal resistance: ≤120mΩ

Battery weight: 160g

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Temperature protection: 65℃±5℃

Battery case: blue PVC heat shrinkable film

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over current protection and ESD protection

Application field: monitor, outdoor security equipment

Product features

1. Blue PVC heat shrinkable film is reliable and is easy to install.

2. Outlet: Adopt national UL1007 connector output mode to increase conductive reliability.

3. Battery protection management: Adopt imported Seiko protection chip with good stability, high precision monitoring, precise control so as to try our best to eliminate the security risks.

4. The battery pack has good security, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
