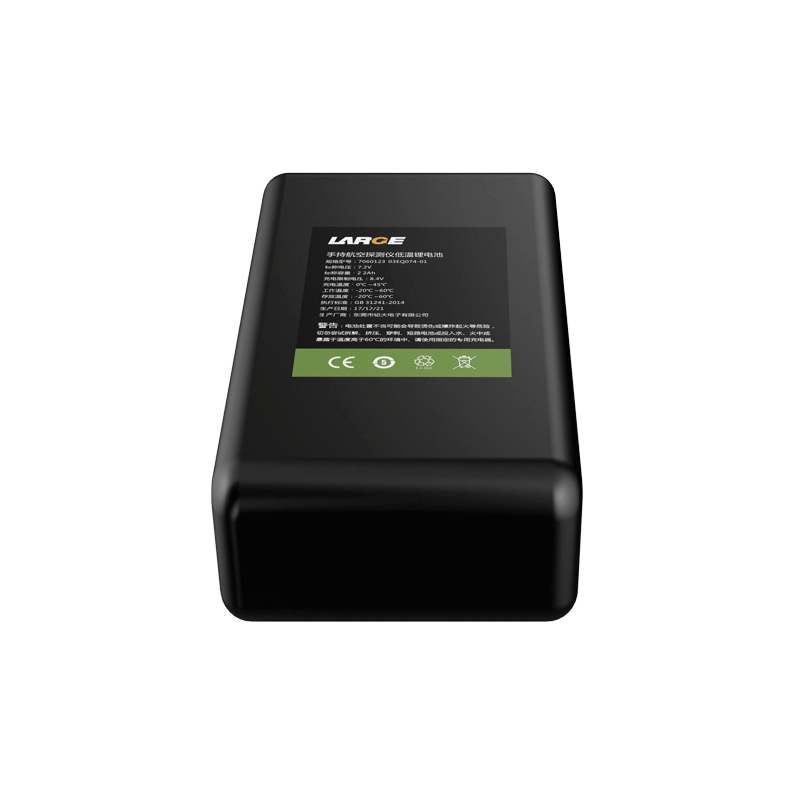

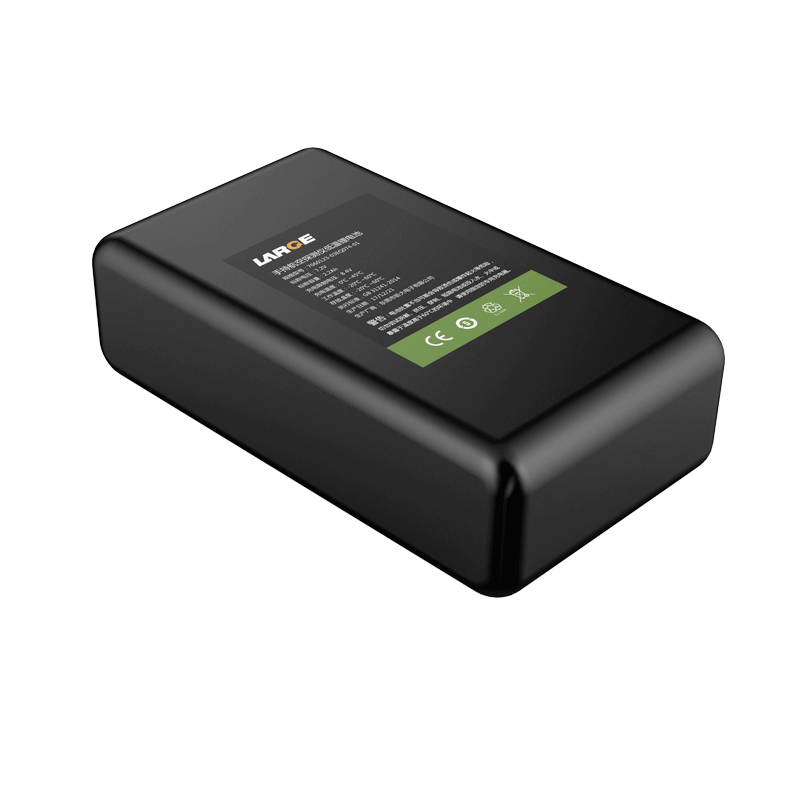

7.4V 2200mAh 18650 Low Temperature Lithium Ion Battery for Portable Aviation Detecting Instrument

Product Detail

Product number: 03EQ074-02

Cell model:18650/3.6V/2200mAh

Battery specification: 18650-2S1P/7.2V/2200mAh

Nominal voltage:7.2V

Nominal capacity:2.2Ah

Charging voltage: 8.4V

Charging current: ≤0.5A

Discharging current: 0.3A

Instant discharging current: 1A

End-off voltage: 5.6V

Internal resistance: ≤200m?

Battery weight: 120kg

Product dimension: 72*40*22mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -20~60 ℃

Temperature protection: 60℃±5℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: special application field, national defense, aerospace measurement and control instruments, etc.

*
*
*
