Custom Lithium ion Battery Pack

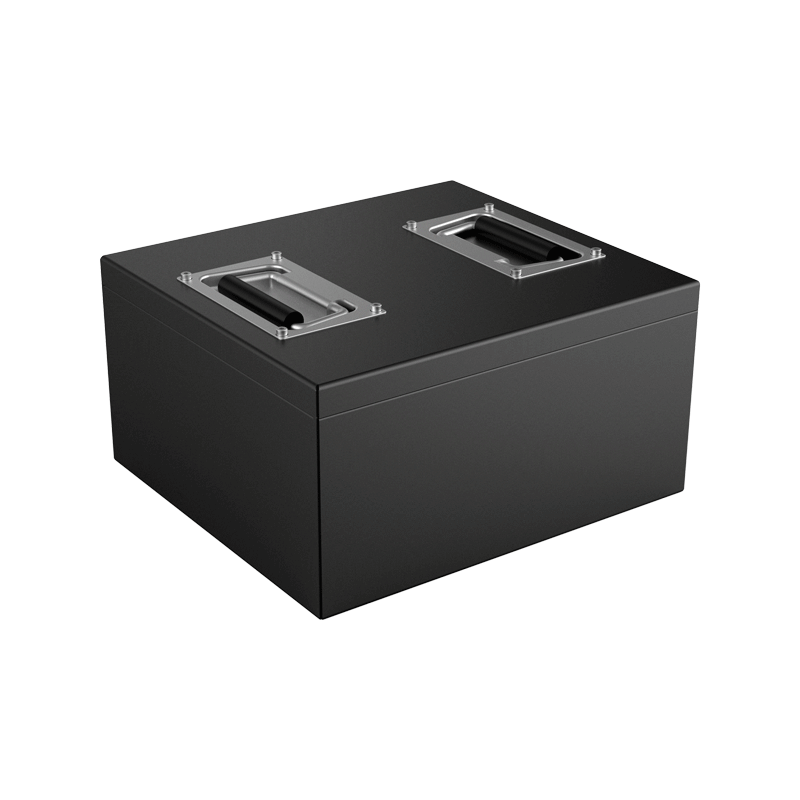

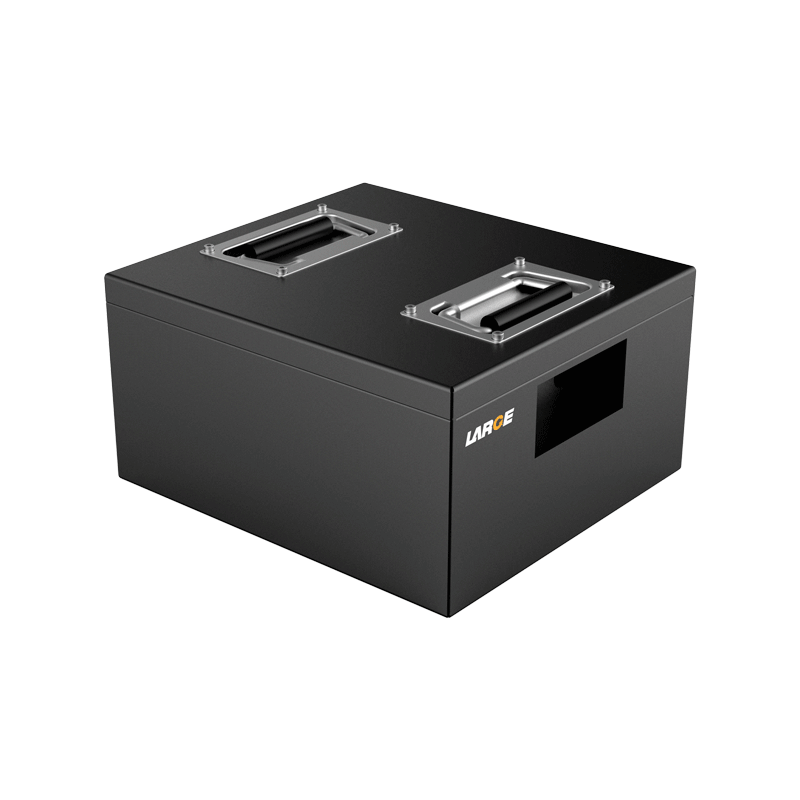

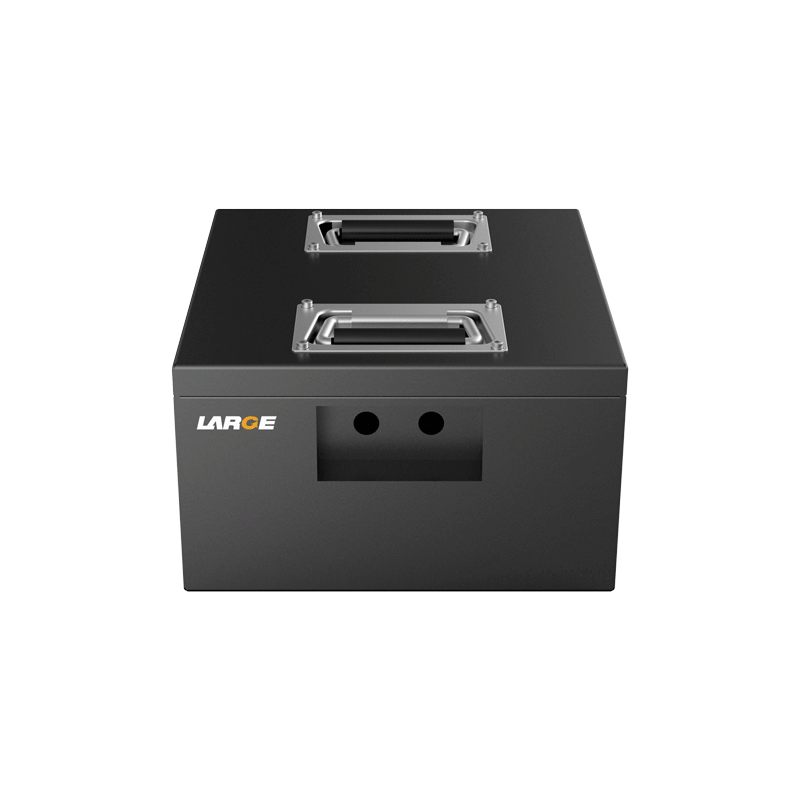

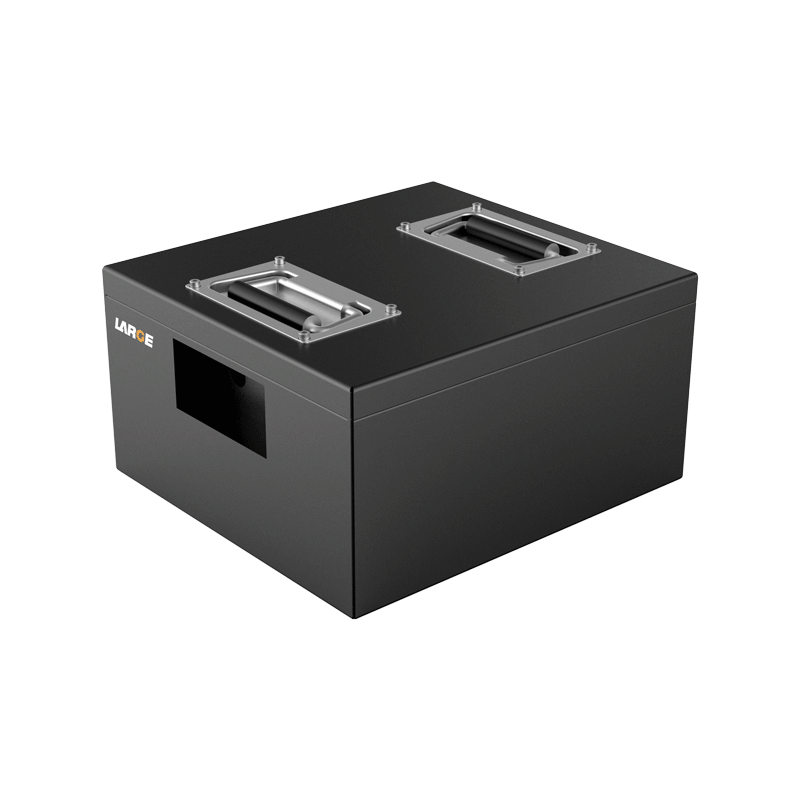

46.8V 60Ah 18650 Lithium Ion Battery Samsung Battery for Land Mine-disposing Robot with RS485 Communication

  • Model number:04EQ029-14

  • Nominal voltage:46.8V

  • Nominal capacity:60000mAh

  • Battery cell:18650/3.6V/3.35Ah

  • Dimension:300×270×155(Max)

  • Application: robot, AGV, RGV

Product Detail

Product number: 04EQ029-14

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650/13S18P/46.8V/60Ah

Nominal voltage:46.8V

Nominal capacity:60Ah

Charging voltage: 54.6V

Charging current: ≤10A

Discharging current: 10A

Instant discharging current: 30A

End-off voltage: 32.5V

Internal resistance: ≤120mΩ

Battery weight: 15Kg

Product dimension: 300×270×155(Max)

Charging temperature:0~45℃

Discharging temperature: -20~50℃

Storage temperature: -20~40 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: robot, AGV, RGV


Product features

1. Shock-resistant: fill in the shock-resistant structure inside by cold rolling metal plate to satisfy the requirements of good security and nice reliability.

2. Large current: connect the batteries by copper nickel compositing with nickel strap, which is safe and reliable.

3. Communication interface: have RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.

4. Data communication management: adopt BMS software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
