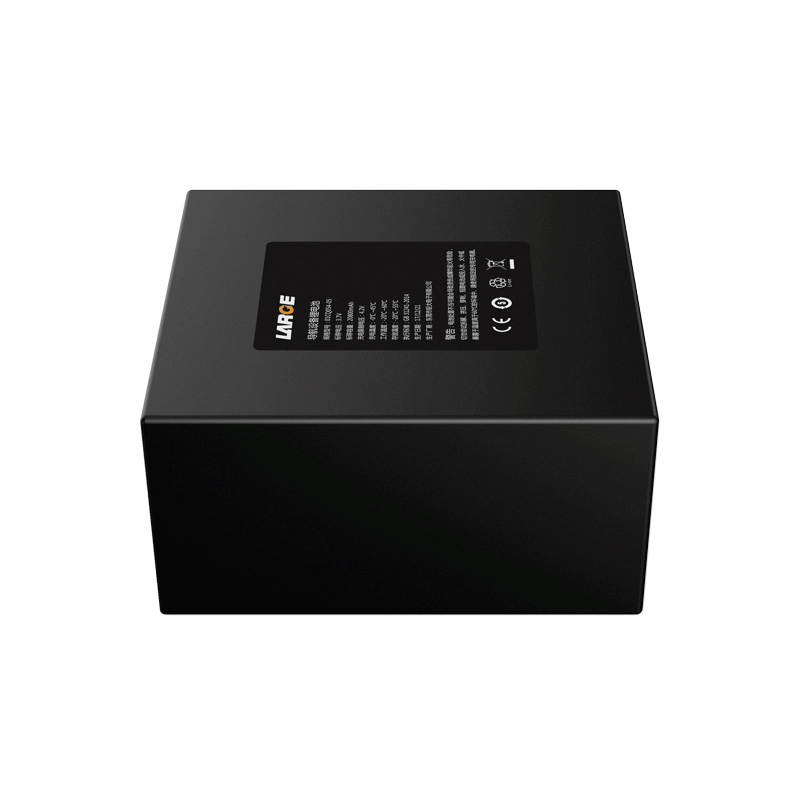

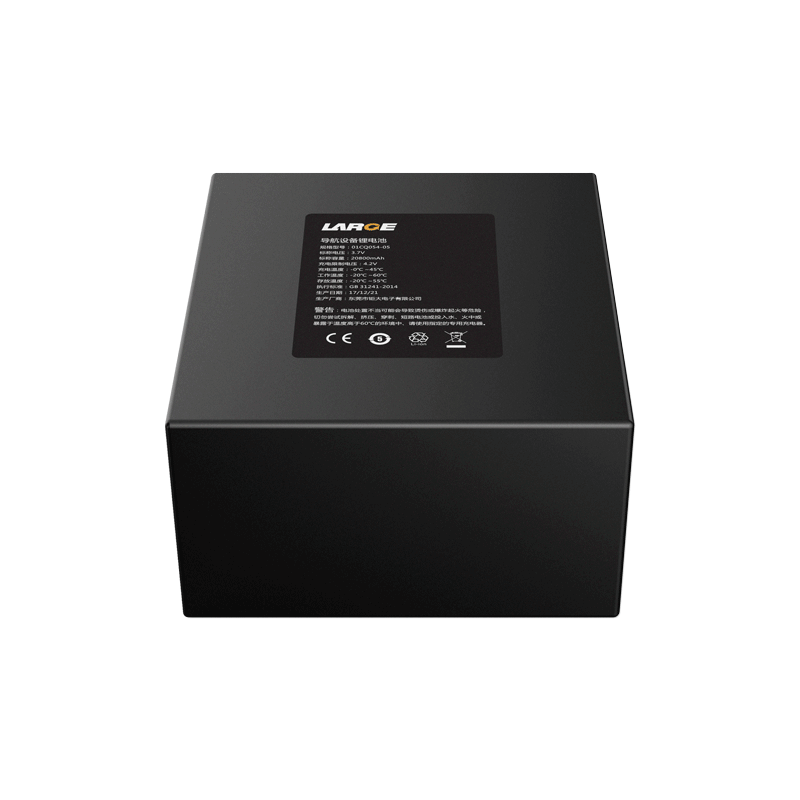

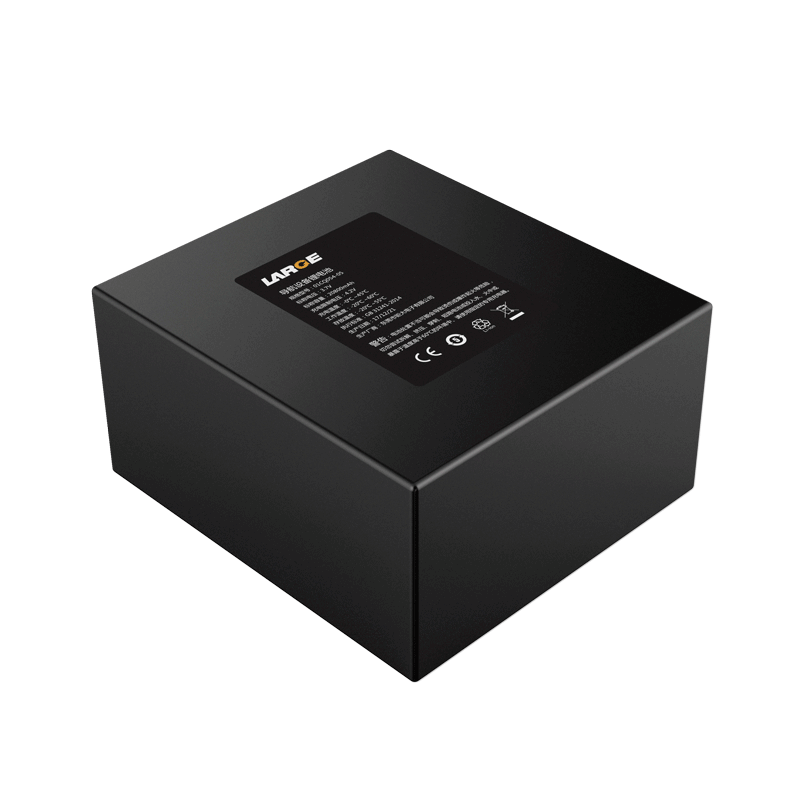

Custom Lithium Ion Battery Pack

3.7V 20800mAh 18650 lithium ion battery BIC battery for navigation equipment

  • Model number:01CQ054-05

  • Nominal voltage:3.7V

  • Nominal capacity:20800mAh

  • Battery cell:18650/3.7V/2600mAh

  • Dimension:75*68*38mm(Max)

  • Application:navigation equipment, testing equipment

Product Detail

Product number: 01CQ054-05

Cell model:18650/3.7V/2600mAh

Battery specification: 18650-1S8P/3.7V/20800mAh

Nominal voltage:3.7V

Nominal capacity:20800mAh

Charging voltage: 4.2V

Charging current: ≤2000mA

Discharging current: 2000mA

Instant discharging current: 3.0A

End-off voltage: 3.0V

Internal resistance: ≤200mΩ

Battery weight: 380g

Product dimension: 75*68*38mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection and overcurrent protection.


Application: navigation equipment, testing equipment

*
*
*
