Custom Lithium ion Battery Pack

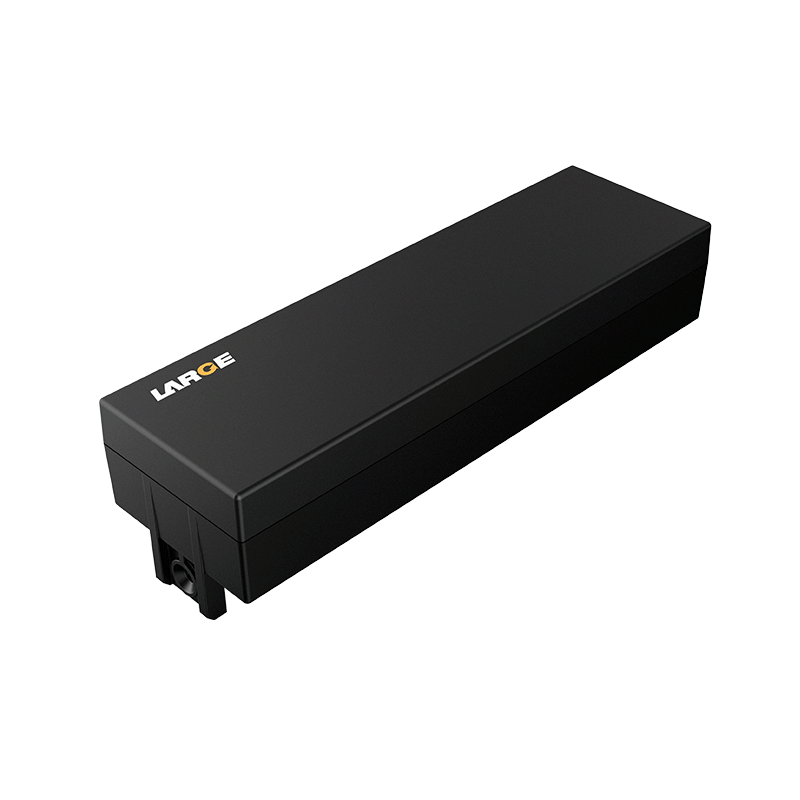

18650 14.4V 2.1Ah Lithium Ion Battery LG Battery for Lottery Printer

  • Model number:37DZ033-01

  • Nominal voltage:14.4V

  • Nominal capacity:2100mAh

  • Battery cell:18650 3.6V/2.1Ah

  • Dimension:37*41*135 mm(Max)

  • Application:backup battery of lottery printer

Product Detail

Product number: 37DZ033-01

Cell model:18650 3.6V/2.1Ah

Battery specification: 4S1P/14.4V/2.1Ah

Nominal voltage:14.4V

Nominal capacity:2.1Ah

Charging voltage: 16.8V

Charging current: ≤1A

Discharging current: 10A

Instant discharging current: 30A

End-off voltage: 11V

Internal resistance: ≤150mΩ

Battery weight: 200g

Product dimension: 37*41*135 mm(Max)

Charging temperature:-20~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~45 ℃

Temperature protection: 65℃±5℃

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: backup battery of lottery printer


Product features

1. 5C discharge

2. Temperature protection

3. Battery pack has good security and long cycle life.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
