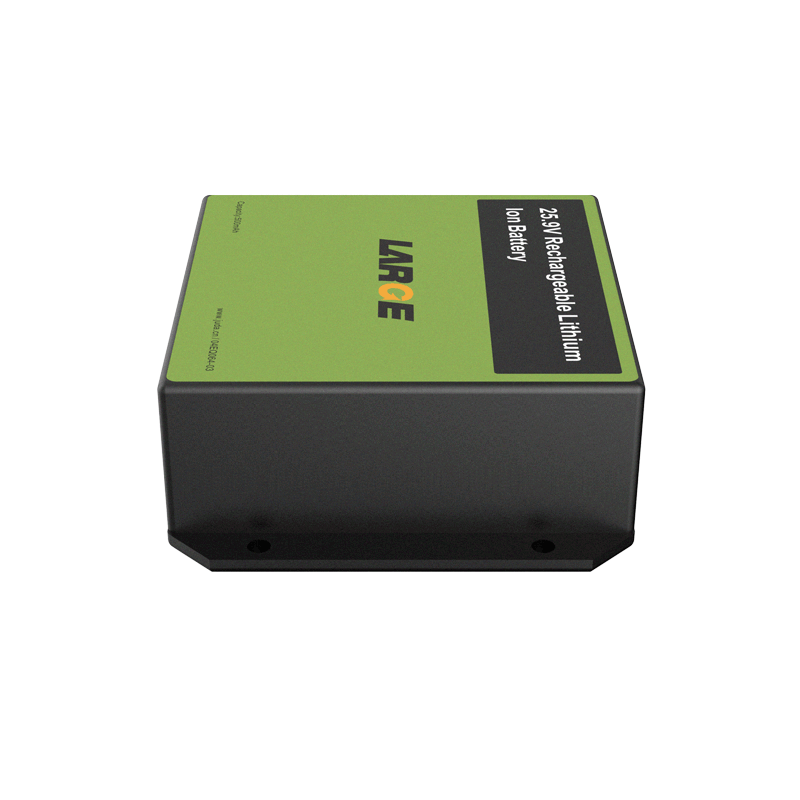

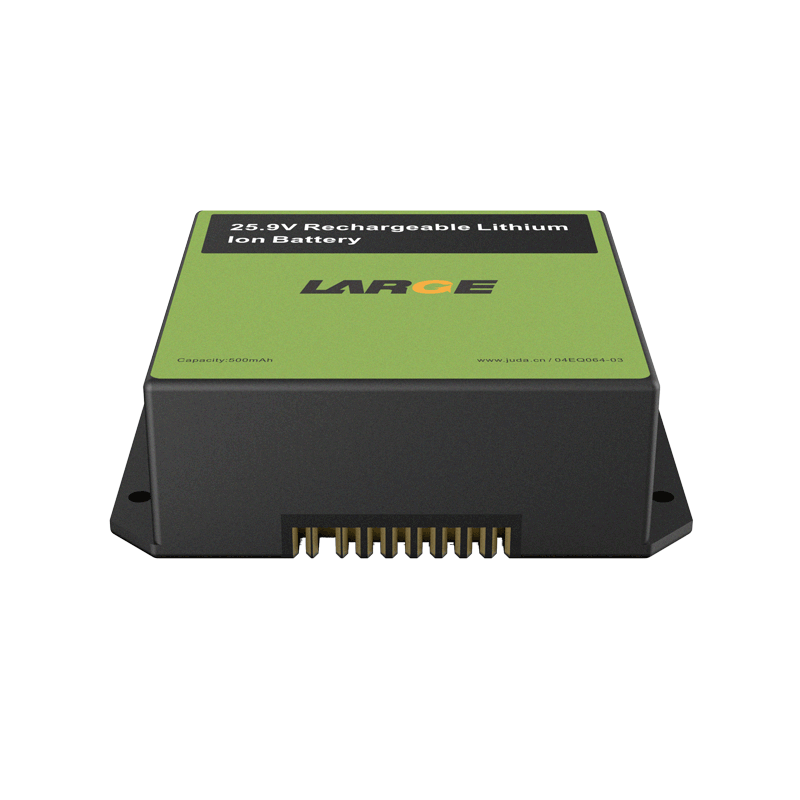

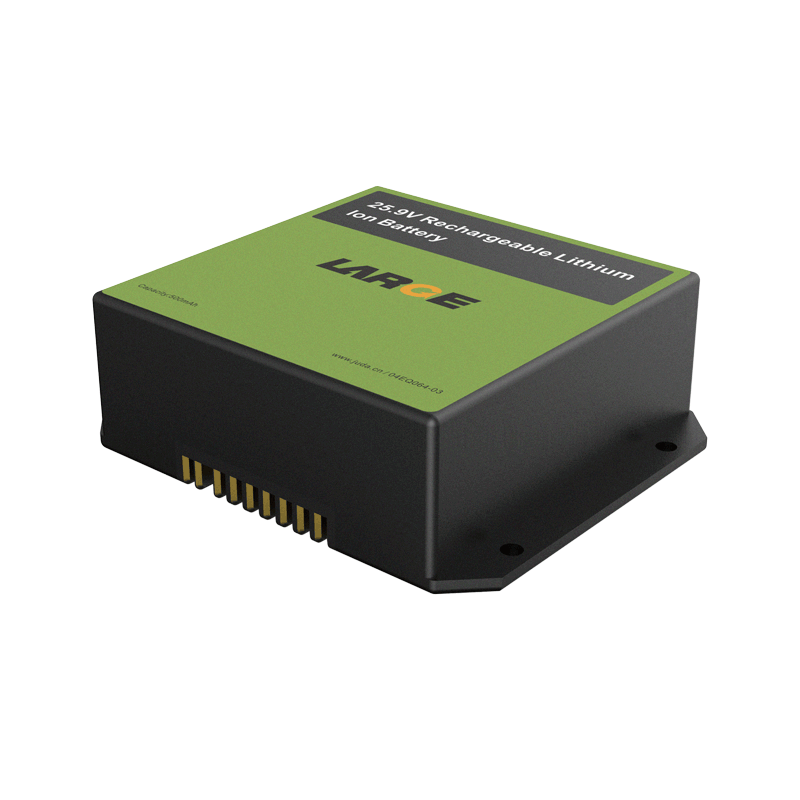

Custom Lithium ion Battery Pack

25.9V 500mAh Low Temperature Battery for Military Aircraft Instrument

  • Model number:04EQ064-03

  • Nominal voltage:25.9V

  • Nominal capacity:500mAh

  • Battery cell:254545/3.7V/500mAh

  • Dimension:50×50×20(Max)

  • Application:military

Product Detail

Product number: 04EQ064-03

Cell model:254545/3.7V/500mAh

Battery specification: LA254545/7S1P/500mAh/25.9V

Nominal voltage:25.9V

Nominal capacity:500mAh

Charging voltage: 29.4V

Charging current: ≤500mA

Discharging current: 0.5A

Instant discharging current: 1A

End-off voltage: 19.25V

Internal resistance: ≤150mΩ

Battery weight: 500g

Product dimension: 50×50×20(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60℃

Storage temperature: -20~40℃

Battery case: aluminium alloy

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field:military


Product features

1. Dustproof and shockproof: fill in the shockproof structure inside the aluminium alloy housing and accept high impact to satisfy the requirements of good security and nice reliability.

2. Reliable connection: adopt aviation connector, which is fast, safe and reliable.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
