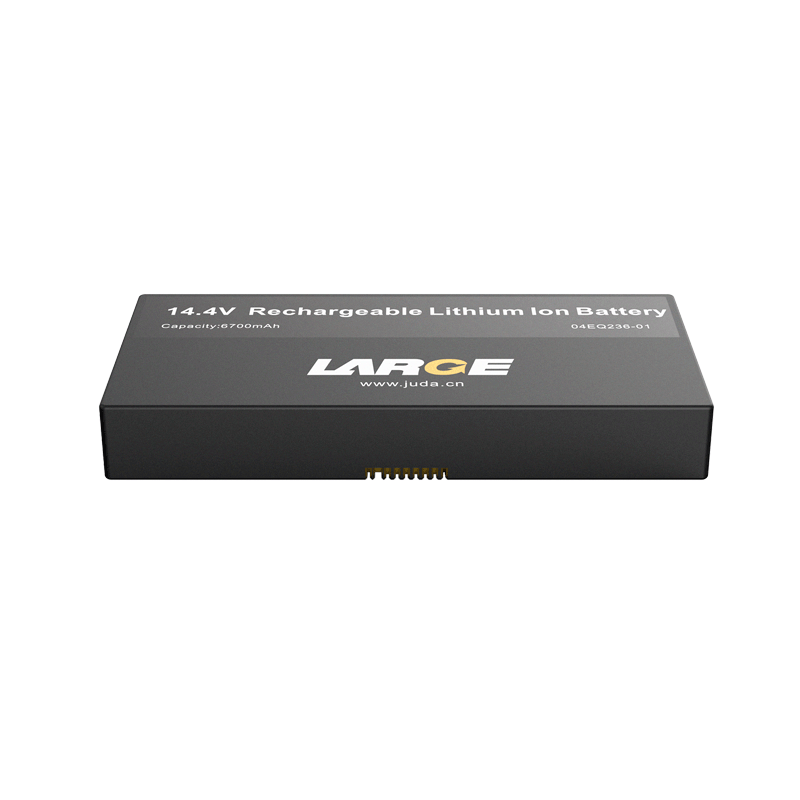

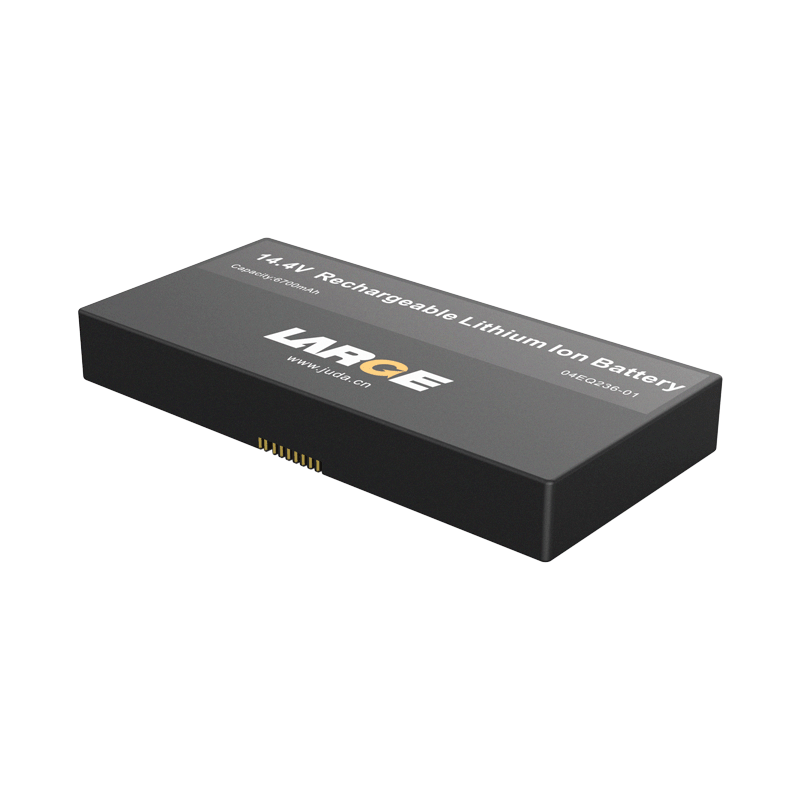

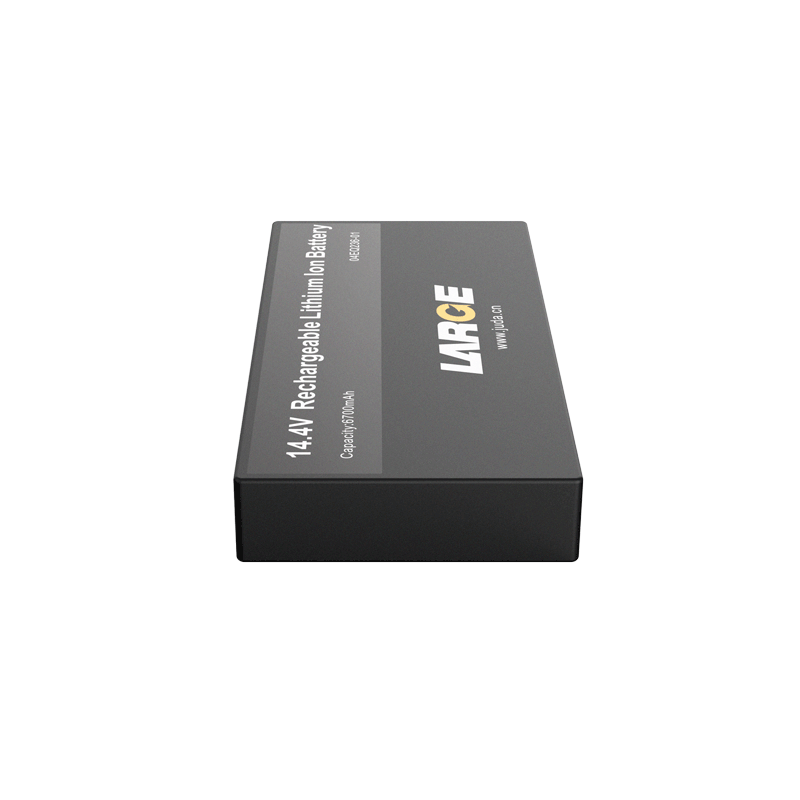

Custom Lithium Ion Battery Pack

18650 3.6V 6.7Ah Battery Samsung Battery for Medical Device

  • Model number:04EQ236-01

  • Nominal voltage:14.4V

  • Nominal capacity:6700mAh

  • Battery cell:18650/3.6V/6.7Ah

  • Dimension:165×80×22(Max)

  • Application:medical device

Product Detail

Product number: 04EQ236-01

Cell model:18650/3.6V/6.7Ah

Battery specification: 18650/4S2P/14.4V/6.7Ah

Nominal voltage:14.4V

Nominal capacity:6.7Ah

Charging voltage: 16.8V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 6.7A

End-off voltage: 10V

Internal resistance: ≤250mΩ

Battery weight: 600g

Product dimension: 165×80×22(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -20~20 ℃

Temperature protection:/

Battery case: PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: medical device


Product features

1. Shock-resistant and waterproof: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

2. Reliable connection: apply square sheet, which is efficient, safe and reliable.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
