Custom Lithium ion Battery Pack

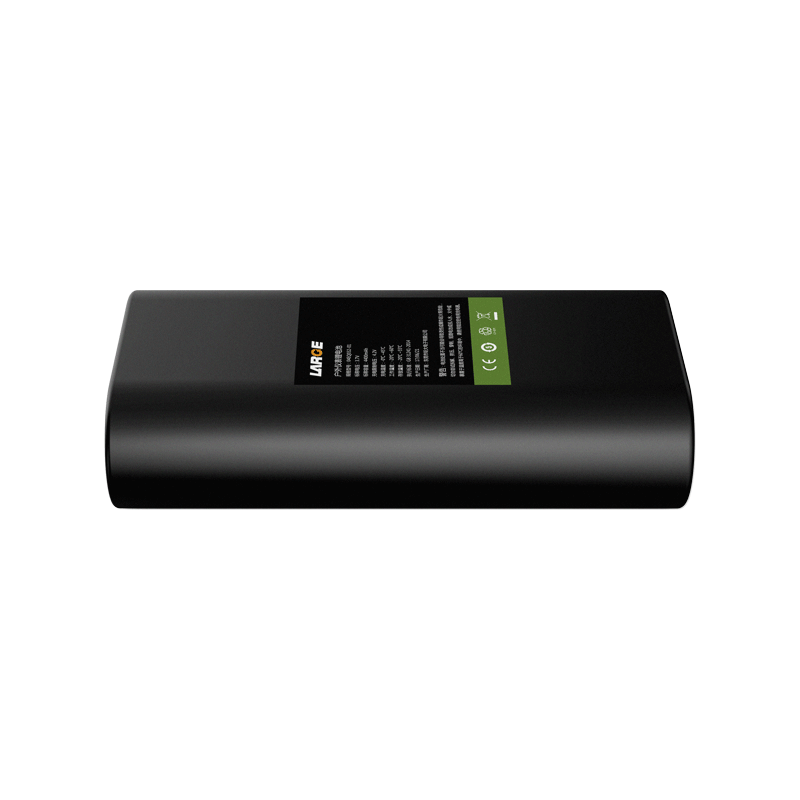

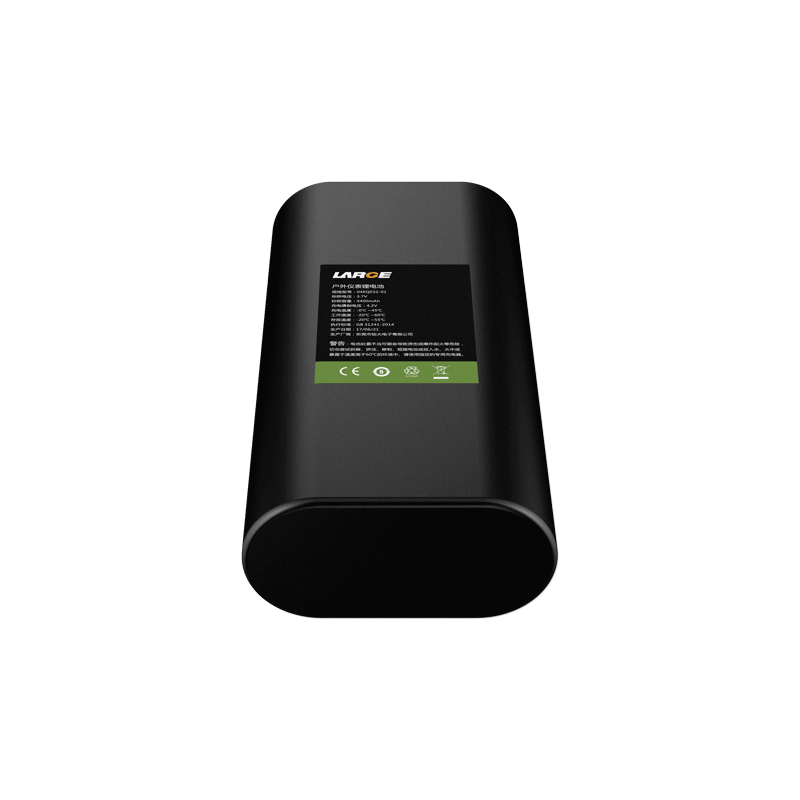

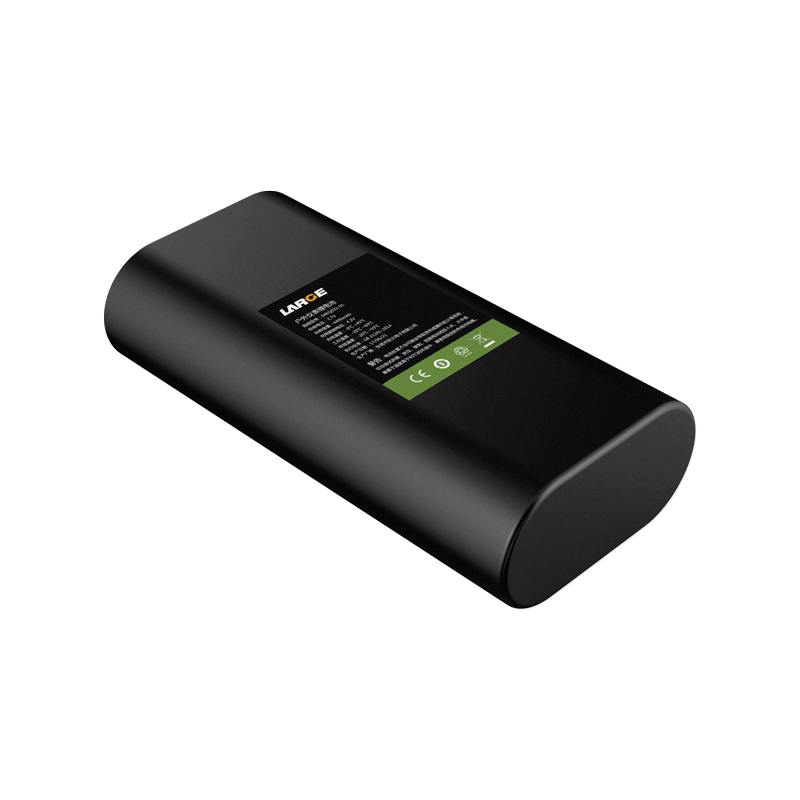

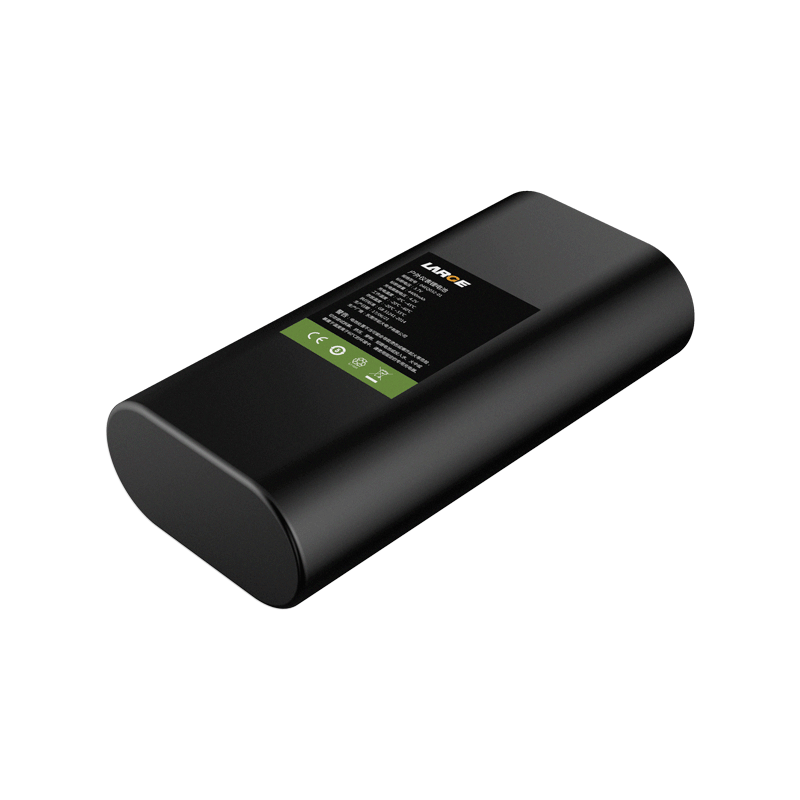

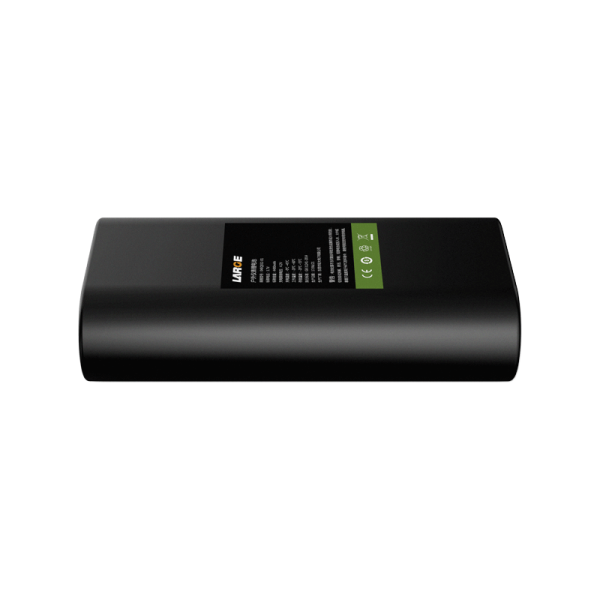

18650 3.7V 4400mAh Lithium Ion Battery for Outdoor Instrument

Product Detail

Product number: 04EQ032-01

Cell model:18650/3.7V/2200mAh

Battery specification: 18650/1S2P/3.7V/4400mAh

Nominal voltage:3.7V

Nominal capacity:4400mAh

Charging voltage: 4.2V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 3A

End-off voltage: 2.5V

Internal resistance: ≤200mΩ

Battery weight: 95g

Product dimension: 40×20×80(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60℃

Storage temperature: -20~25℃

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: outdoor instrument
