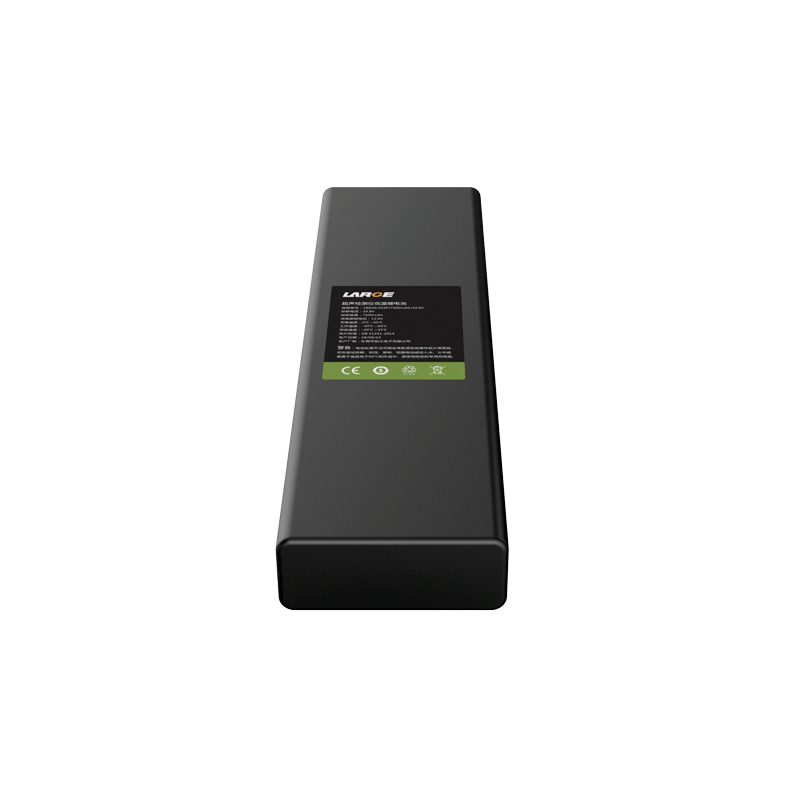

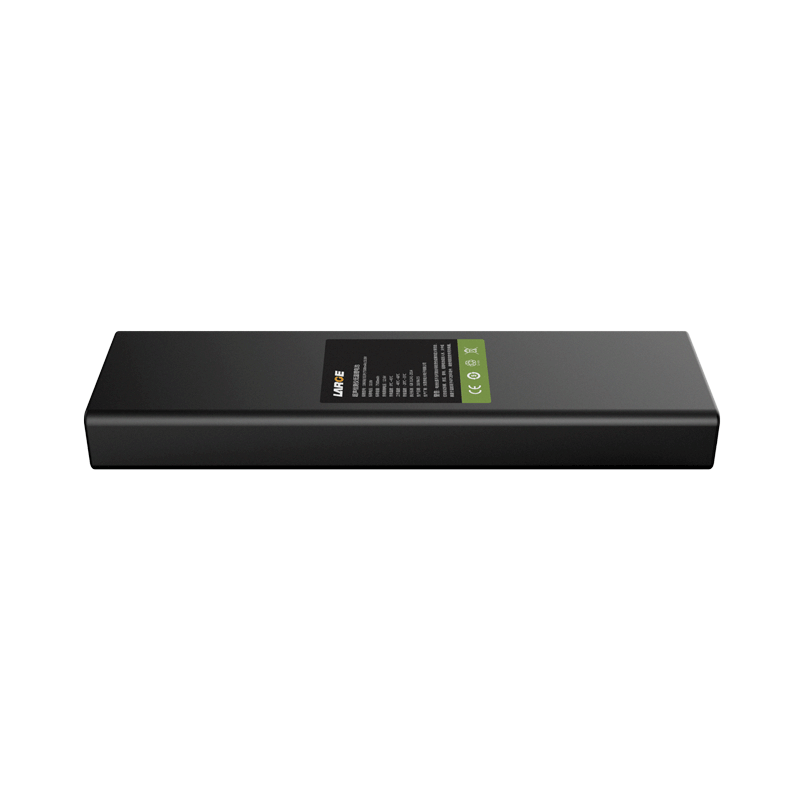

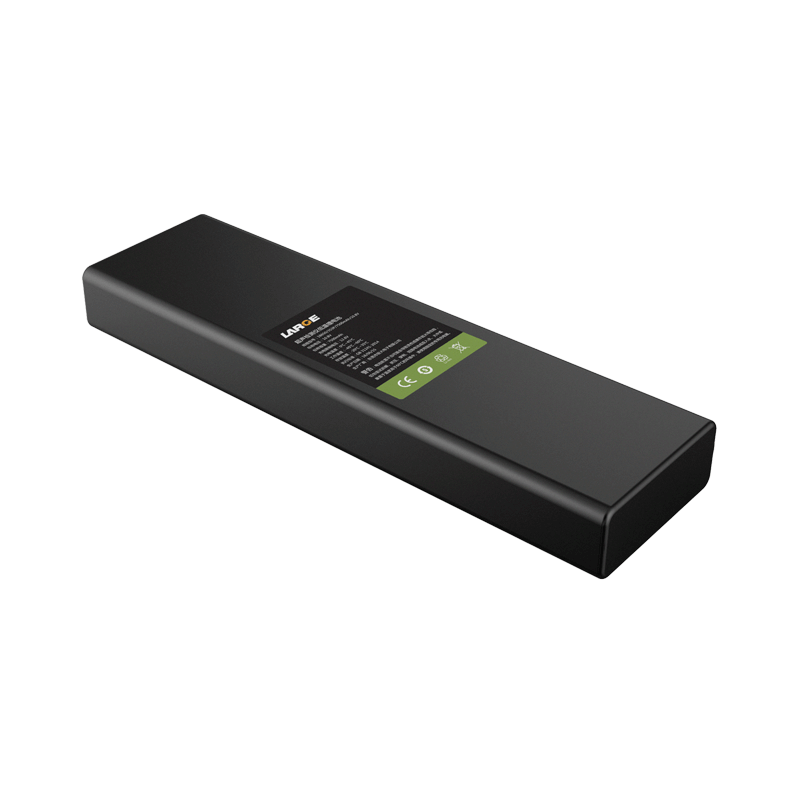

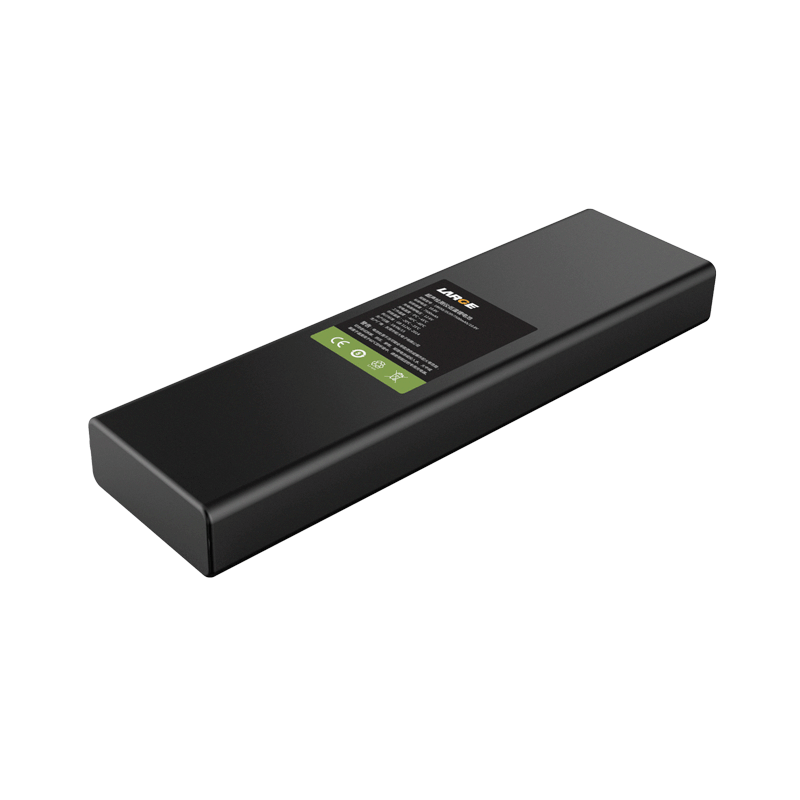

18650 10.8V 7500mAh Lithium Ion Battery for Portable Ultrasonic Medical Equipment

Product Detail

Product number: 08AQ543-17T

Cell model:18650/2500mAh/3.6V

Battery specification: 18650/3S3P/7500mAh/10.8V

Nominal voltage:10.8V

Nominal capacity:7500mAh

Charging voltage: 12.6V

Charging current: ≤3.7A

Discharging current: 1.5A

Instant discharging current: 12A

End-off voltage: 7.5V

Internal resistance: ≤330mΩ

Battery weight: 450g

Product dimension: 198.5*56*22.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -20~35 ℃

Battery case: no shell, only PVC package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: portable ultrasonic medical equipment

Product features

1. Data communication management: adopt TI-SMBus software management chip, precise SMBus data transmission and accurate temperature control so as to try our best to eliminate the security risks.

2. The battery pack has good security, nice discharge performance and long cycle life.

3. Fast connect: apply push-pull self-locking aviation connector, which is efficient, safe and reliable.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
