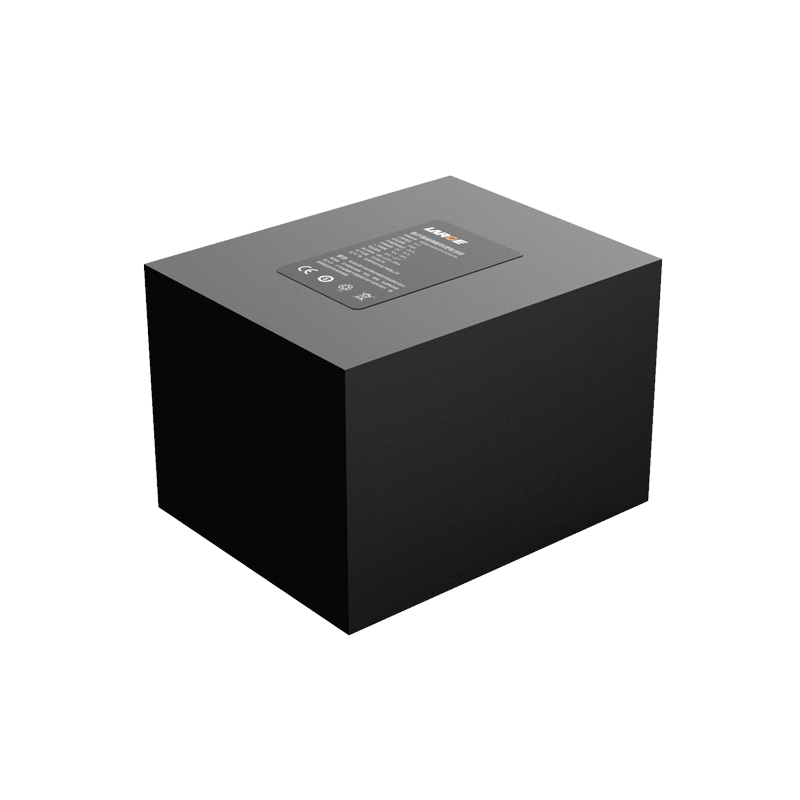

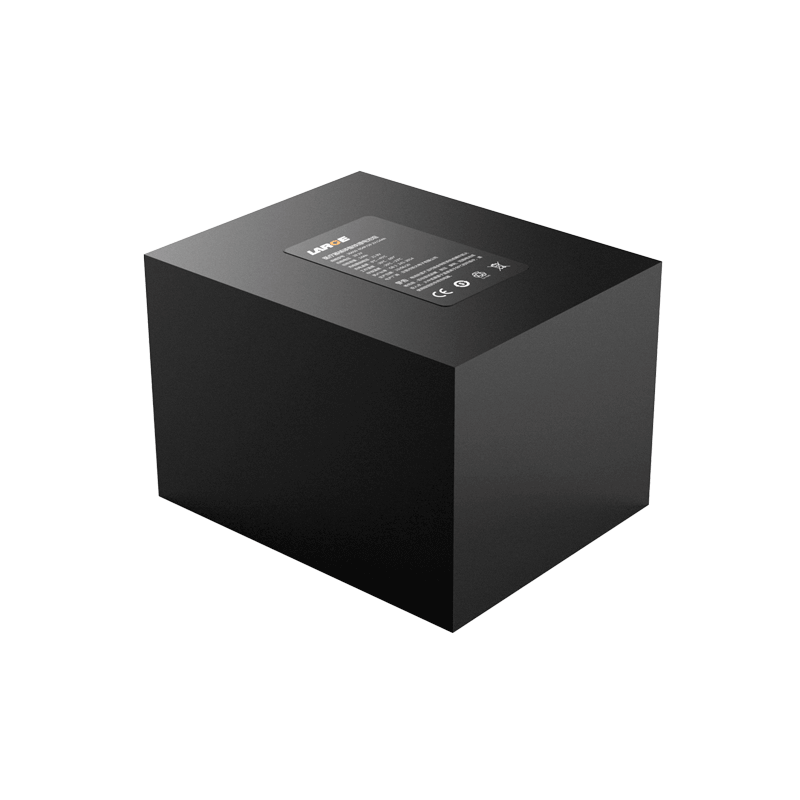

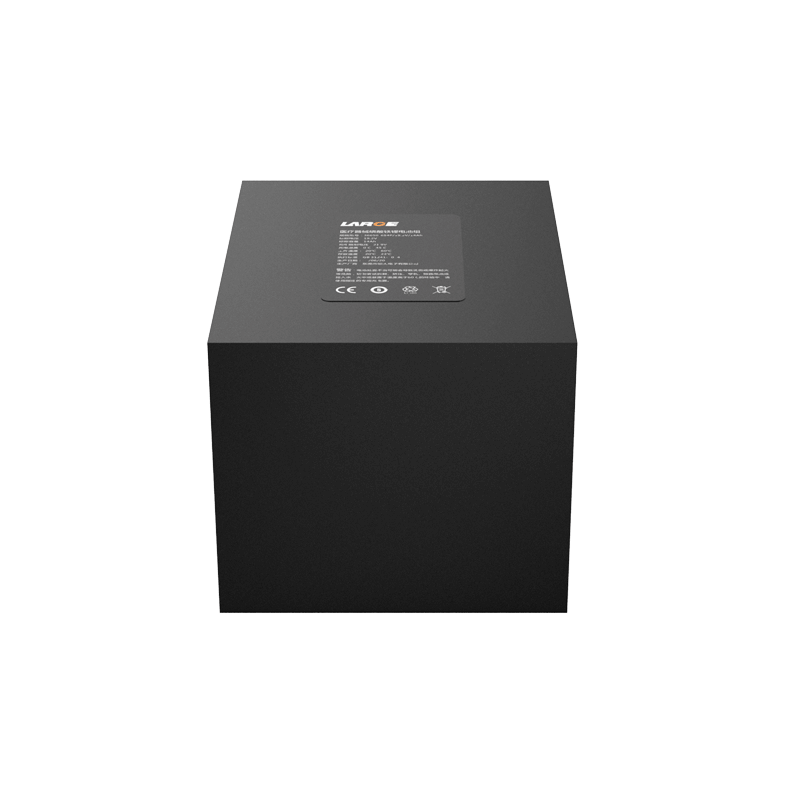

26650 19.2V 14Ah LiFePO4 Battery for Medical Device with 485 Communication

Product Detail

Product number: 30AQ188-03

Cell model:26650-35A/3.2V/3.5Ah

Battery specification: 36650-6S4P/19.2V/14Ah

Nominal voltage:19.2V

Nominal capacity:14Ah

Charging voltage: 21.9V

Charging current: ≤5A

Discharging current: 5A

Instant discharging current: 10A,3~4S

End-off voltage: 15V

Internal resistance: ≤150mΩ

Battery weight: 2Kg

Product dimension: 140*110*95(mm)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20℃~+23℃(≤12months)

Battery case: PVC plain packaging

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and 485 communication, etc.

Application field: medical device backup battery


Product features

1. Low self-discharge.

2. The battery pack has good security and long cycling life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4. Battery shape can be customized, and the battery has anti - reverse - connection function.

5. It can accurately detect battery information with communication.

*
*
*
