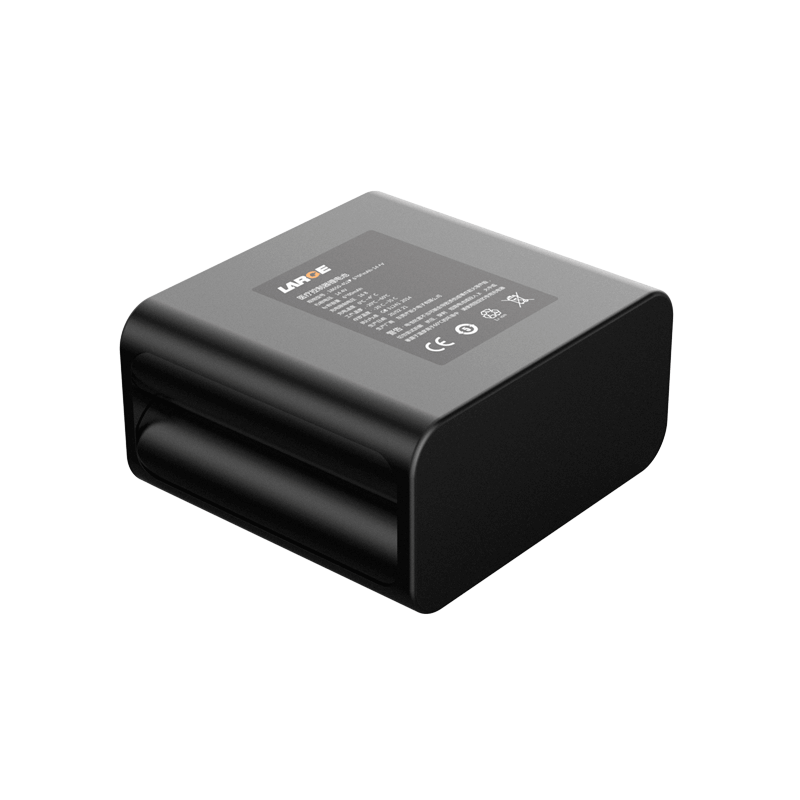

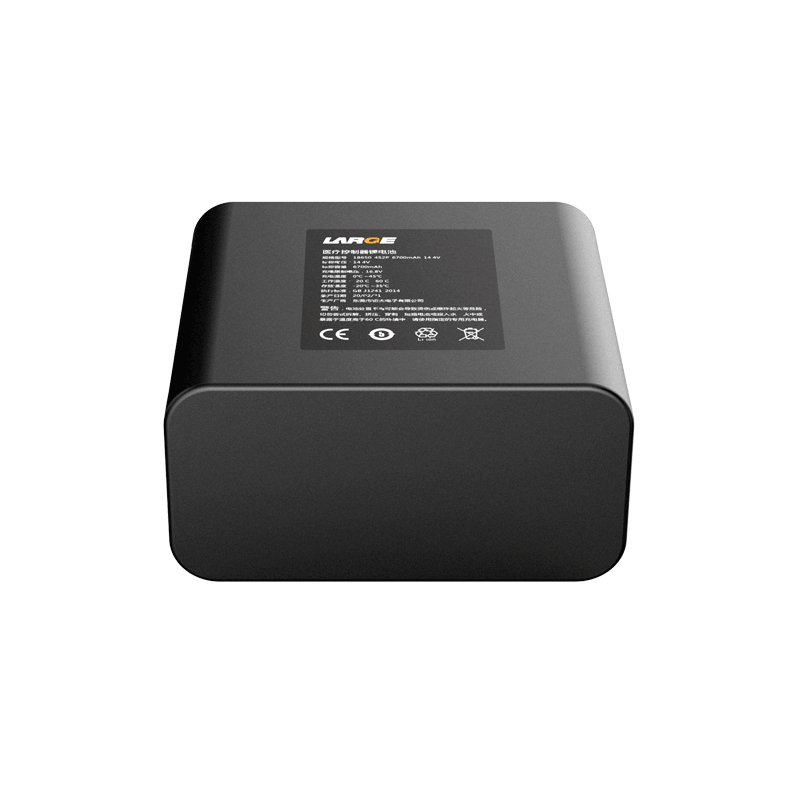

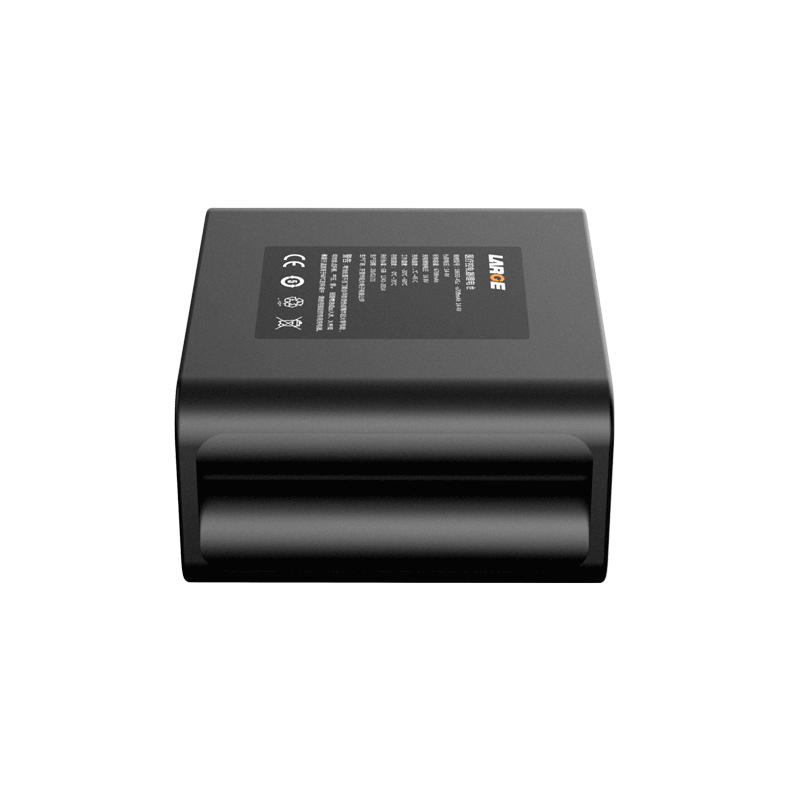

6.7Ah 14.4V Samsung Battery 18650 Battery for Medical Controller

Product Detail

Product number: 06DQ054-02T

Cell model:18650-3350mAh-3.6V

Battery specification: 18650-4S2P-6.7Ah-14.4V

Nominal voltage:14.4V

Nominal capacity:6.7Ah

Charging voltage: 16.8V

Charging current: ≤3.0A

Discharging current: 1.3A

Instantaneous discharge current: 3A

End-off voltage: 6.0V

Internal resistance: ≤350mΩ

Battery weight: 410g

Product dimension: 72*37.5*75mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery package: no shell, PVC packaging

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: portable medical controller, portable medical device


Product features

PVC package is simple and environmental friendly, and can be conveniently fixed in the main engine warehouse.

National standard conductor output mode uses solder joint. The welding can increase the conductive reliability.

Imported protection chip and low internal resistance FETMOSF have high stability, high precision monitoring and precise control, so as to eliminate the security risks.

The battery pack has good security, nice discharge performance and long cycle life.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
