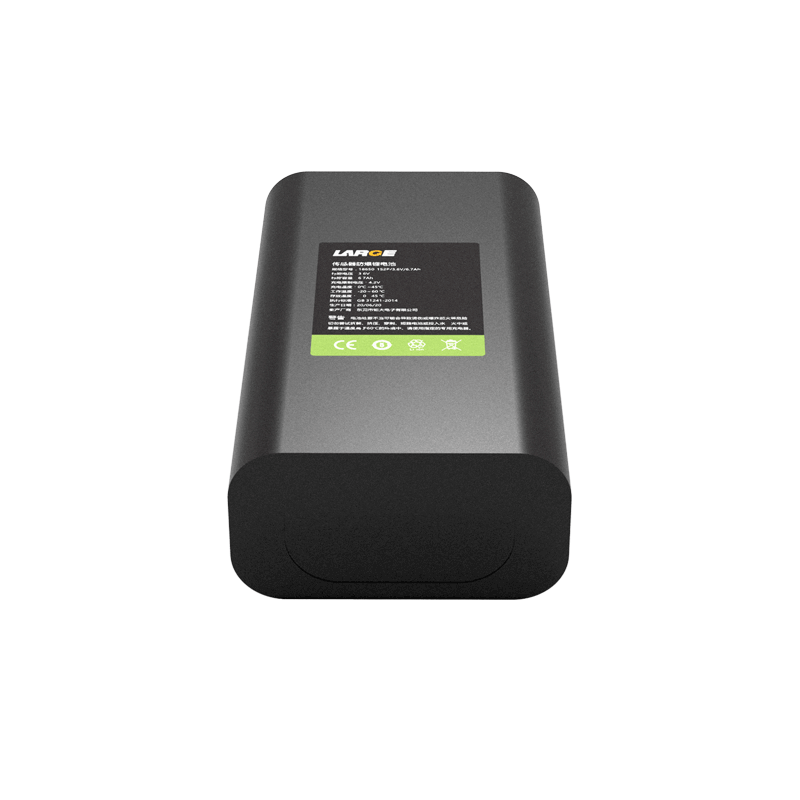

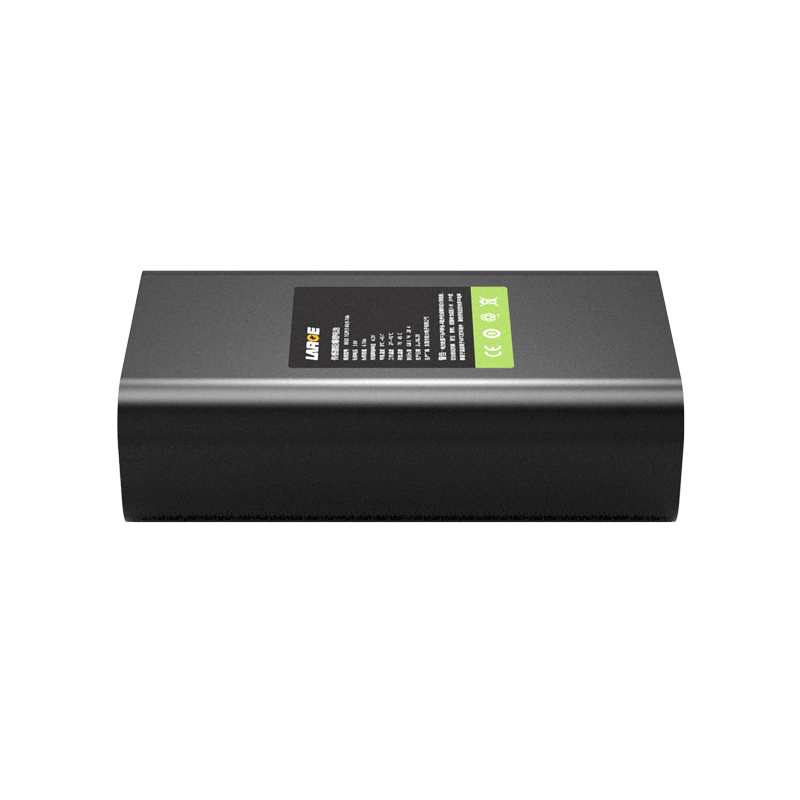

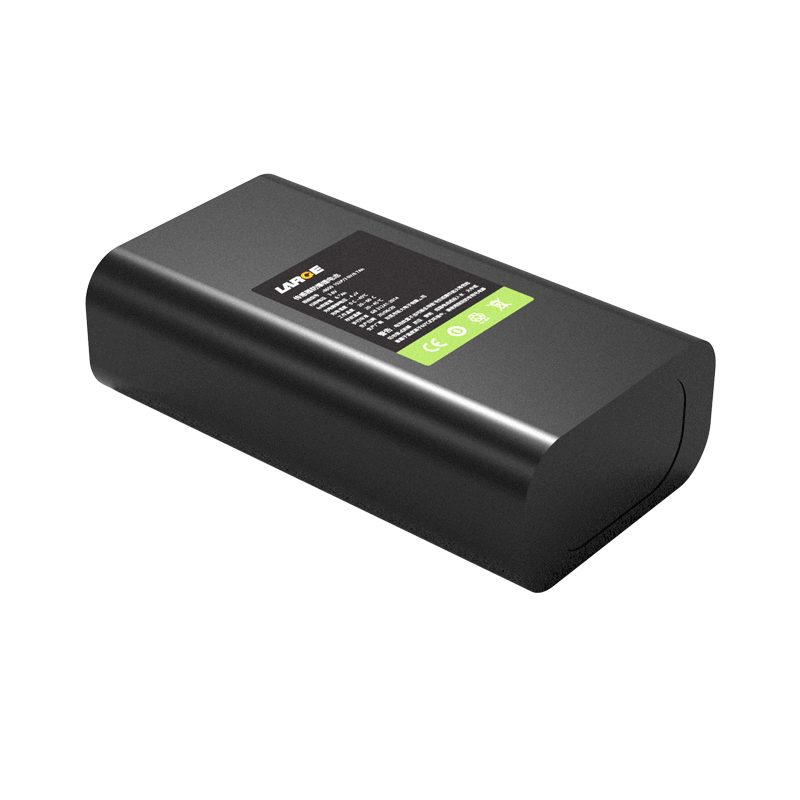

18650 3.6V 6.7Ah Sanyo Battery Explosion-proof Battery for Sensor

Product number: 33DZ010-01

Cell model：18650/3.6V/3350mAh

Battery specification: 18650-1S2P/3.6V/6.7Ah

Nominal voltage：3.6V

Nominal capacity：6.7Ah

Charging voltage: 4.2V

Charging current: ≤2A

Discharging current: ≤1.6A

Instant discharging current: less than 3A

End-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 100g

Product dimension: 21.5*38*68mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～45℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, over temperature, etc.

Application field: sensor

Product features

1. Intrinsic safety explosion-proof T4

2. Low self-discharge

3. The battery pack has good security and long cycle life.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
