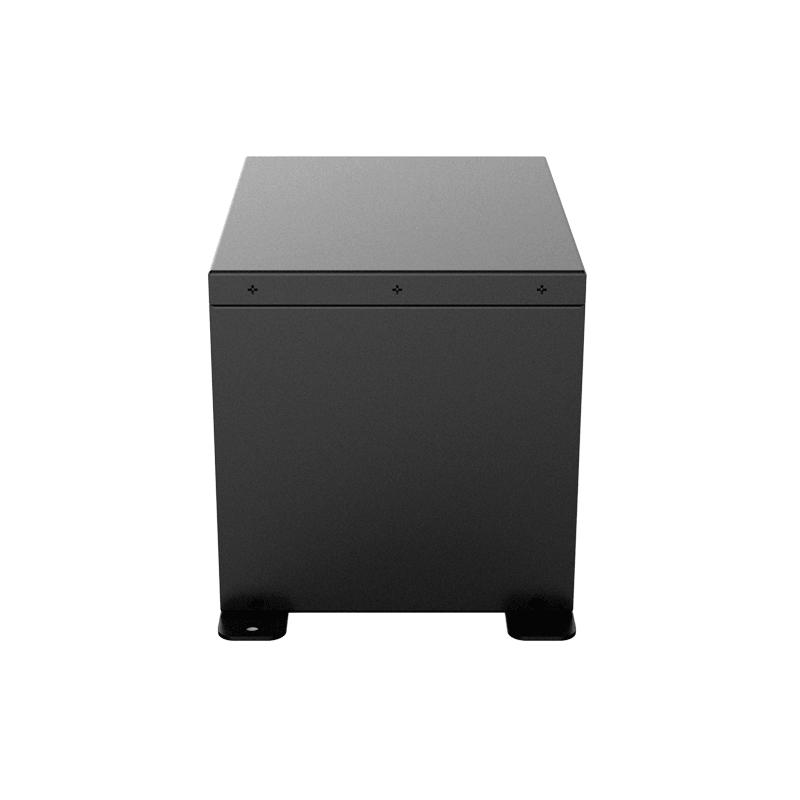

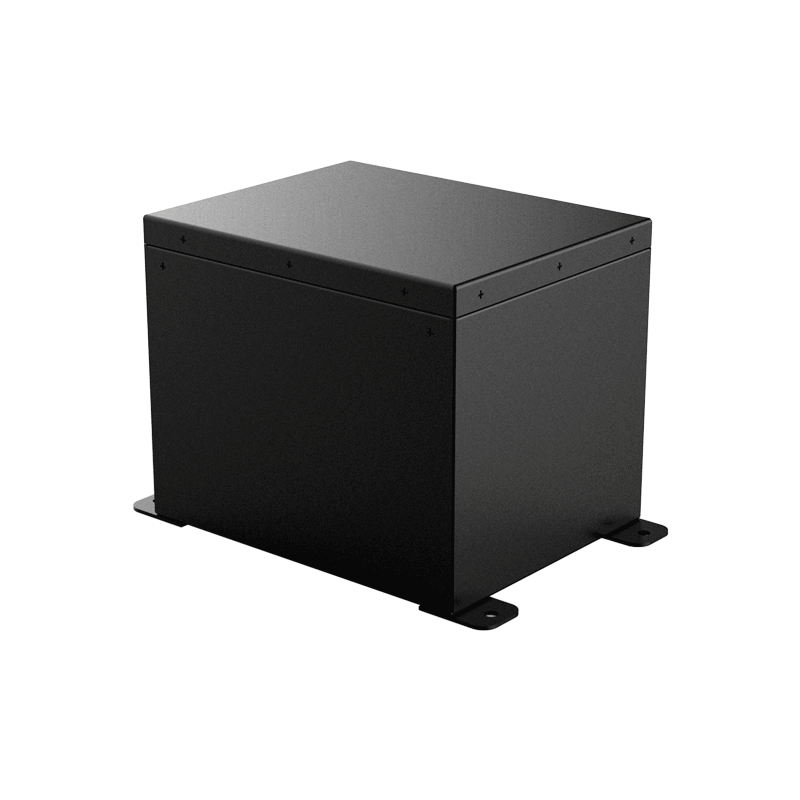

26650 25.6V 9.9Ah LiFePO4 Battery Pack
Product Number:
34AQ067-02
Nominal voltage:
25.6V
Nominal capacity:
9.9Ah
Battery Configuration:
26650-8S3P
Dimension:
198×157×162mm
Application:
Backup power supply

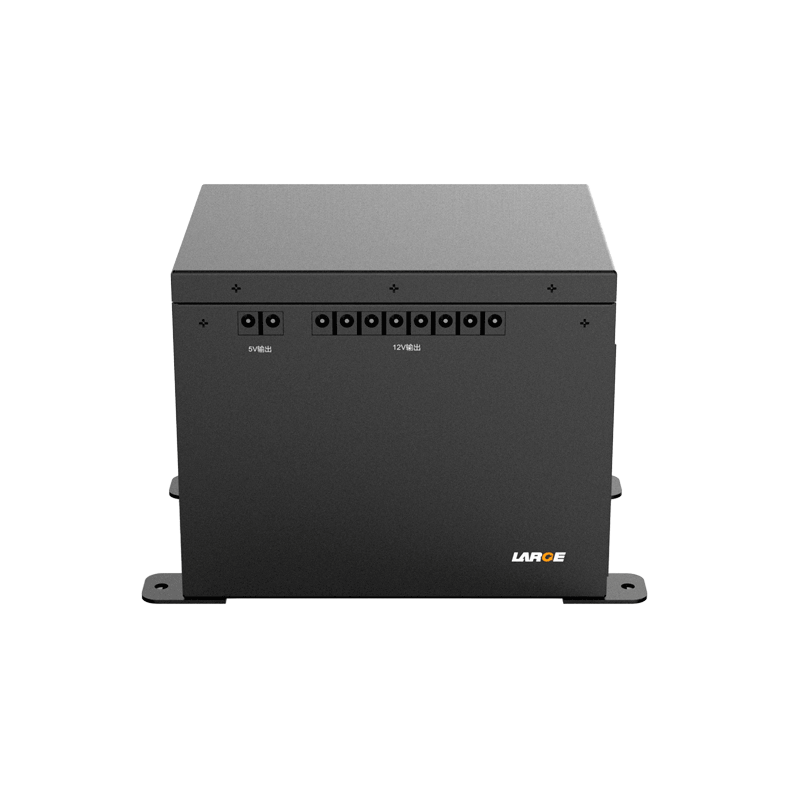

Metal housing, 485 communication, 5V/12V regulated output
Product Overview
This battery is designed for emergency backup power systems, providing stable output for critical equipment during outages. With smart communication management and multi-output capability, it ensures reliable operation and long-term energy support.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 34AQ067-02 |
| Cell Model | 26650/3.2V/3300mAh |
| Battery Configuration | 26650-8S3P |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 9.9Ah |
| Rated Energy | 253.44Wh |
| Charging Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Standard Charging Current | ≤4A |
| Standard Discharge Current | 10A |
| Max Continuous Discharge Current | 10A |
| Internal Resistance | ≤250mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～35℃ |
| Dimensions | 198×157×162mm (±2mm) |
| Weight | 3.6kg |
| Output Type | 5V / 12V regulated output |
| Battery Case | Metal Plate (Military Grade) |
| Communication Protocol | 485 Communication |
| Protection System | Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, communication function |
Application Background
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
