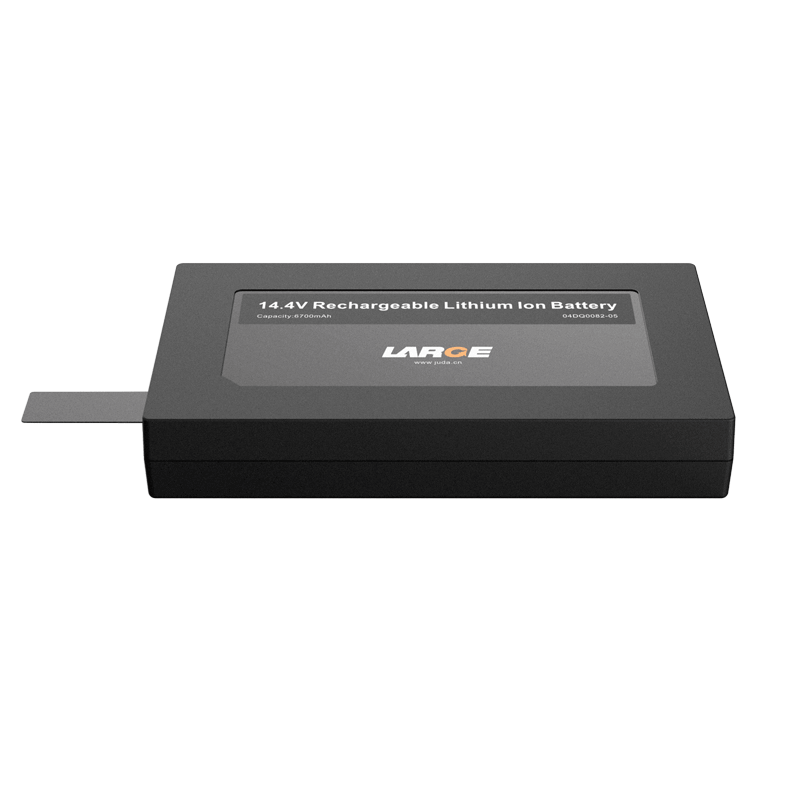

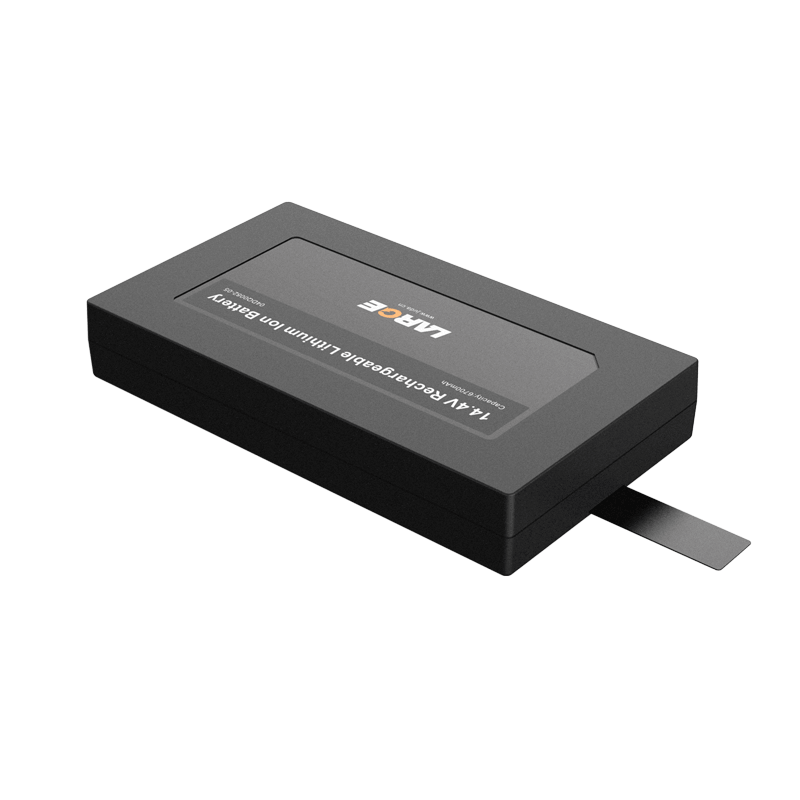

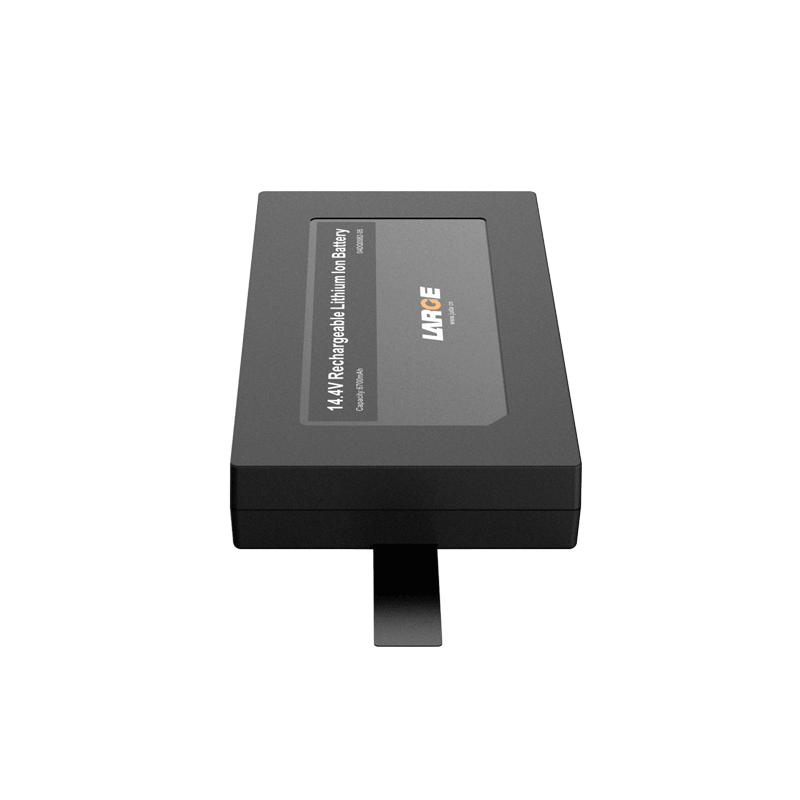

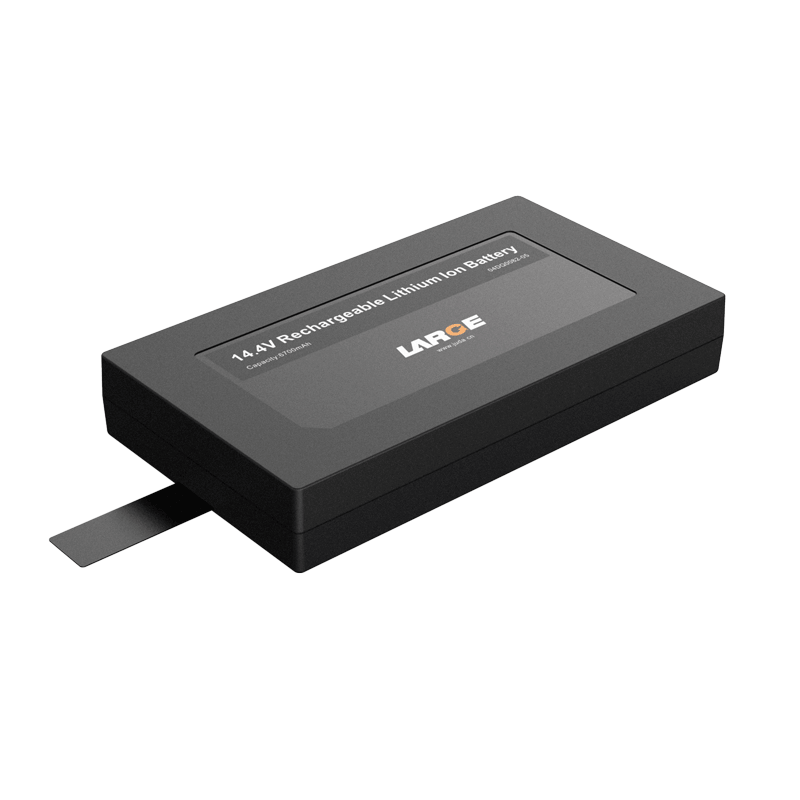

18650 14.4V 6700mAh Samsung Battery Ternary Battery for Medical Ventilator

Product Detail

Product number: 04DQ0082-05

Cell model:18650/3350mAh/3.6V-SDI

Battery specification: 18650-4S2P/6700mAh/14.4V

Nominal voltage:14.4V

Nominal capacity:6700mAh

Charging voltage: 16.8V

Charging current: 1340mA

Discharging current:1340mA

Maximum discharging current: 3350mA

End-off voltage: 11.2V

Internal resistance: ≤120mΩ

Battery weight: 500g

Product dimension: 146.3*82.3*24.3mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~60℃ (less than a month)

Battery case: plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection ,over current protection, etc.

Application field: medical ventilator


Product features

1.Battery management: It uses TI charging management chip with high stability, high precision monitoring, precise control, temperature protection and other functions, which can eliminate the potential safety hazard to the maximum extent.

2.ABS+PC housing increases the reliability and firmness of the battery.

3.Connector plug terminal: TSD1 plug output mode is adopted to increase conductive reliability

4.Data communication management: with communication transmission, accurate data transmission, precise temperature control, which can eliminate the potential safety hazard to the maximum extent.

5.The battery pack has good security, nice discharge performance.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
