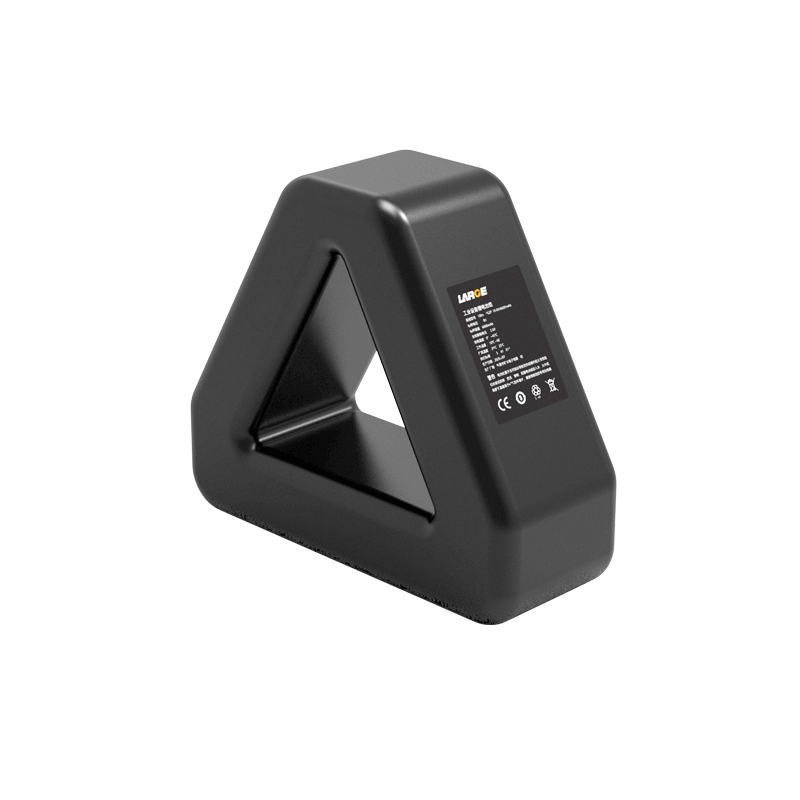

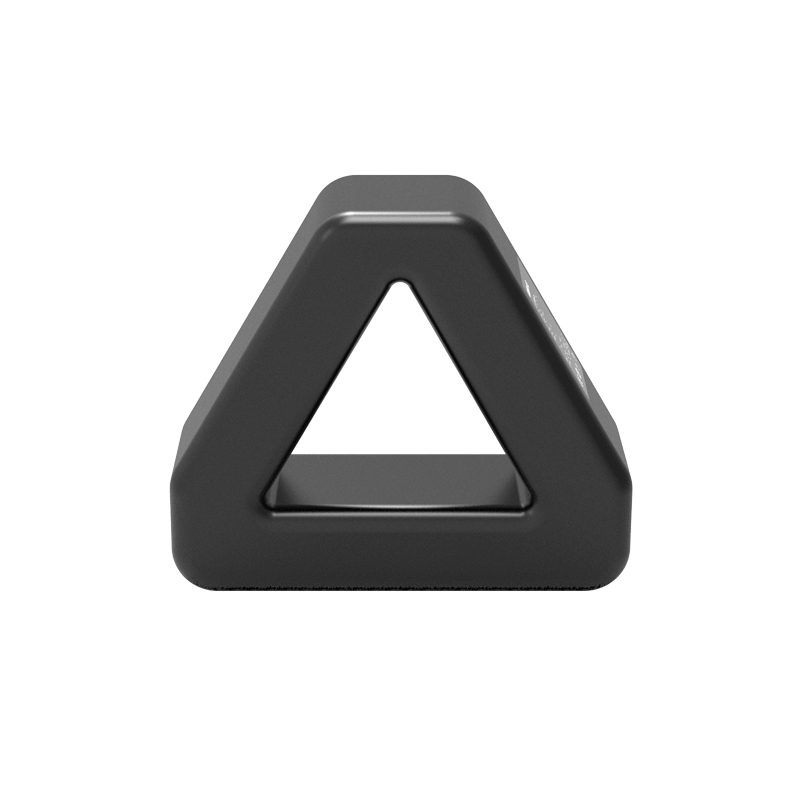

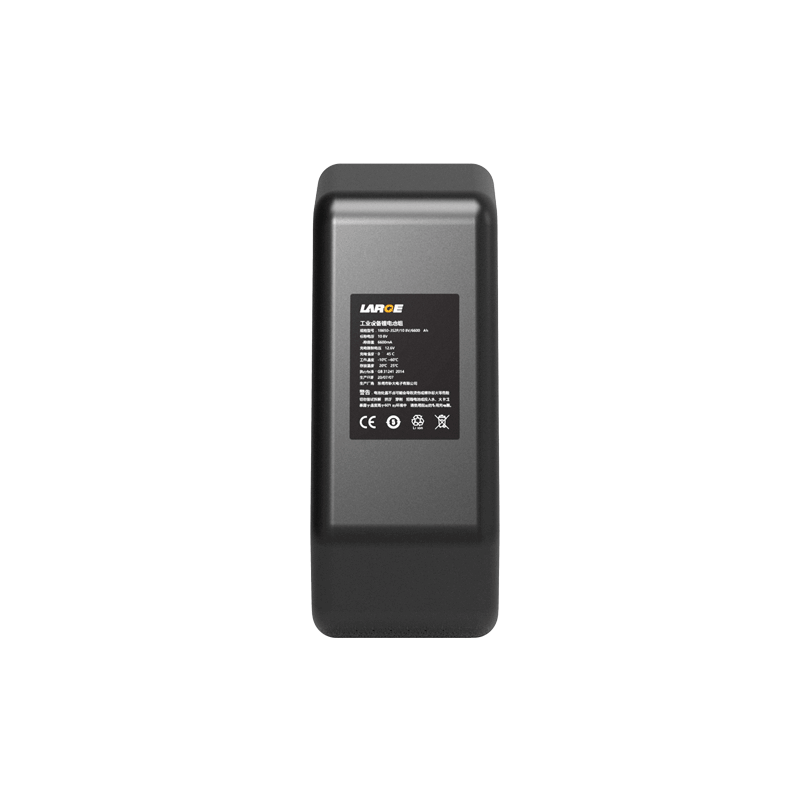

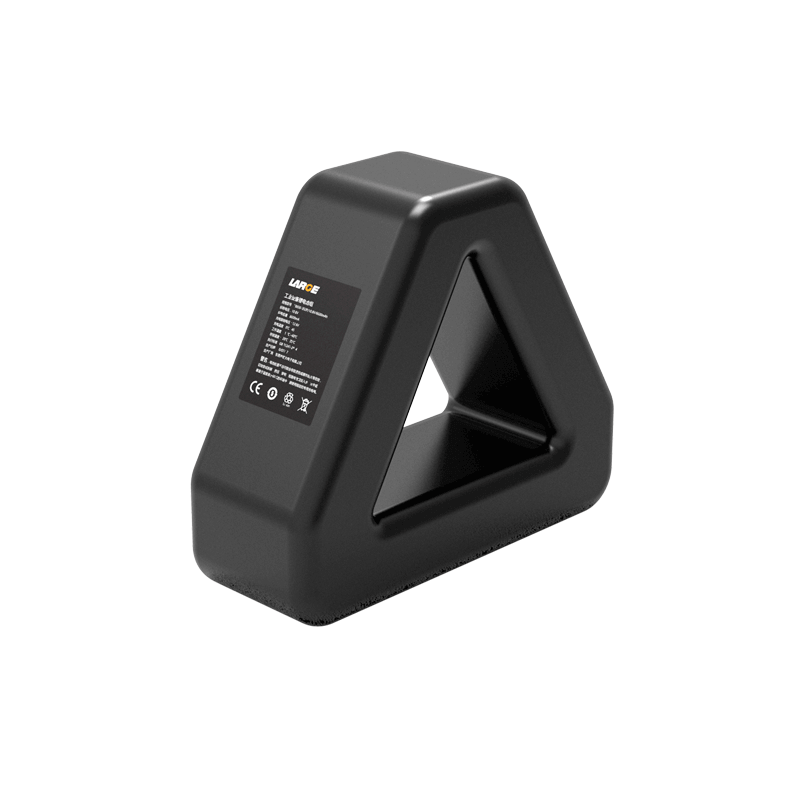

18650 10.8V 6600mAh Samsung Lithium Battery Pack for Industrial Testing Equipment With SMBUS Communication Protocol

Product number: 36AQ203-05

Cell model：INR18650-35E/3.6V/3350mAh

Battery specification: 18650-3S2P/10.8V/6600mAh

Nominal voltage：10.8V

Nominal capacity：6600mAh

Charging voltage: 12.6V

Charging current: ≤3A

Discharging current: 2A

Instant discharging current: 7A

End-off voltage: 9V

Internal resistance: ≤150mΩ

Battery weight: 320g

Product dimension: 100*87*38（mm）

Charging temperature：0～45℃

Discharging temperature: -10～60℃

Storage temperature: -20～25℃ (less than 12 month)

Battery case: PVC film

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection and SMBUS communication protocol

Application field: industrial testing equipment

Product features

1.Intelligent battery with internal multiple protection is safe and reliable.

2.Imported cell: its energy density ratio is very high.

3.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4.Special shape design meets the requirements of various special structures.
