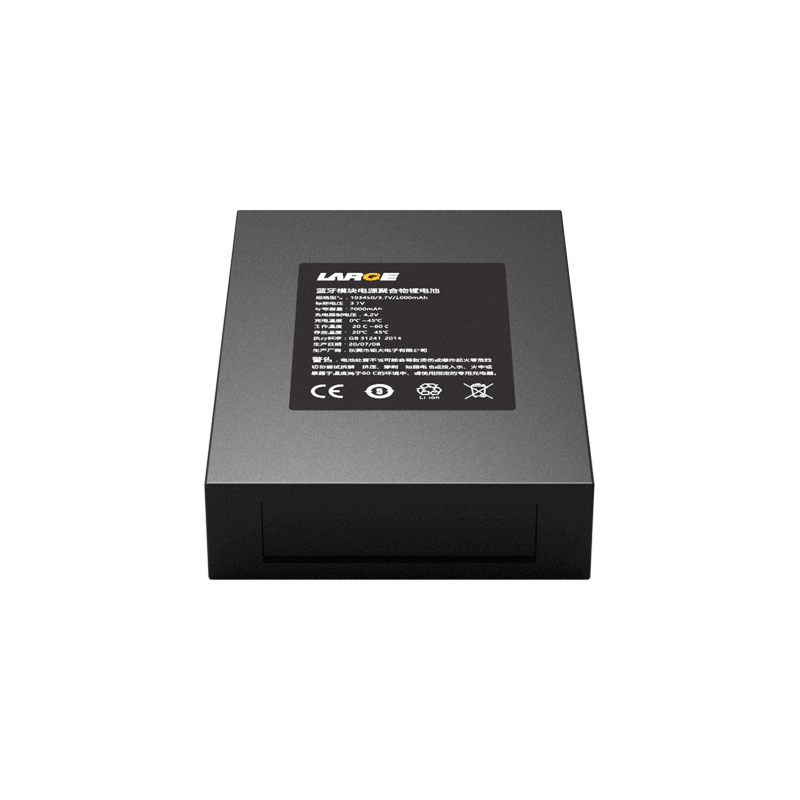

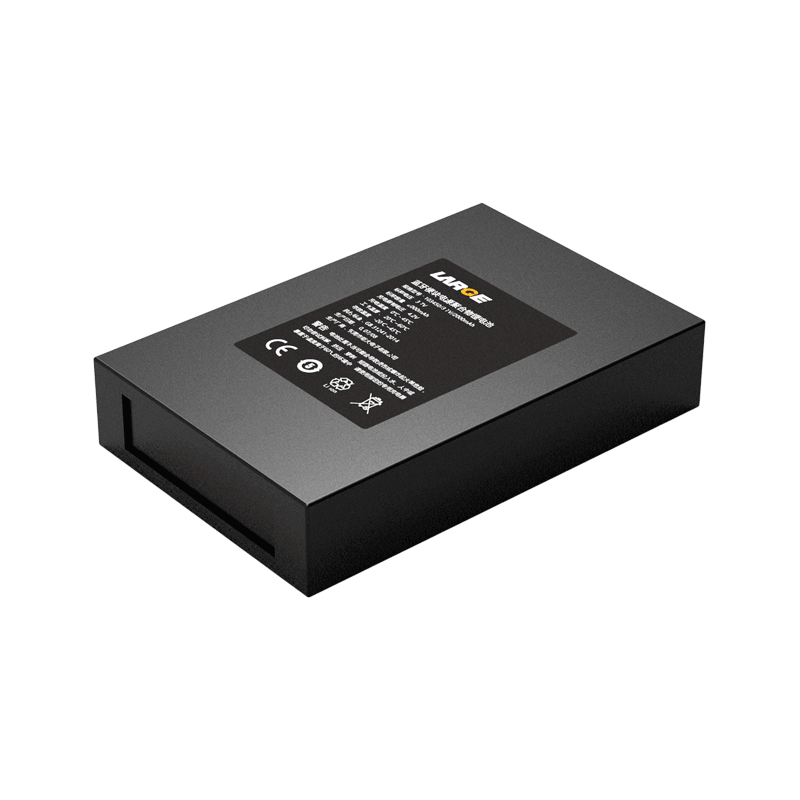

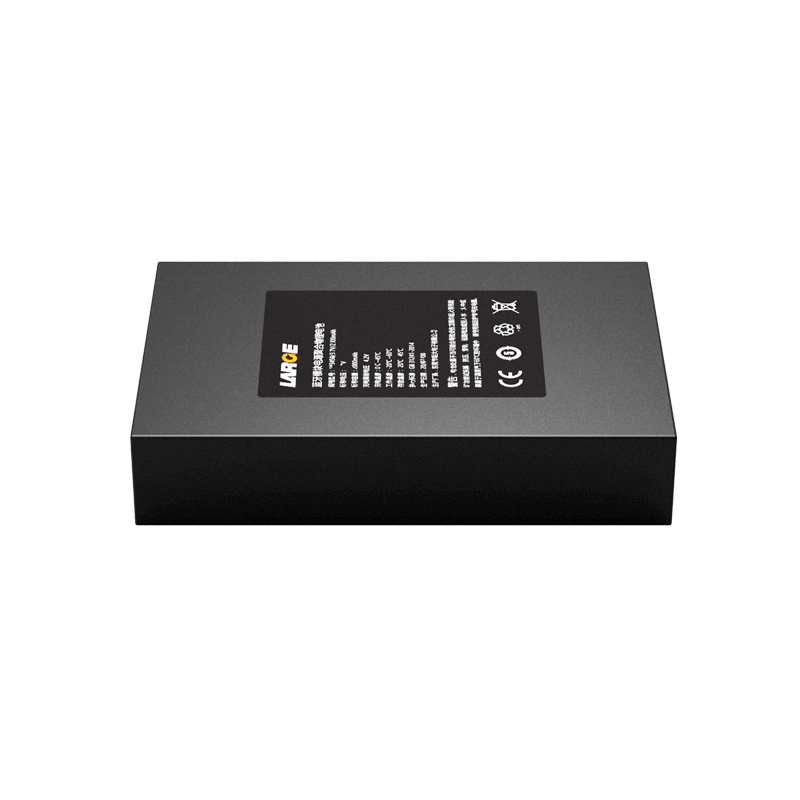

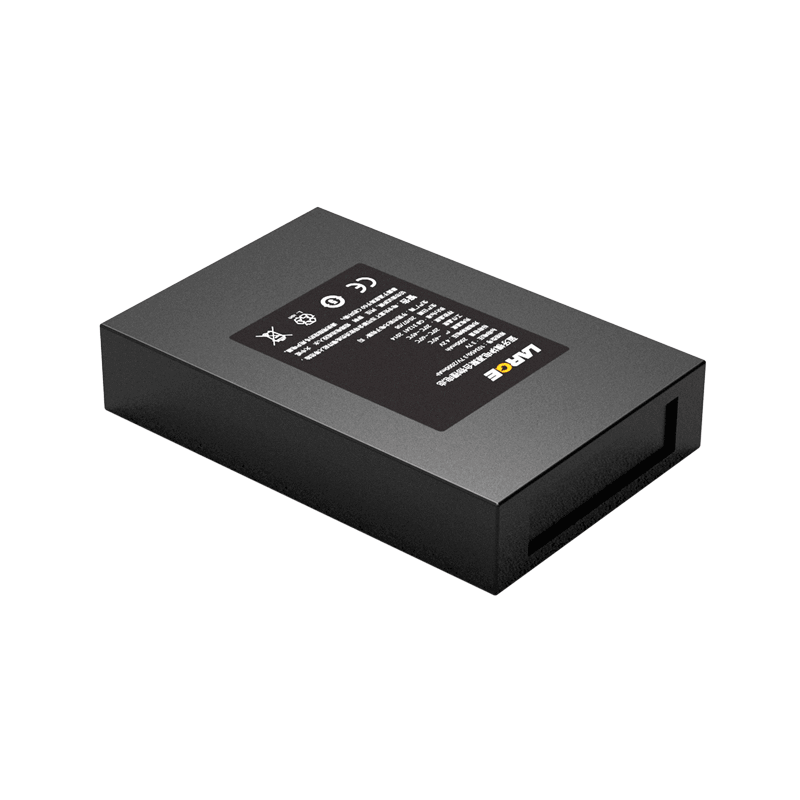

3.7V 2000mAh Lithium Polymer Battery For Bluetooth Module Power Supply

Product Detail

Project number: 37DZ056-02

Cell model:103450/3.7V/2000mAh

Nominal voltage:3.7V

Nominal capacity:2000mAh

Charging voltage: 4.2V

Charging current: ≤1A

Discharging current: 1A

Instant discharging current: 1.5A to 4A

End-off voltage: 3.0V

Internal resistance: ≤200mΩ

Battery weight: 46g

Product dimension: 10.5*34.5*52 mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45℃

Battery case: polymer battery protection board outlet

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, etc.

Application field: bluetooth module power supply

*
*
*
