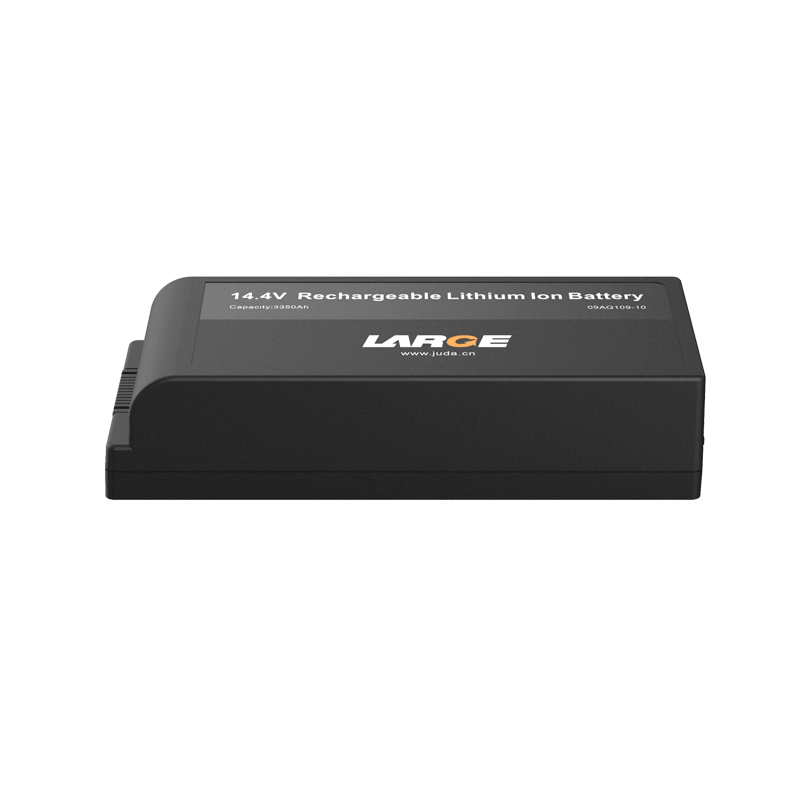

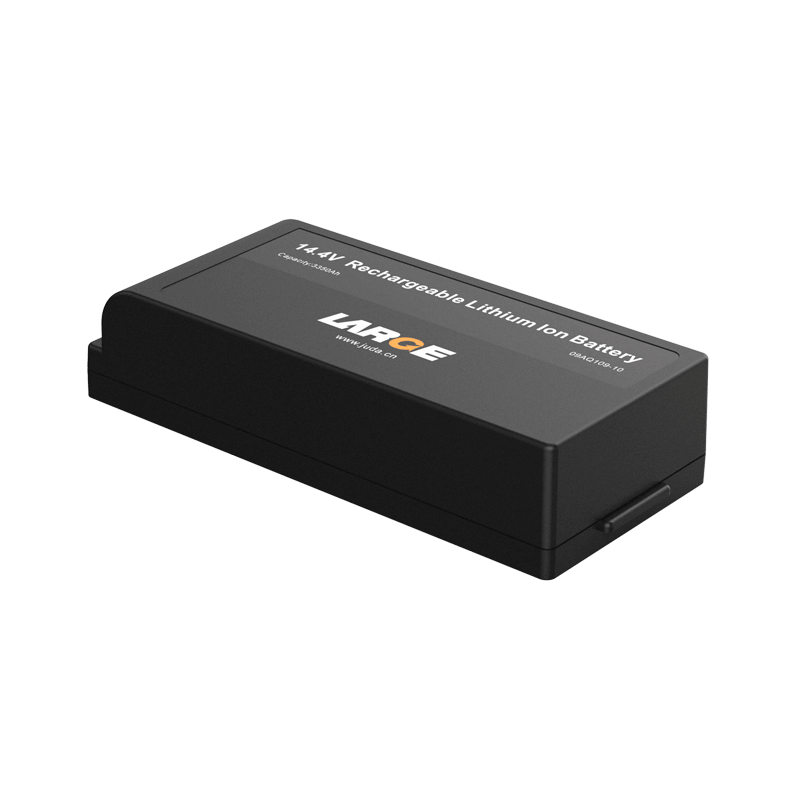

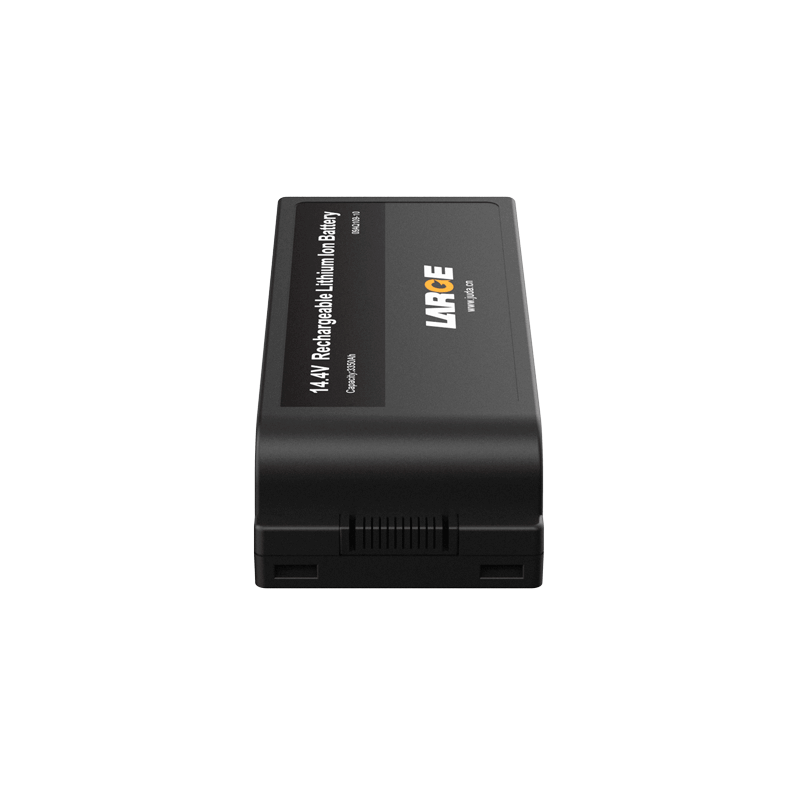

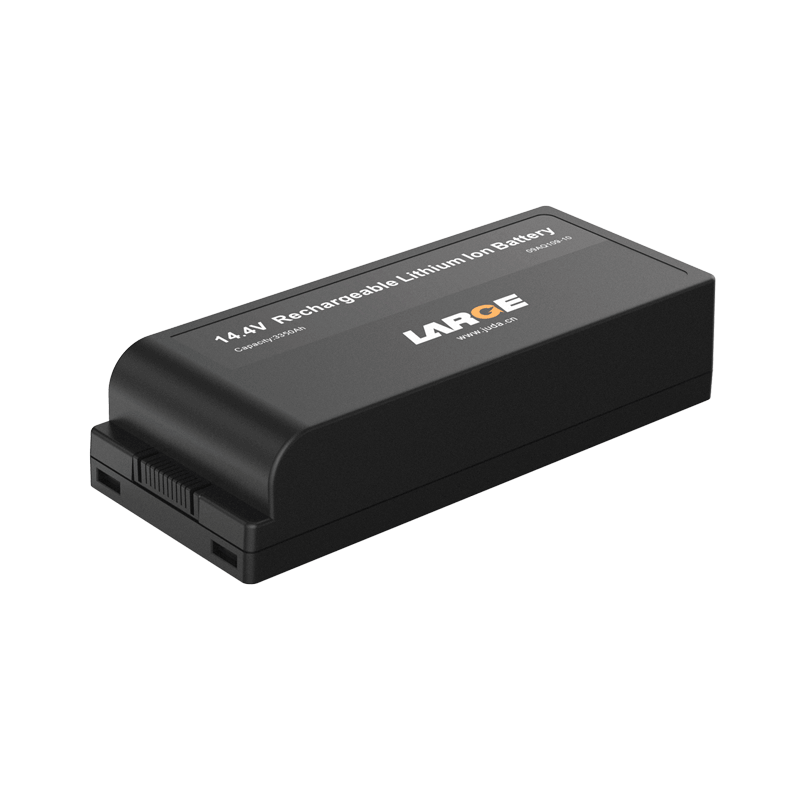

14.4V 6700mAh Samsung 18650 Lithium Battery Pack For B Supersonic Diagnostic Set

14.4V 6700mAh Samsung 18650 Lithium Battery Pack For B Supersonic Diagnostic Set
14.4V 6700mAh Samsung 18650 Lithium Battery Pack For B Supersonic Diagnostic Set
14.4V 6700mAh Samsung 18650 Lithium Battery Pack For B Supersonic Diagnostic Set
14.4V 6700mAh Samsung 18650 Lithium Battery Pack For B Supersonic Diagnostic Set

Product Detail

Product number: 09AQ109-10
Cell model:INR18650-35E/3350mAh/3.6V
Battery specification: 18650-4S2P/6700mAh/14.4V(Intelligence and shell)
Nominal voltage:14.4V
Nominal capacity: 6700mAh
Charging voltage: 16.8V
Charging current: ≤3.35A
Discharging current: 10.0A
Instant discharging current: 15.0A
End-off voltage: 11.2V
Internal resistance: ≤250mΩ
Battery weight: 550g
Product dimension: 40.2*75.1*177.4mm
Charging temperature:0~45℃
Discharging temperature: -20~60℃
Storage temperature: -20~23℃
Intelligent lithium ion battery protection: power management, short circuit protection, overcharge protection, over discharge protection, over current protection, etc.

*
*
*
