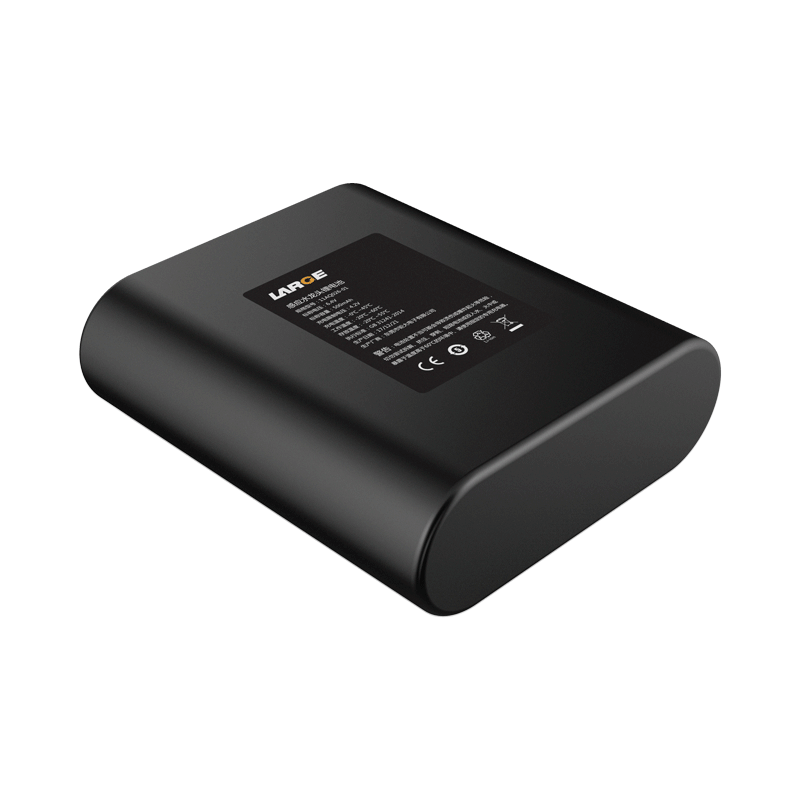

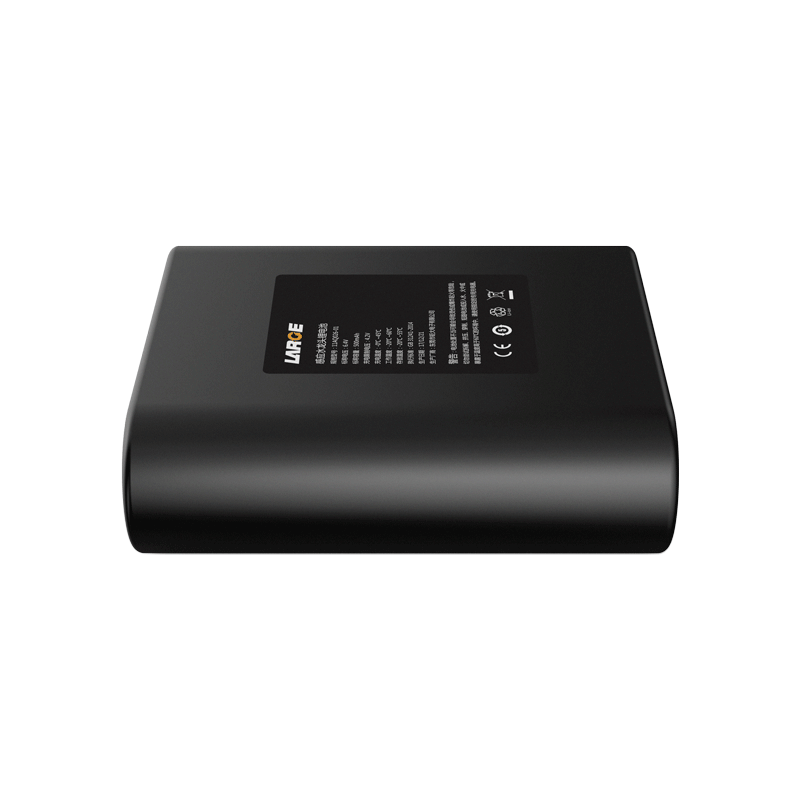

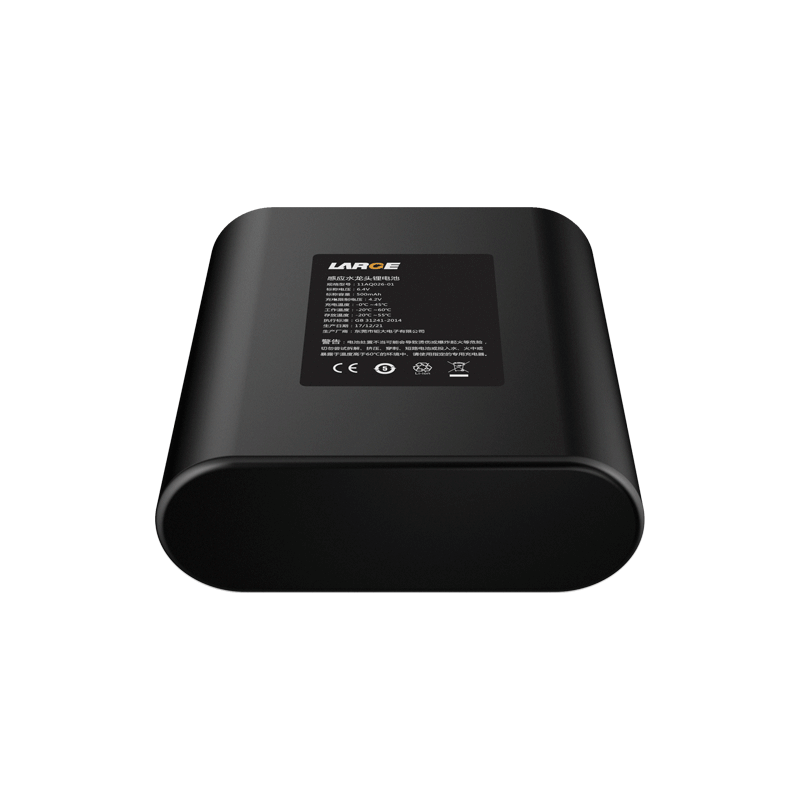

6.4V 500mAh 14500 LiFePO4 Battery

6.4V 500mAh 14500 LiFePO4 Battery
6.4V 500mAh 14500 LiFePO4 Battery
6.4V 500mAh 14500 LiFePO4 Battery
6.4V 500mAh 14500 LiFePO4 Battery

Product Detail

Product Number: 11AQ026-01

Combination mode: IFR14500-2S1P

Nominal voltage: 6.4V

Nominal capacity: 500mAh

Standard discharge continuous current: 0.2C

Maximum discharge continuous current: 5C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Product dimension: MAX 16*30*52.5mm

Finished product internal resistance: 250 mΩ or less

Lead model: UL1007/20#, line length: 100mm


*
*
*
*
*
