Custom Lithium ion Battery Pack

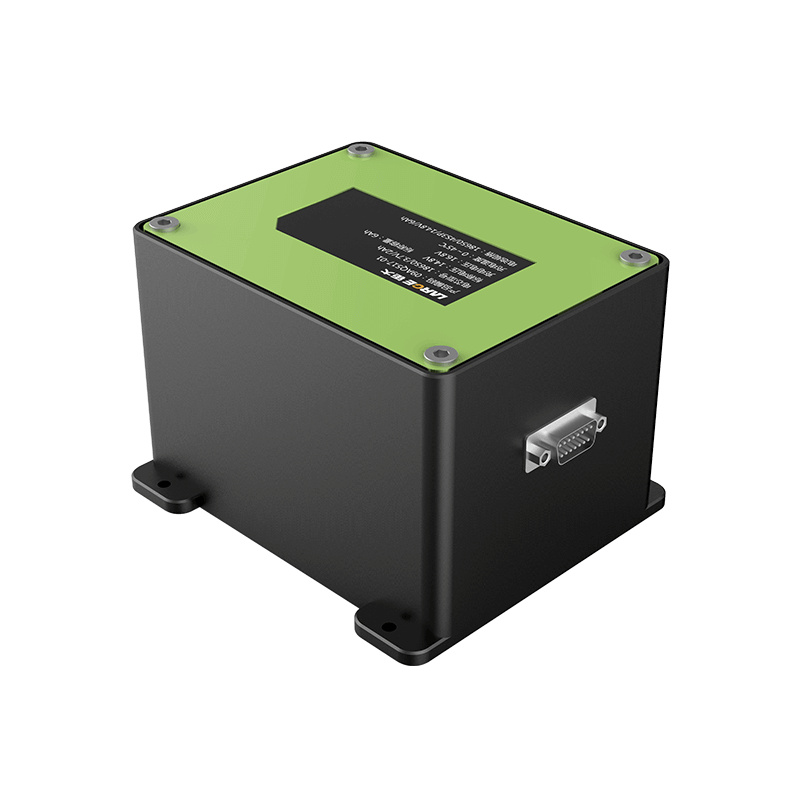

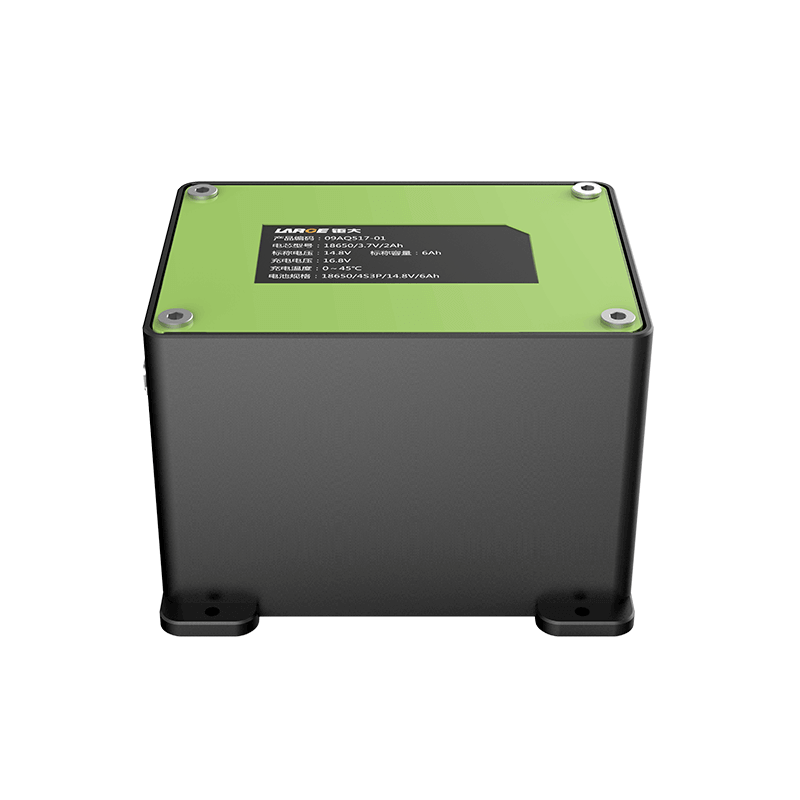

14.8V 6000mAh 18650 Low Temperature Lithium Battery Pack for Wareless Test Equipment

Product Detail

Product number: 09AQ517-01

Cell model:18650/3.7V/2000mAh

Battery specification: 18650/4S3P/14.8V/6000mAh

Nominal voltage:14.8V

Nominal capacity:6000mAh

Charging voltage: 16.8V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 3A

End-off voltage: 10V

Internal resistance: ≤200m?

Battery weight: 880g

Product dimension: 105×78×70(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -20~20 ℃

Temperature protection: 65℃±5℃

Battery case: AL6061 aluminum alloy

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and equilibrium.

Application field: wireless measurement device

Product features

1. Shock-resistant and waterproof: fill in the shock-resistant structure inside the aluminum alloy housing to satisfy the requirements of good security and high reliability.

2. Operate at low temperature: adopt military low temperature battery and make sure to operate at -40℃.

3. Reliable connection: apply square aviation connector, which is efficient, safe and reliable.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
