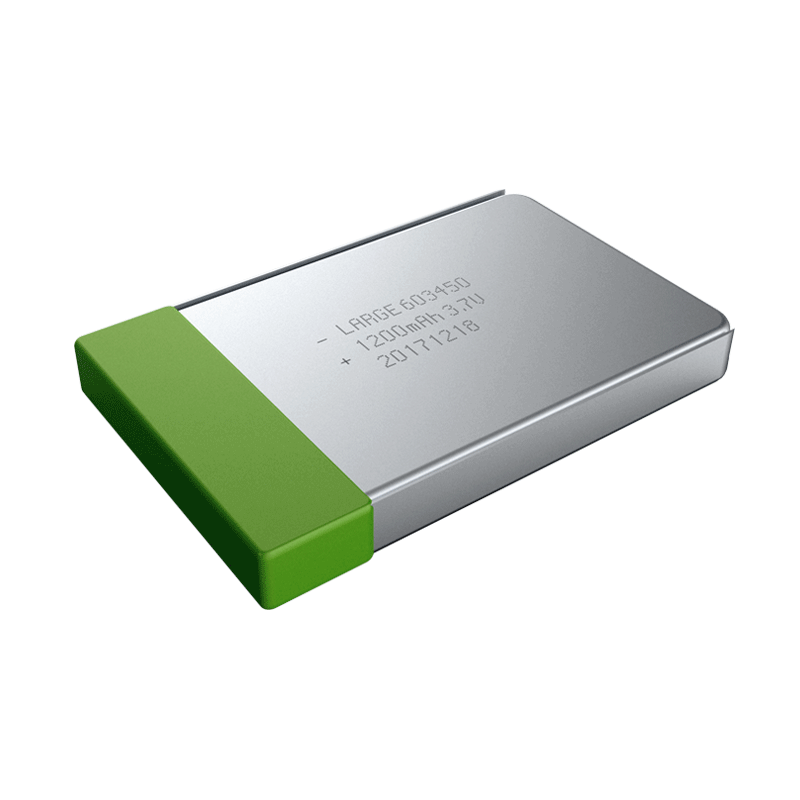

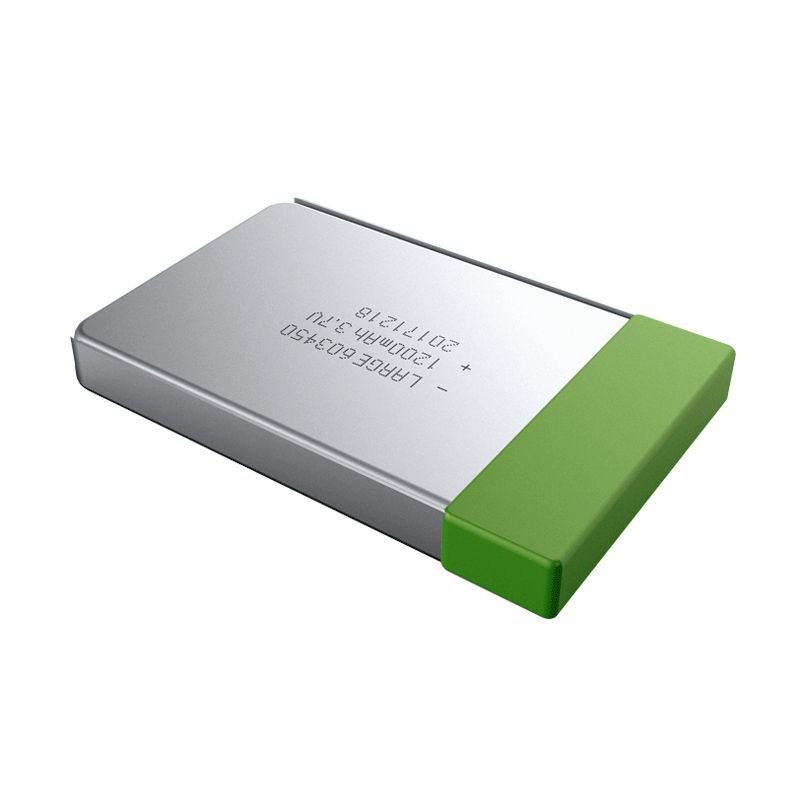

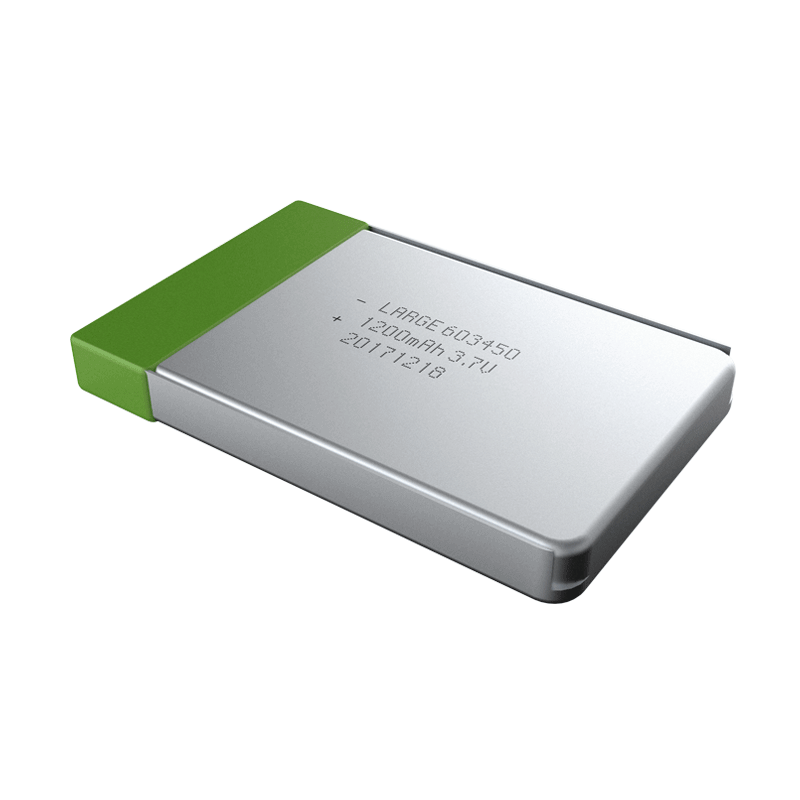

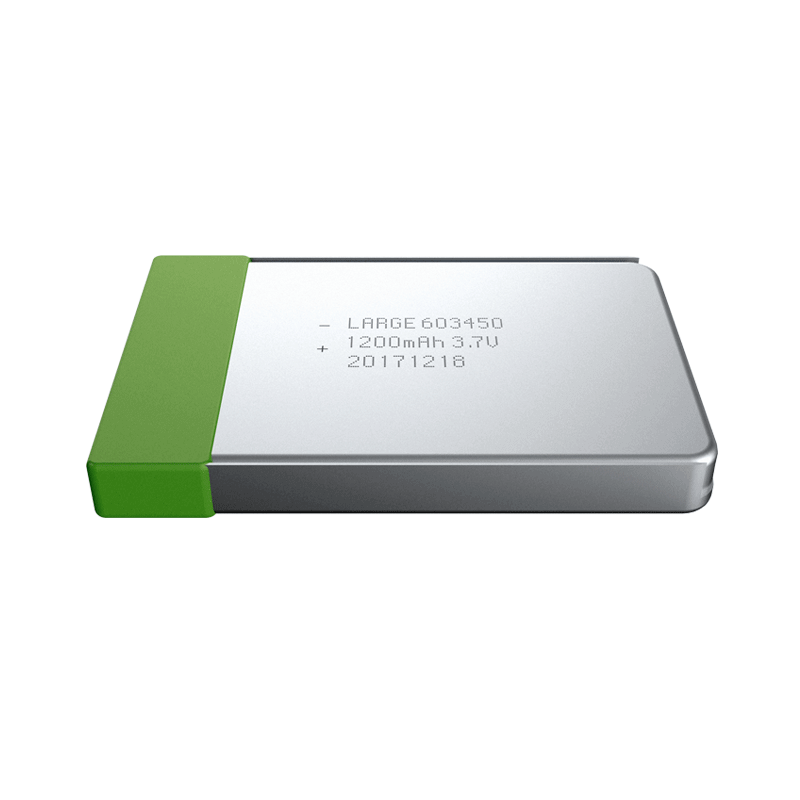

3.7V 1200mAh Low Temperature Lithium Polymer Battery for Portable Aviation Detecting Instrument

Product Detail

Product number: 03EQ074-01

Cell model:LA603450CL/3.7V/1200mAh

Battery specification: LA603450CL-1S1P/3.7V/1200mAh

Nominal voltage:3.7V

Nominal capacity:1.2 Ah

Charging voltage: 4.2V

Charging current: ≤0.5A

Discharging current: 0.3A

Instant discharging current: 0.8A

End-off voltage: 3V

Internal resistance: ≤150m?

Battery weight: 30kg

Product dimension: 50*34*6mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -20~60 ℃

Temperature protection: 60℃±5℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: special application field, national defense, aerospace measurement and control instruments, etc.

*
*
*
