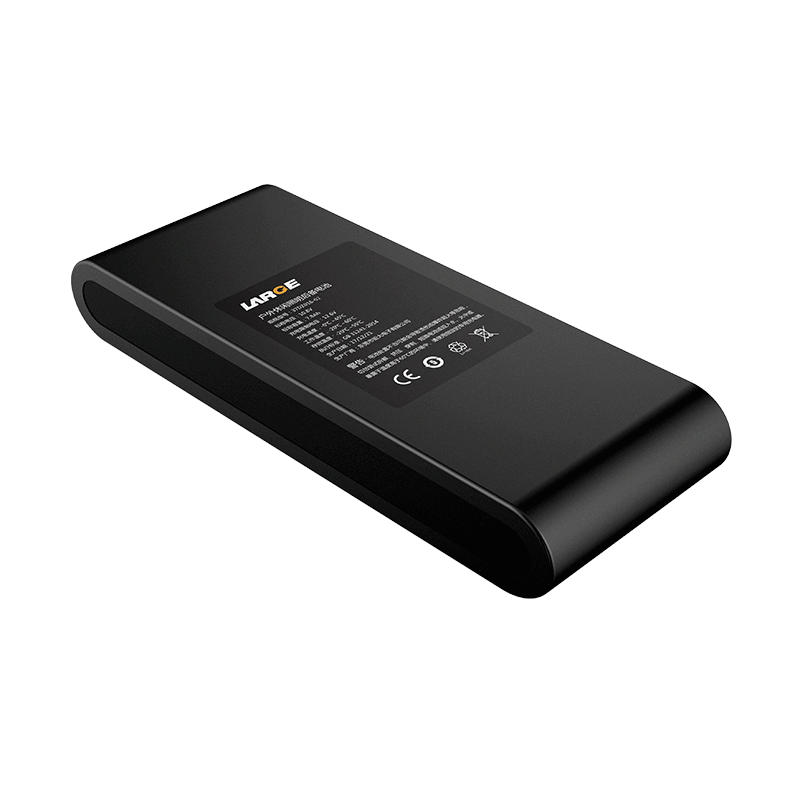

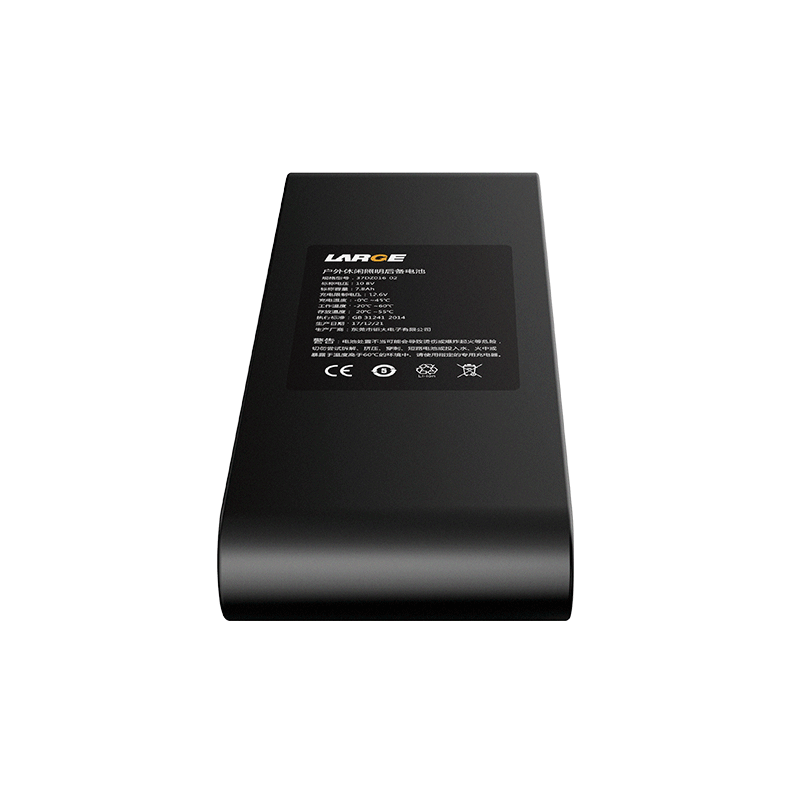

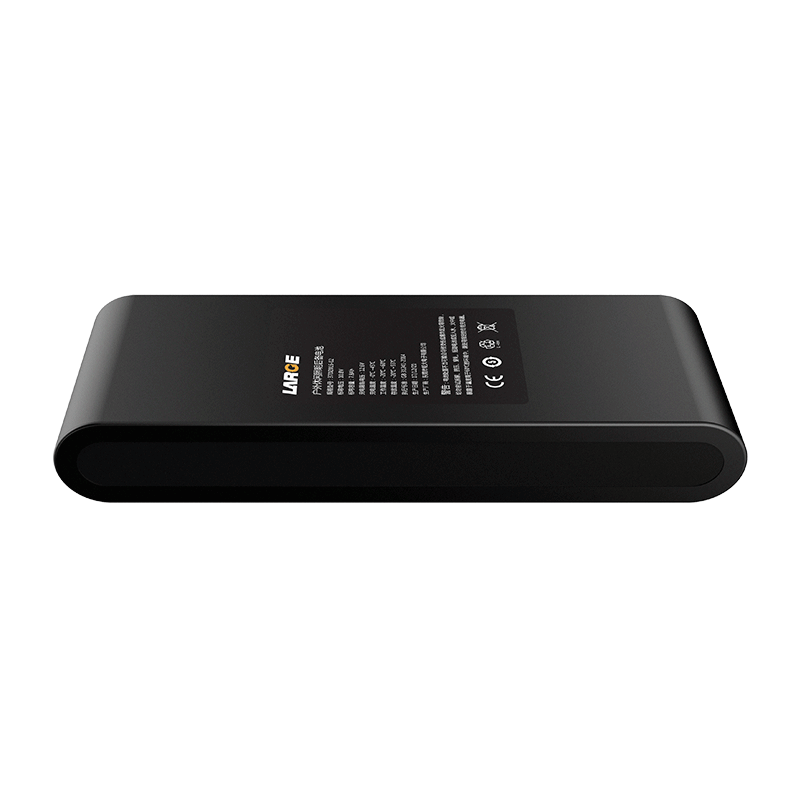

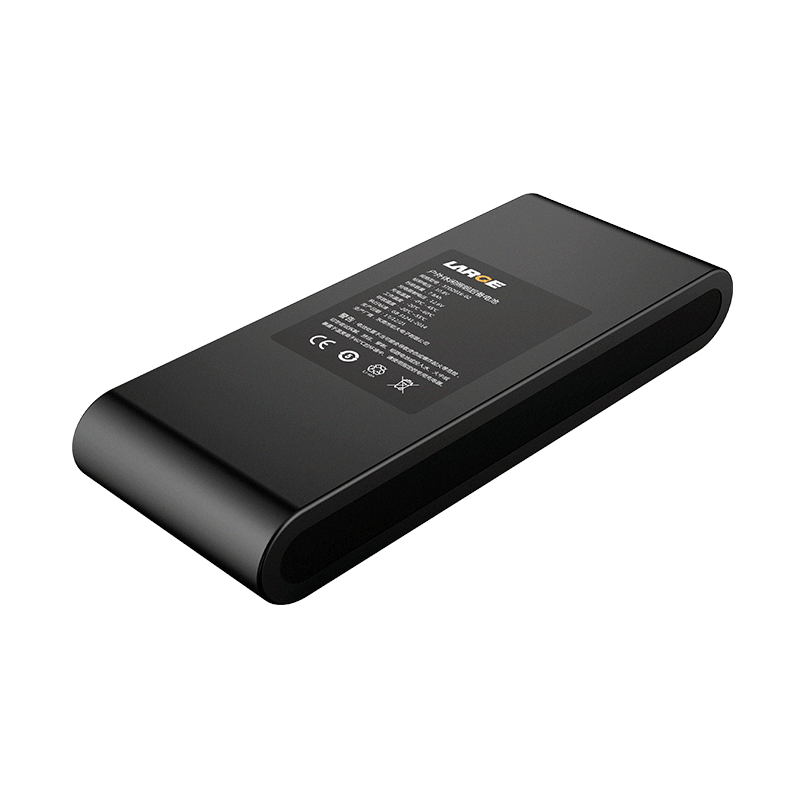

18650 10.8V 7.8Ah Lithium Ion Battery Lishen Battery for Outdoor Lighting
Product Number:
37DZ016-02
Nominal voltage:
10.8V
Nominal capacity:
7.8Ah
Battery Configuration:
18650-3S3P
Dimension:
25 × 67 × 170 mm
Application:
outdoor lighting equipment
Temperature Protection Function, Stable Power Output, Long Cycle Life
Product Overview
This battery is specially designed for outdoor lighting equipment, suitable for emergency lighting and long-term outdoor power supply applications. Featuring stable output, long runtime, and temperature protection, it ensures reliable continuous operation.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 37DZ016-02 |
| Cell Model | 18650/3.6V/2.6Ah |
| Battery Configuration | 18650-3S3P |
| Nominal Voltage | 10.8V |
| Nominal Capacity | 7.8Ah |
| Rated Energy | 84.24Wh |
| Charging Voltage | 12.6V |
| Discharge Cut-off Voltage | 7.5V |
| Standard Charging Current | ≤2.6A |
| Standard Discharge Current | 3A |
| Max Continuous Discharge Current | 8A |
| Internal Resistance | ≤150mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～45℃ |
| Dimensions | 25 × 67 × 170 mm |
| Weight | 430 g |
| Battery Case | PVC |
| Protection System | Short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
