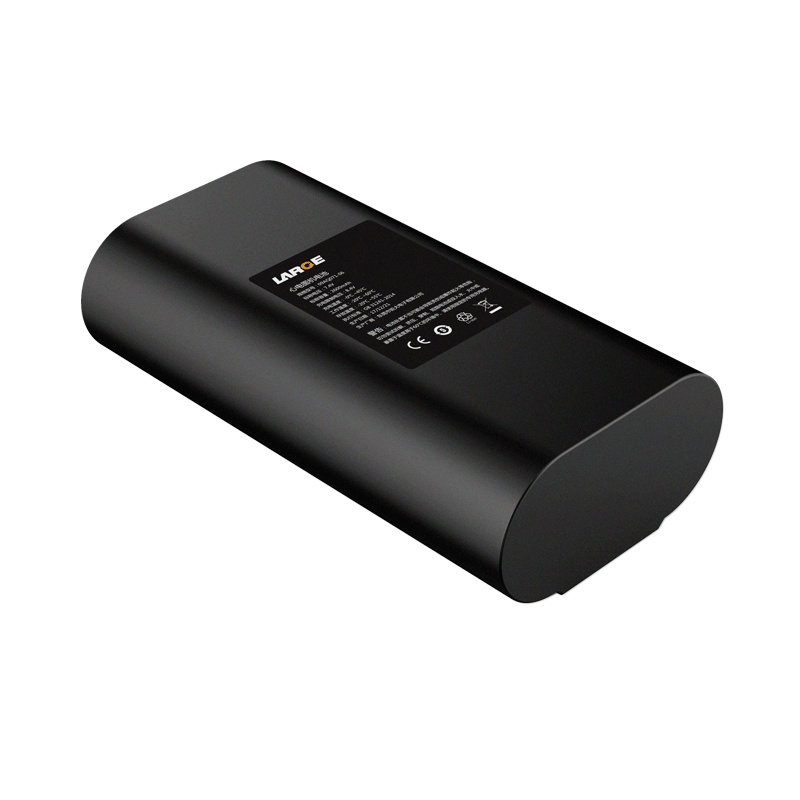

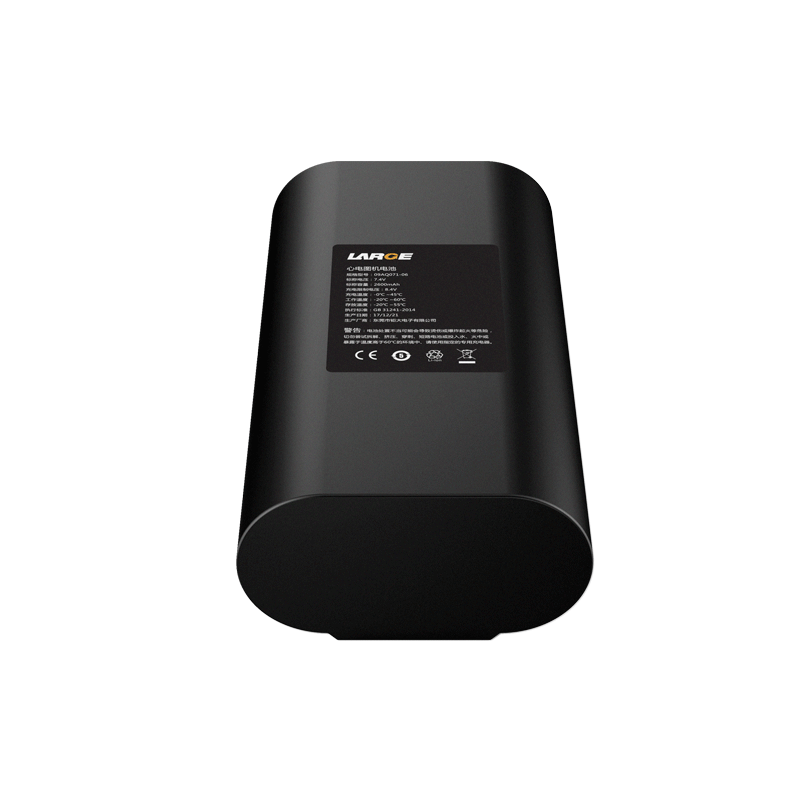

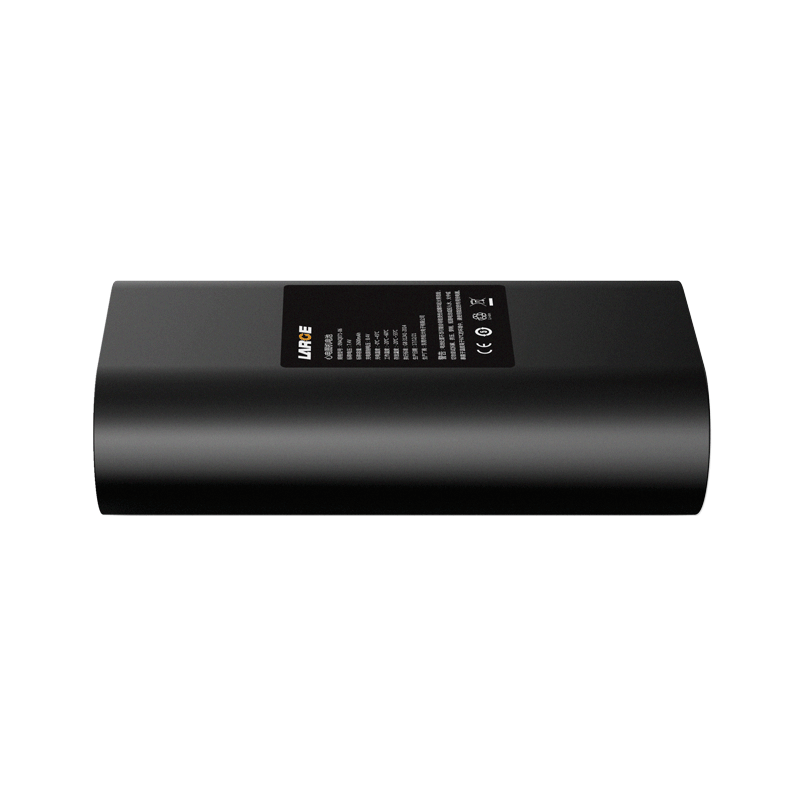

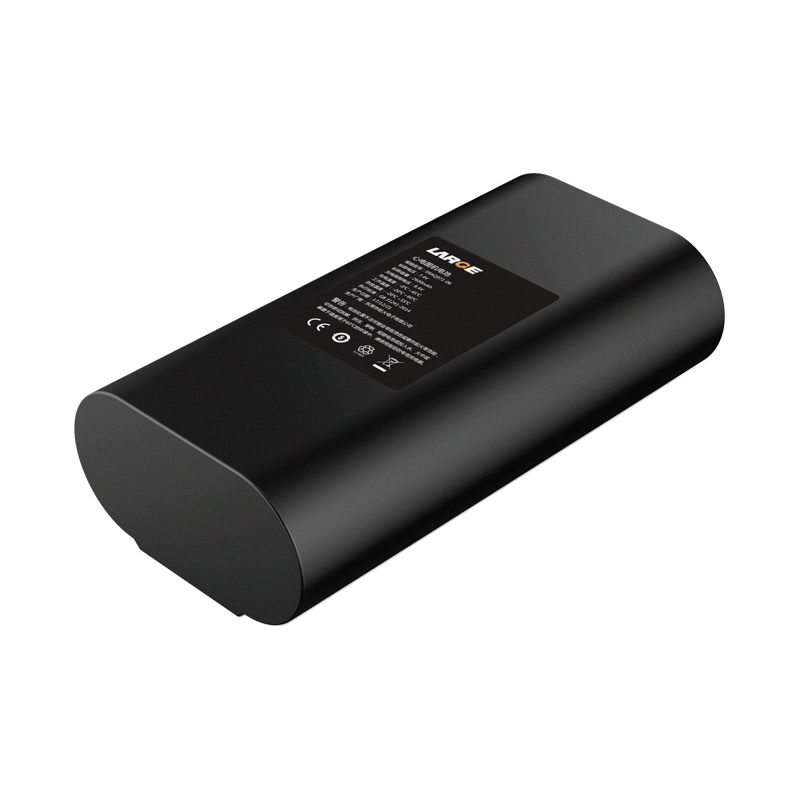

7.4V 2.2Ah 18650 lithium ion battery BIC battery for electrocardiograph

Product Detail

Product number: 09AQ071-06

Cell model:18650/3.7V/2600mAh

Battery specification: 18650/2S1P/7.4V/2600mAh

Nominal voltage:7.4V

Nominal capacity:2600mAh

Charging voltage: 8.4V

Charging current: ≤2000mA

Discharging current: 2000mA

Instant discharging current: 3000mA

End-off voltage: 6.0V

Internal resistance: ≤250m?

Battery weight: 100g

Product dimension: 75*38*20mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection and overcurrent protection.

Application field: electrocardiograph, testing equipment
