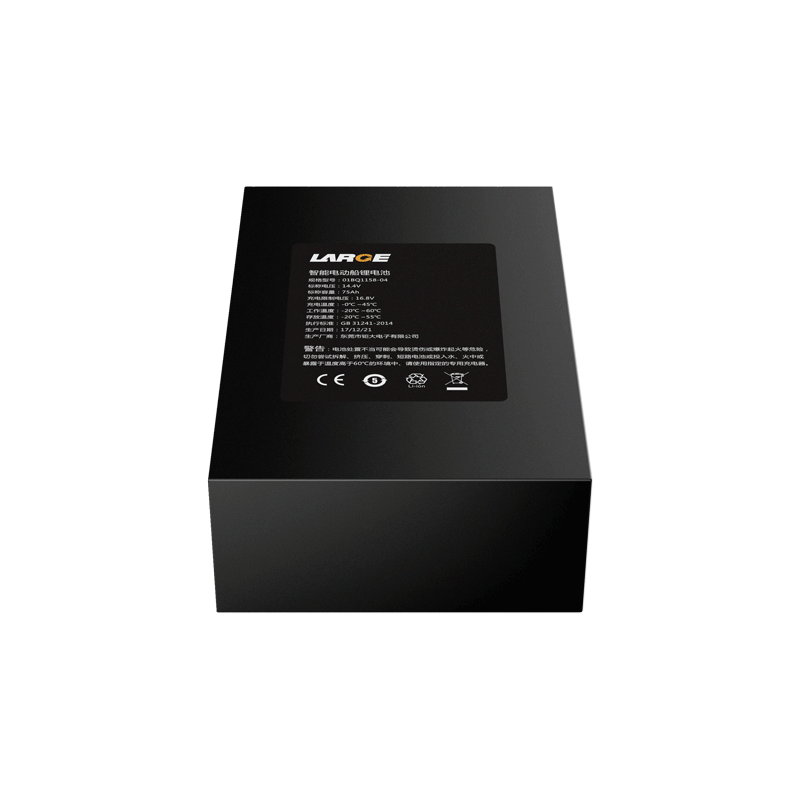

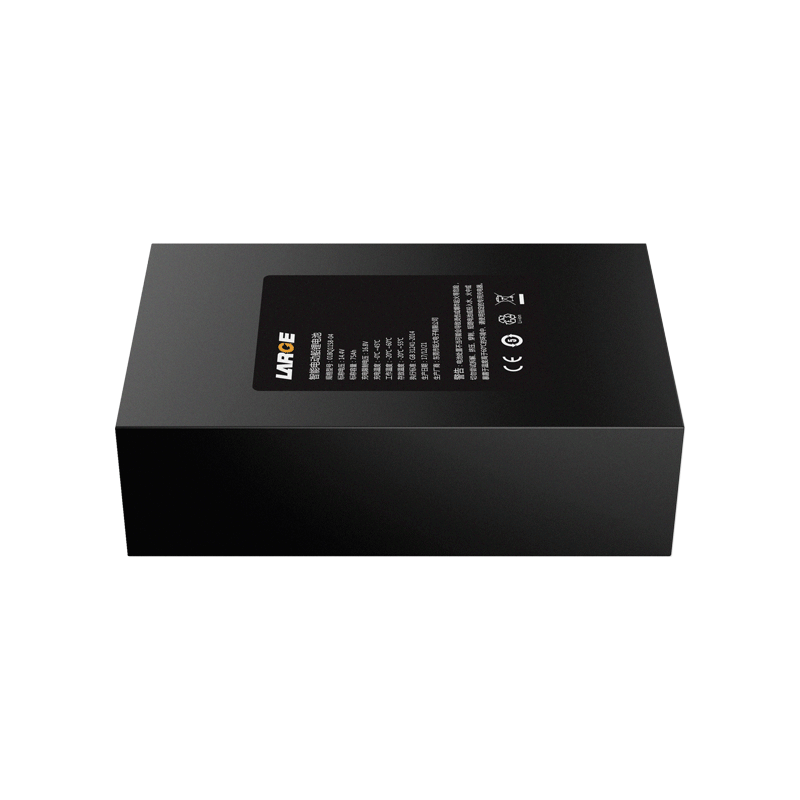

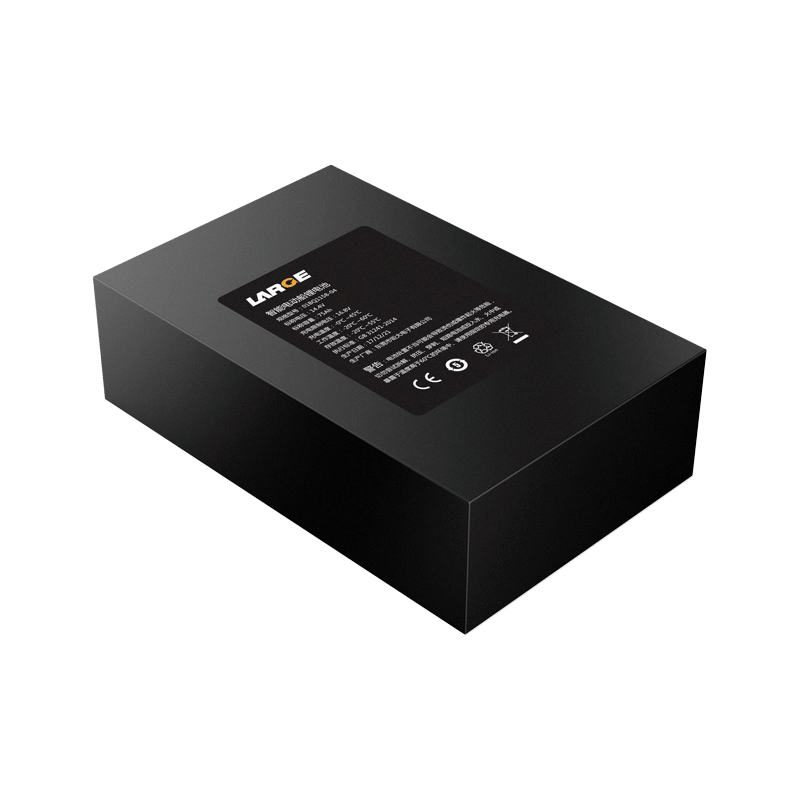

Custom Lithium Ion Battery Pack

14.4V 75Ah 18650 lithium ion battery Sanyo battery for intelligent ship

  • Model number:01BQ1158-04

  • Nominal voltage:14.4V

  • Nominal capacity:75000mAh

  • Battery cell:18650/3.6V/2.5Ah

  • Dimension:300*192*88mm(Max)

  • Application:intelligent electric ship, AGV

Product Detail

Product number: 01BQ1158-04

Cell model:18650/3.6V/2.5Ah

Battery specification: 18650-4S30P/14.4V/75Ah

Nominal voltage:14.4V

Nominal capacity:75Ah

Charging voltage: 16.8V

Charging current: ≤10A

Discharging current: 30A

Instant discharging current: 75A

End-off voltage: 12.0V

Battery weight: 6Kg

Internal resistance: ≤200m?

Product dimension: 300*192*88mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: blue PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: intelligent electric ship, AGV

*
*
*
