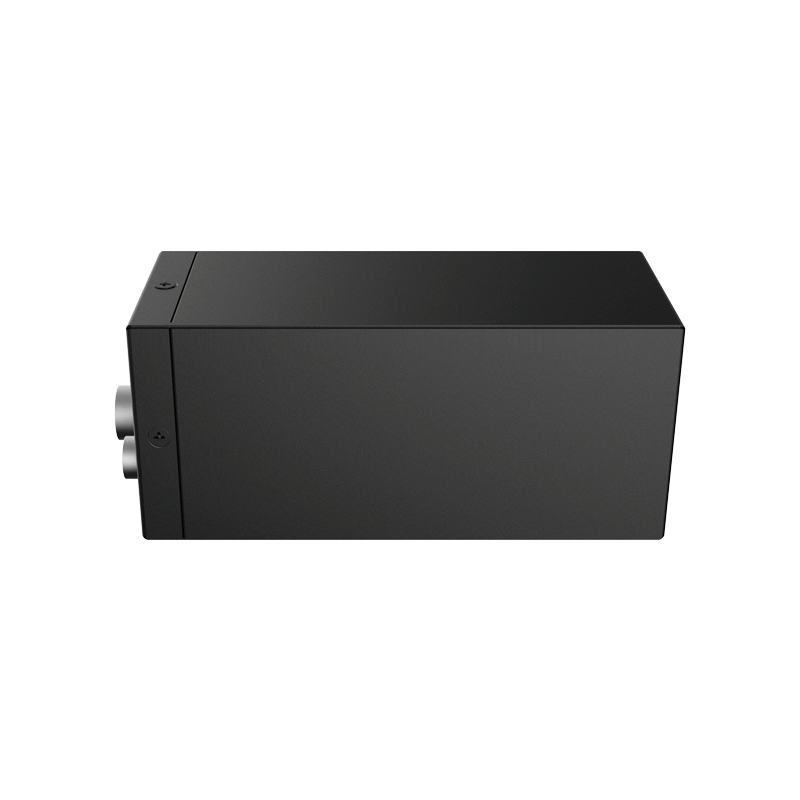

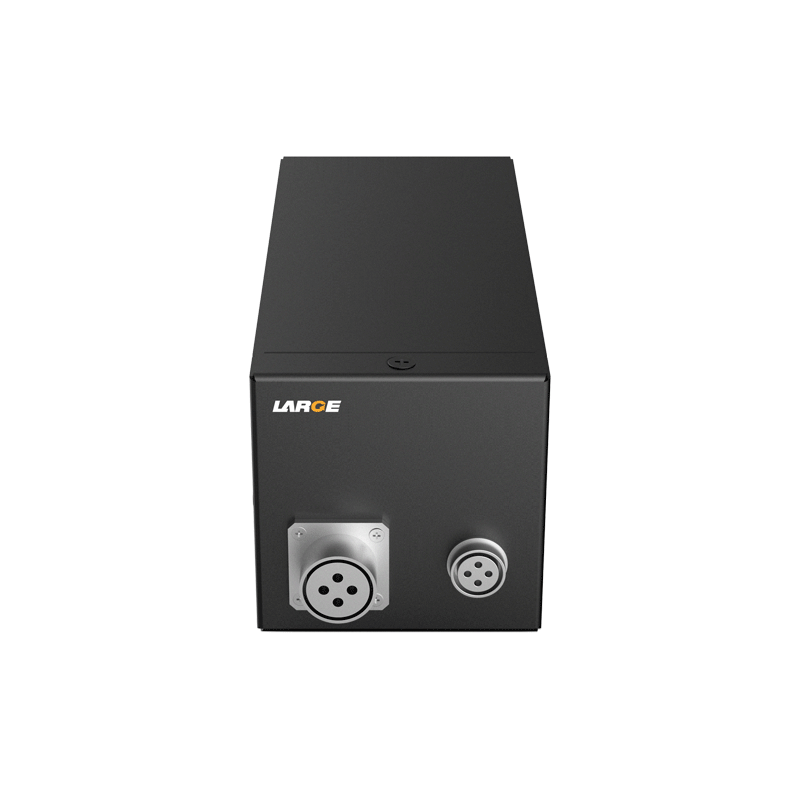

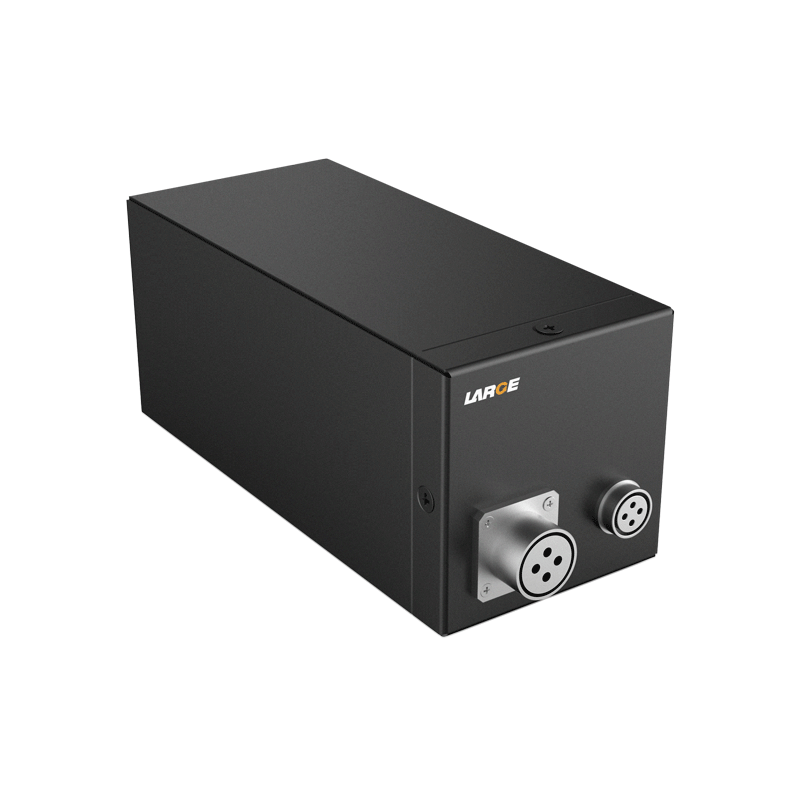

Custom Lithium ion Battery Pack

25.2V 10Ah 18650 Lithium Ion Battery Panasonic Battery for Intelligent Drilling Machine

  • Model number:16AQ005-02

  • Nominal voltage:25.2V

  • Nominal capacity:16500mAh

  • Battery cell:18650/3.6V/3.35Ah Panasonic

  • Dimension:191×84×84(Max)

  • Application:electric tool, drilling machine

Product Detail

Product number: 16AQ005-02

Cell model:18650/3.6V/3.35Ah Panasonic

Battery specification: 18650/7S3P/25.2V/10Ah

Nominal voltage:25.2V

Nominal capacity:16.5Ah

Charging voltage: 29.4V

Charging current: ≤5A

Discharging current: 10A

Instant discharging current: 20A

End-off voltage: 19.6V

Internal resistance: ≤200mΩ

Battery weight: 1.5Kg

Product dimension: 191×84×84(Max)

Charging temperature:0~45℃

Discharging temperature: -20~50℃

Storage temperature: -20~40 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection and overcurrent protection

Application field: electric tool, drilling machine


Product features

1. Shock-resistant: fill in the shock-resistant structure inside with cold rolling metal plate on which spray the powder to satisfy the requirements of good security and reliability.

2. Large current: output large current and the maximum current is 3C.

3. Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
