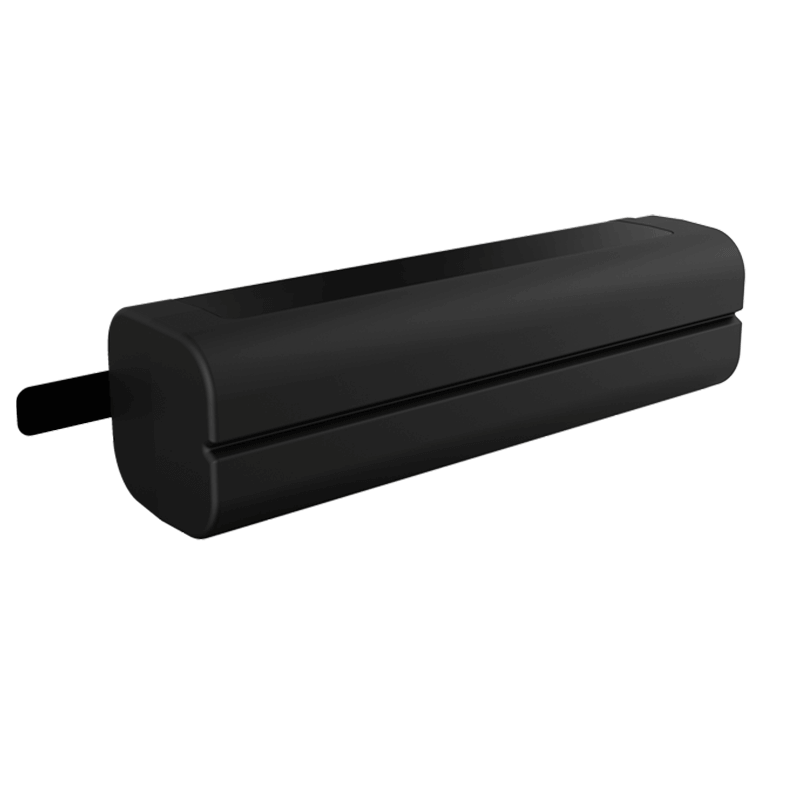

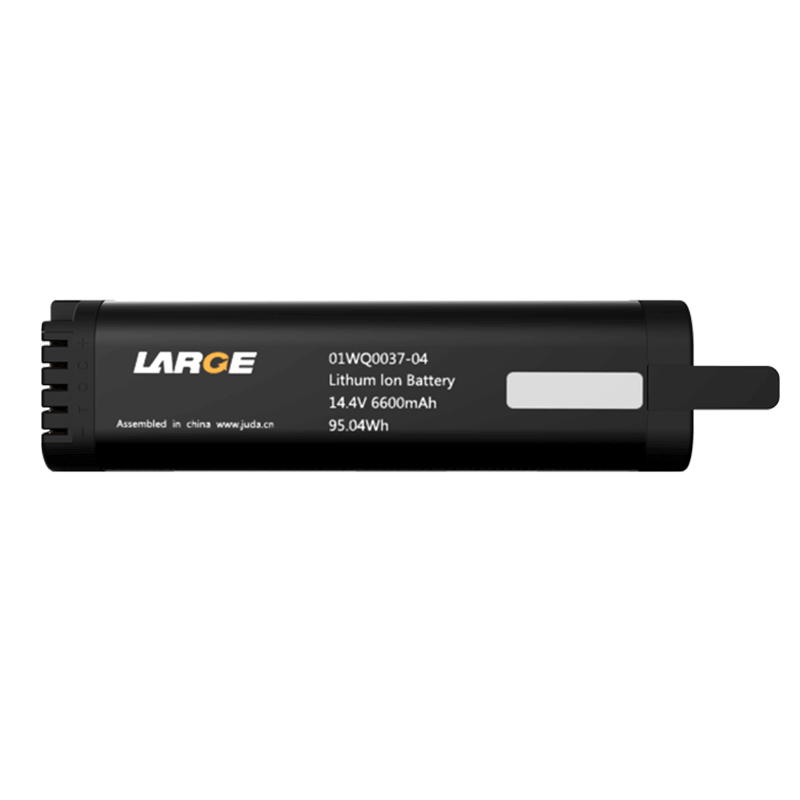

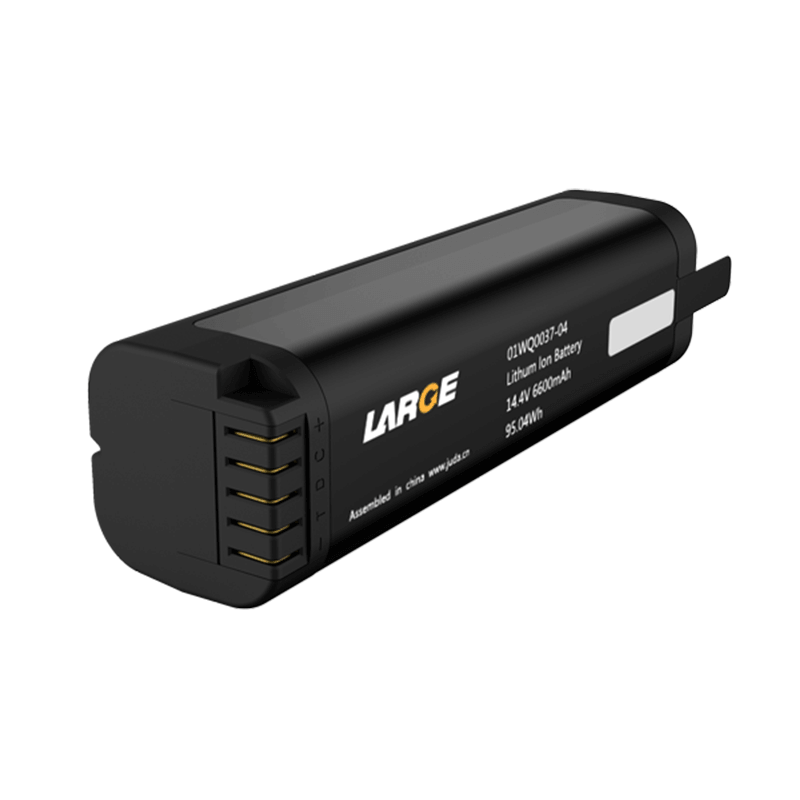

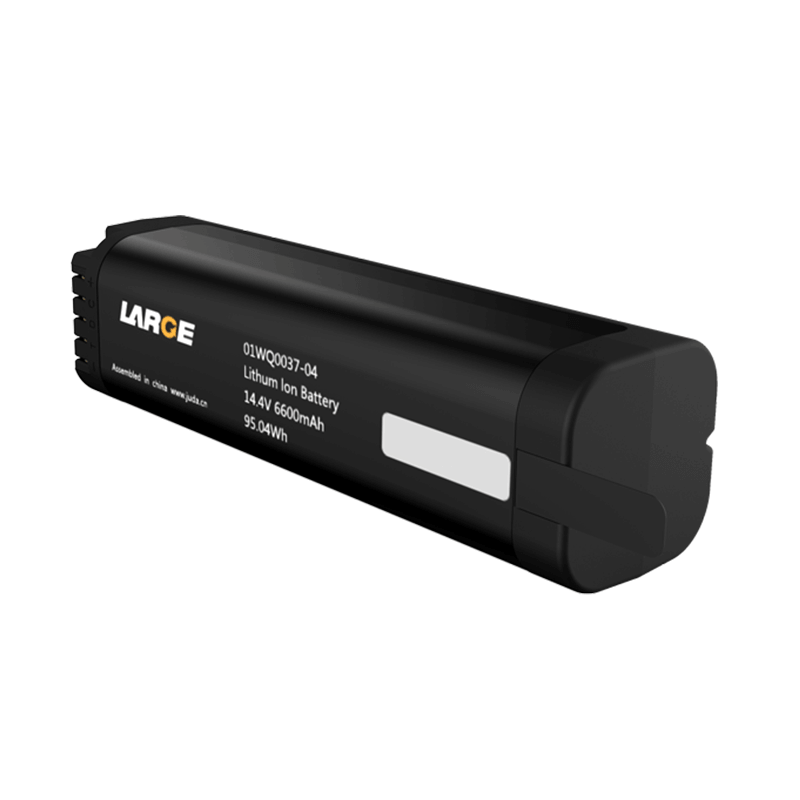

Custom Lithium ion Battery Pack

18650 14.4V Lithium Ion Battery Panasonic Battery Network Tester Intelligent Lithium Ion Battery with SMBUS Communication

  • Model number:01WQ0037-04

  • Nominal voltage:14.4V

  • Nominal capacity:6600mAh

  • Battery cell:NCR18650GA/3300mAh/3.6V

  • Dimension:(150*41.5*41)±0.25mm

  • Application:network tester

Product Detail

Product number: 01WQ0037-04

Cell model:NCR18650GA/3300mAh/3.6V

Battery specification: NCR18650GA-4S2P-6600mAh-14.4V

Nominal voltage:14.4V

Nominal capacity:6.6Ah

Charging voltage: 16.8V

Charging current: ≤3.3A

Discharging current: ≤6.6A

Instant discharging current: 6.0A for 1mS

End-off voltage: 12.0V

Internal resistance: ≤250mΩ

Battery weight: about 390g

Product dimension: (150*41.5*41)±0.25mm

Charging temperature:10~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Temperature protection: charge 45℃±2℃ discharge 60±2℃

Battery case: PVC

Lithium-ion battery protection: overcharge protection, over-discharge protection, charge and discharge overcurrent protection, charge and discharge short circuit protection, charge and discharge temperature protection, low voltage alarm, etc.

Application field: network tester


Product features

1. Data communication management SMBUS: adopt TI software management chip, and use IC to monitor the temperature, voltage, capacity, percentage of the battery pack.

2. The host machine transmits the data by SMBUS communication, so that we can know the information of battery pack at any time, which improves the security.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
