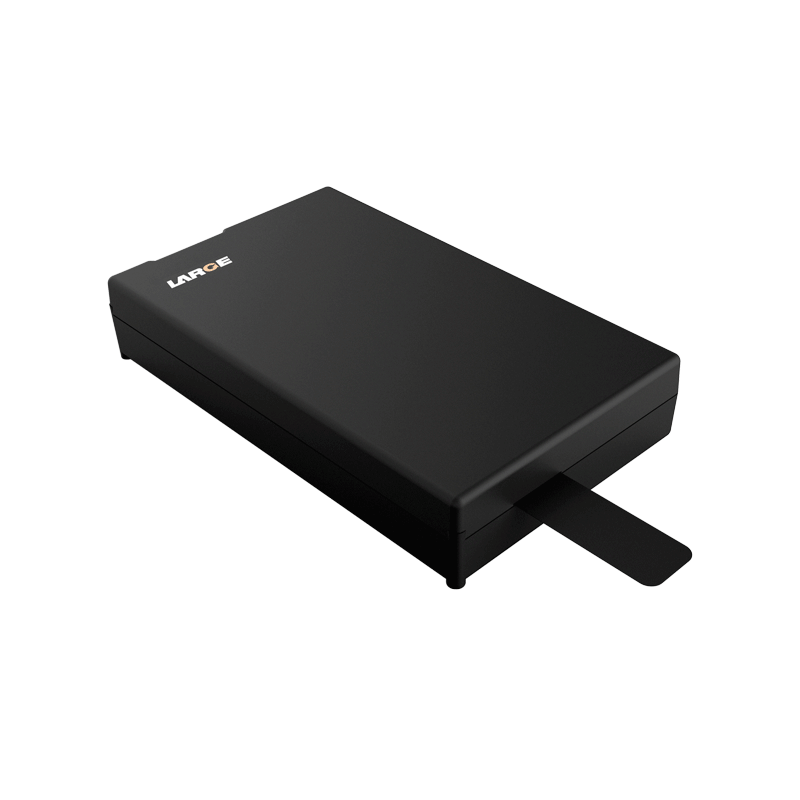

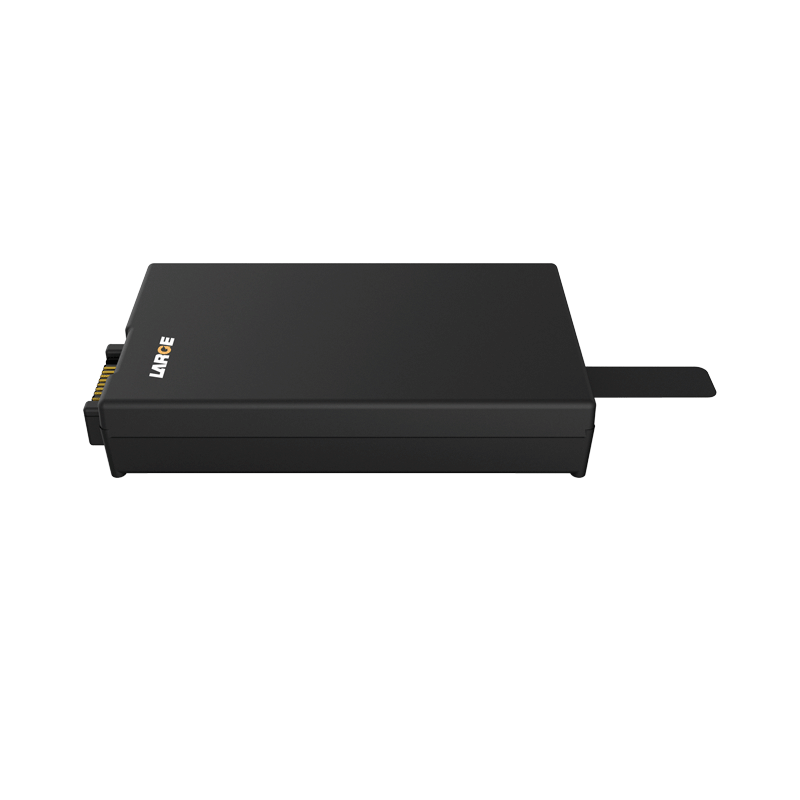

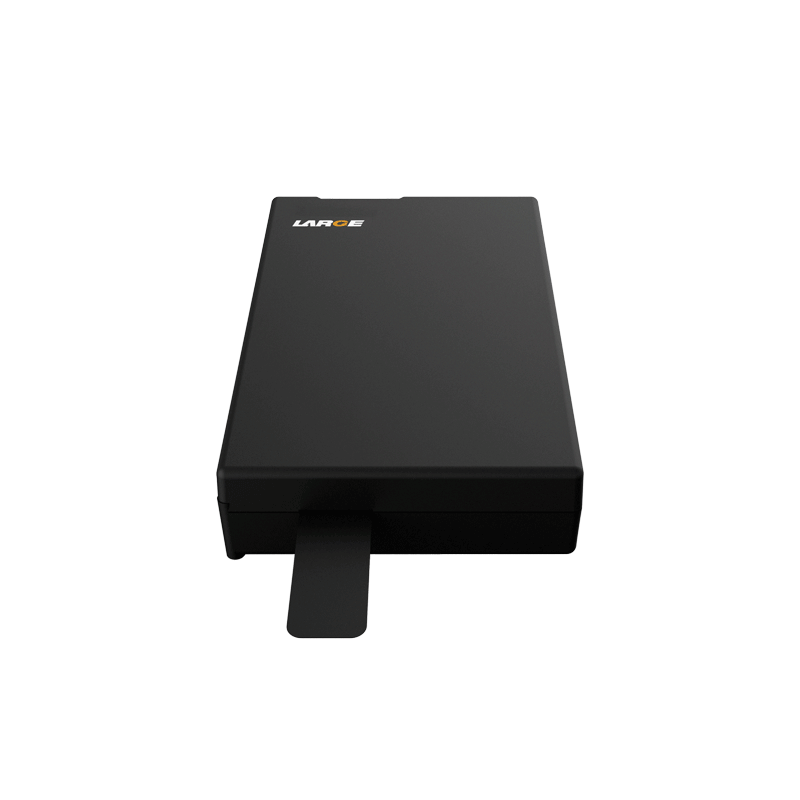

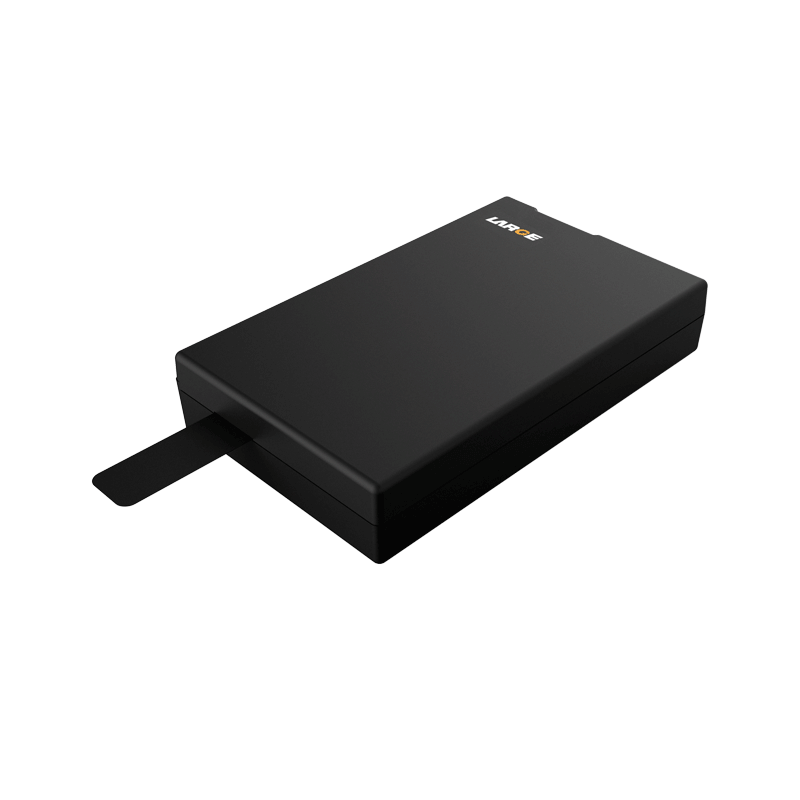

10.8V 5200mAh 18650 Lithium Ion Battery Lishen Battery Portable Equipment

Product number: 06DQ039-01

Cell model：18650/3.6V/2600mAh

Battery specification: 18650-3S2P/10.8V/5200mAh

Nominal voltage：10.8V

Nominal capacity：5200mAh

Charging voltage: 12.6V

Charging current: ≤2.5A

Discharging current: 2.5A

Instant discharging current: 5A

End-off voltage: 9V

Internal resistance: ≤200mΩ

Battery weight: 0.4Kg

Product dimension: 123.4*74.3*23.2mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: ABS+PC

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: portable equipment

Product features

1. Data communication management: adopt TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

2. The battery pack has good security, nice performance and long cycle life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
