Custom Lithium Ion Battery Pack

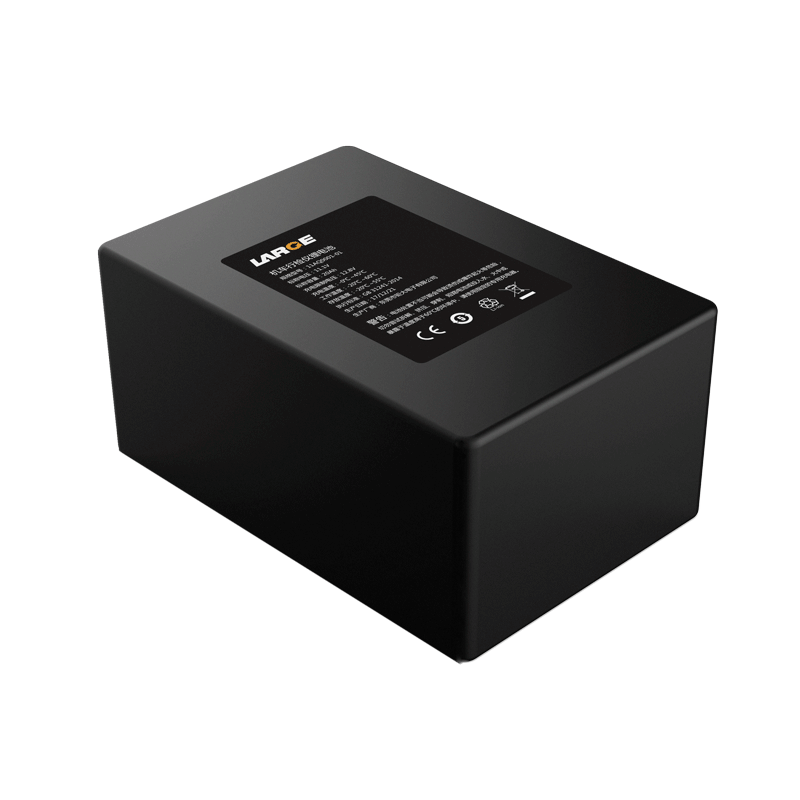

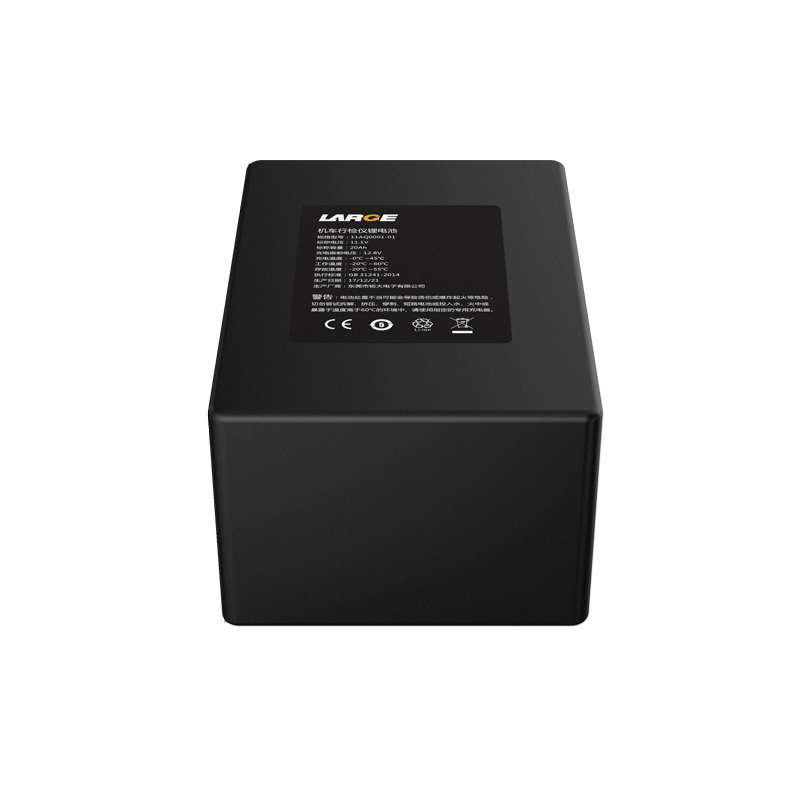

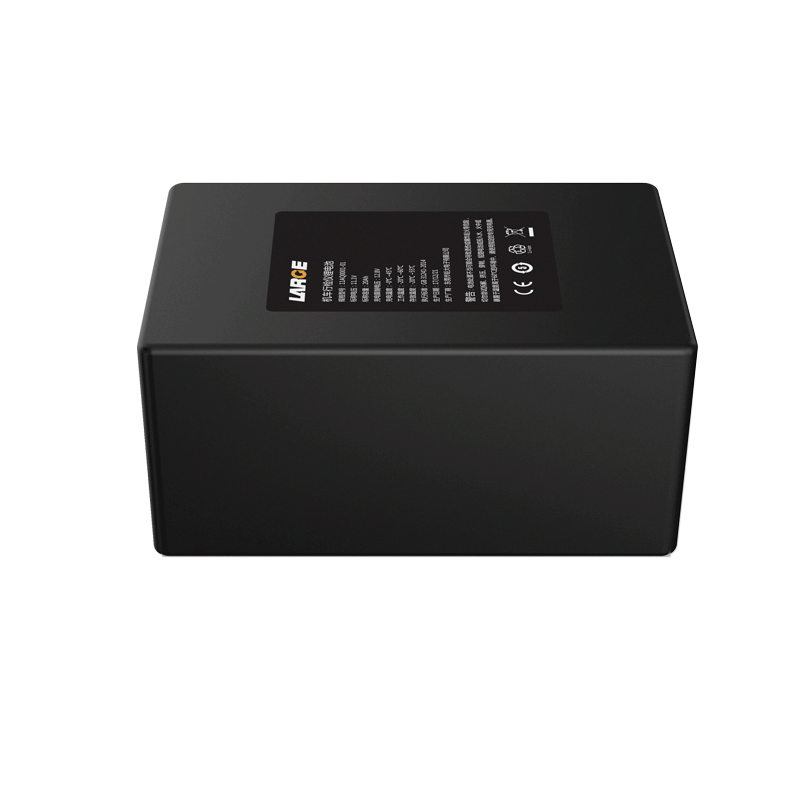

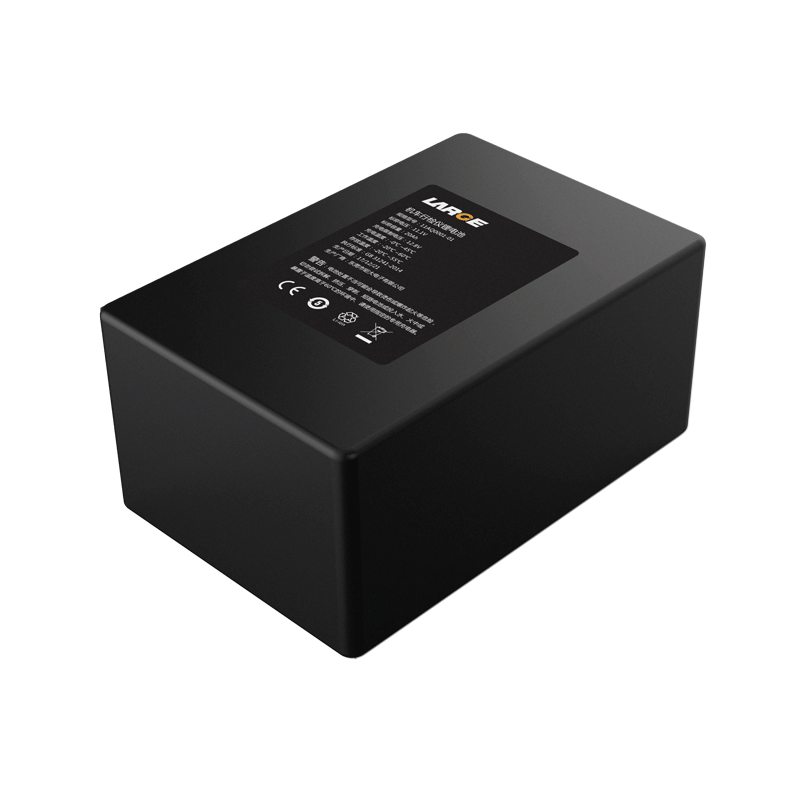

11.1V 20Ah 18650 Lithium Ion Battery for Sanyo Battery for Locomotive Inspection Instrument

  • Model number:11AQ0001-01

  • Nominal voltage:11.1V

  • Nominal capacity:20000mAh

  • Battery cell:18650/11.1V/20Ah

  • Dimension:172*72*65mm(Max)

  • Application:locomotive inspection instrument, measurement and control instrument of rail traffic, etc.

Product Detail

Product number: 11AQ0001-01

Cell model:18650/11.1V/20Ah

Battery specification: 18650-3S8P/11.1V/20Ah

Nominal voltage:11.1V

Nominal capacity:20Ah

Charging voltage: 12.8V

Charging current: ≤5A

Discharging current: 5A

Instant discharging current: 10.0A

End-off voltage: 7.2V

Internal resistance: ≤150mΩ

Battery weight: 1300g

Product dimension: 172*72*65mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: blue PVC

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: locomotive inspection instrument, measurement and control instrument of rail traffic, etc.

*
*
*
