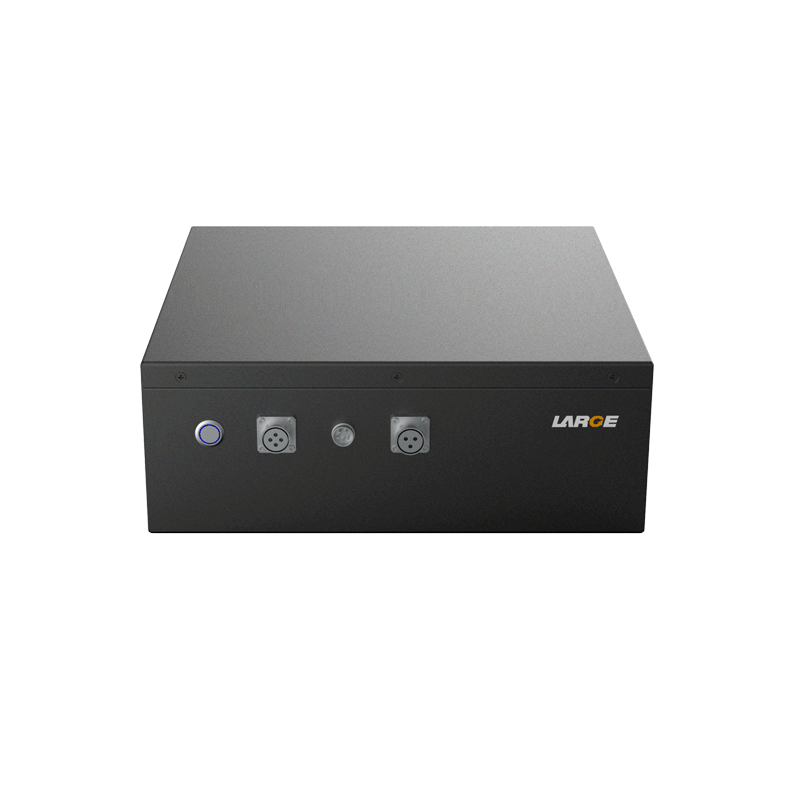

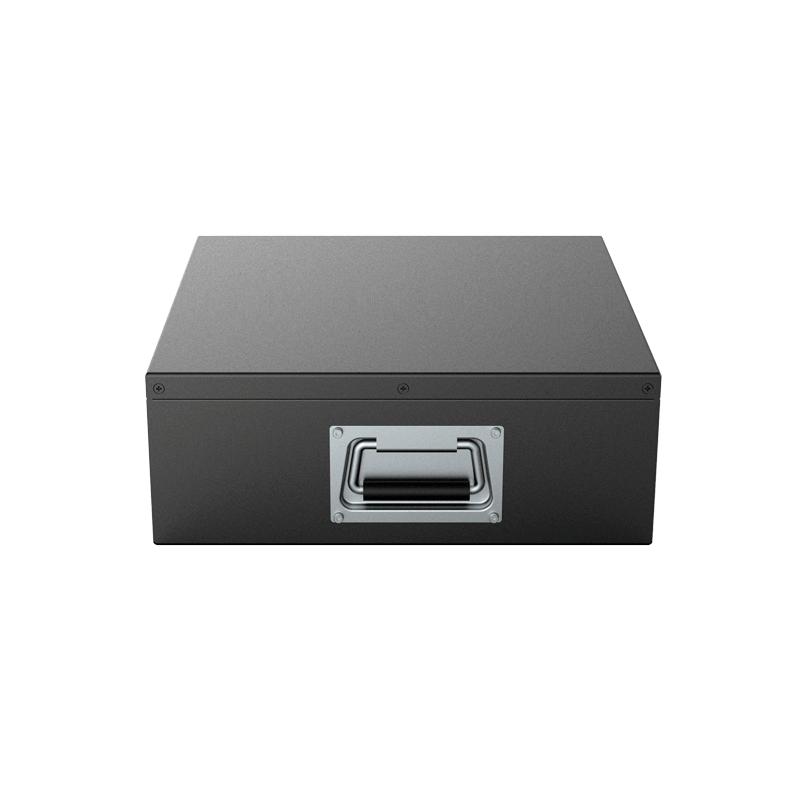

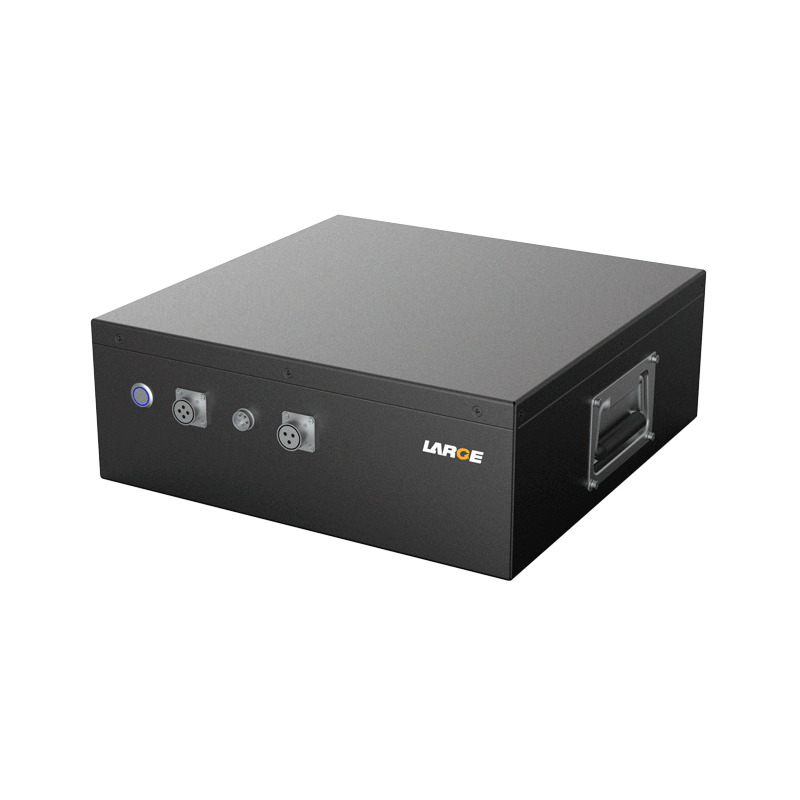

Custom Lithium Ion Battery Pack

26650 3.2V 3.3Ah LiFePO4 Battery PLB Battery for Robot

  • Model number:04EQ029-16

  • Nominal voltage:48.0V

  • Nominal capacity:40000mAh

  • Battery cell:26650/3.2V/3.3Ah PLB

  • Dimension:180×180×140(Max)

  • Application:robot

Product Detail

Product number: 04EQ029-16

Cell model:26650/3.2V/3.3Ah PLB

Battery specification: 26650/15S12P/48V/40Ah

Nominal voltage:48V

Nominal capacity:40Ah

Charging voltage: 54V

Charging current: ≤20A

Discharging current: 8A

Instant discharging current: 50A

End-off voltage: 45V

Internal resistance: ≤200mΩ

Battery weight: 30Kg

Product dimension: 180×180×140(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55 ℃

Storage temperature: -20~40 ℃

Temperature protection:65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and temperature protection.

Application field: robot


Product features

1. Shock-resistant: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

2. Salt spray protection: spray powder on the surface to prevent salt spray mold, so that it can be adaptable to the ocean.

3. Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
