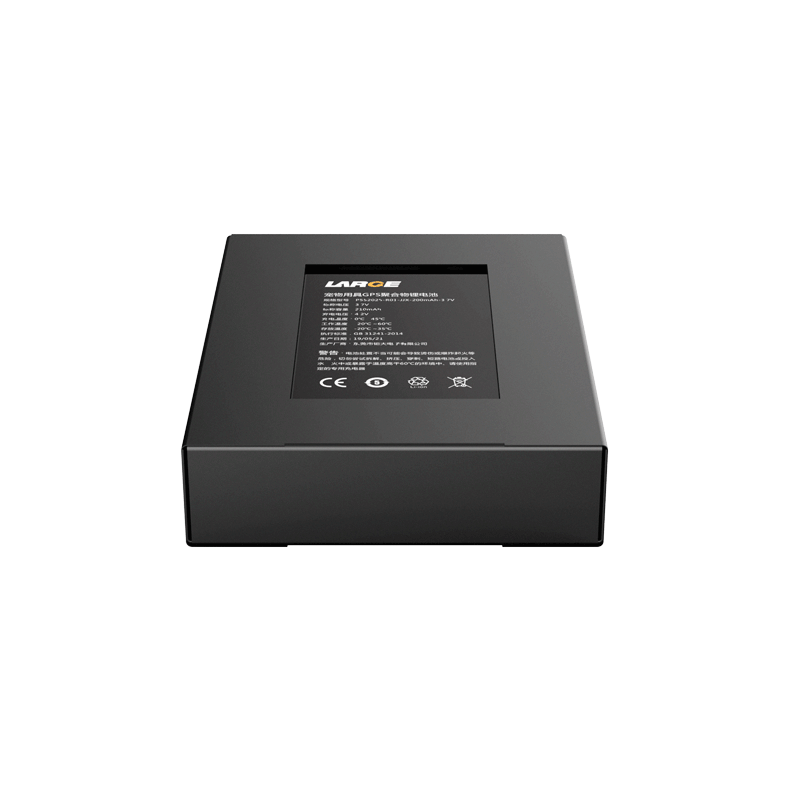

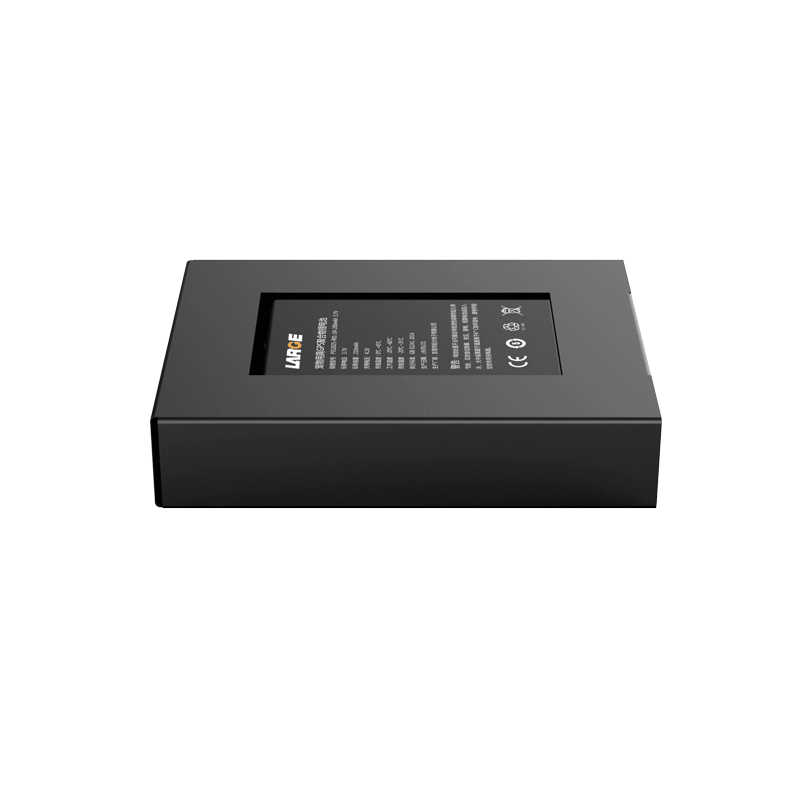

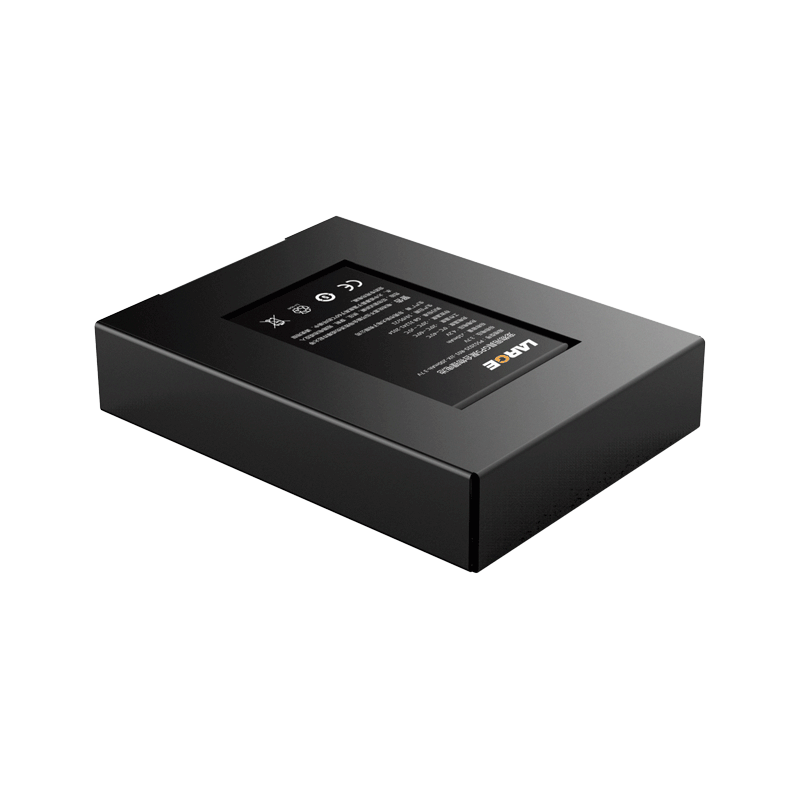

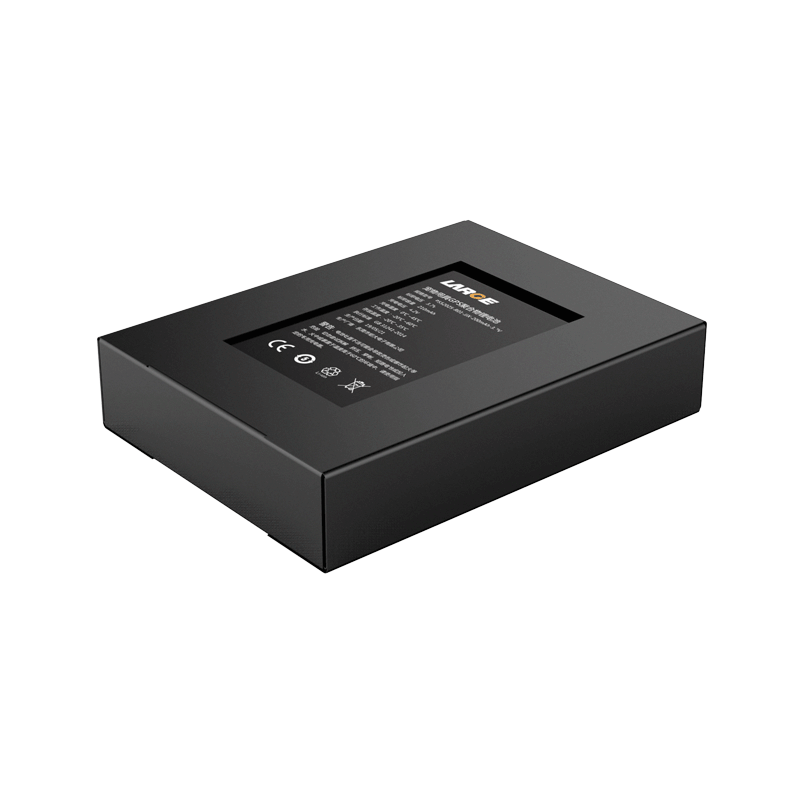

P552025 3.7V 200mAh Polymer Battery for Pet Appliance

Product number: 00BQ0001-31T

Cell model：512025/250mAh/3.7V

Battery specification: P552025-Q01-JJX-200mAh-3.7V

Nominal voltage：3.7V

Nominal capacity：210mAh

Charging voltage: 4.2V

Charging current: ≤40mA

Discharging current: ≤40mA

End-off voltage: 3.0V

Internal resistance: ≤260mΩ

Battery weight: about 7g

Product dimension: 27.5*20.6*5.7mm（MAX）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35℃

Battery case: PVC

Lithium ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection and discharge short-circuit protection.

Application field: GPS battery of pet appliance
