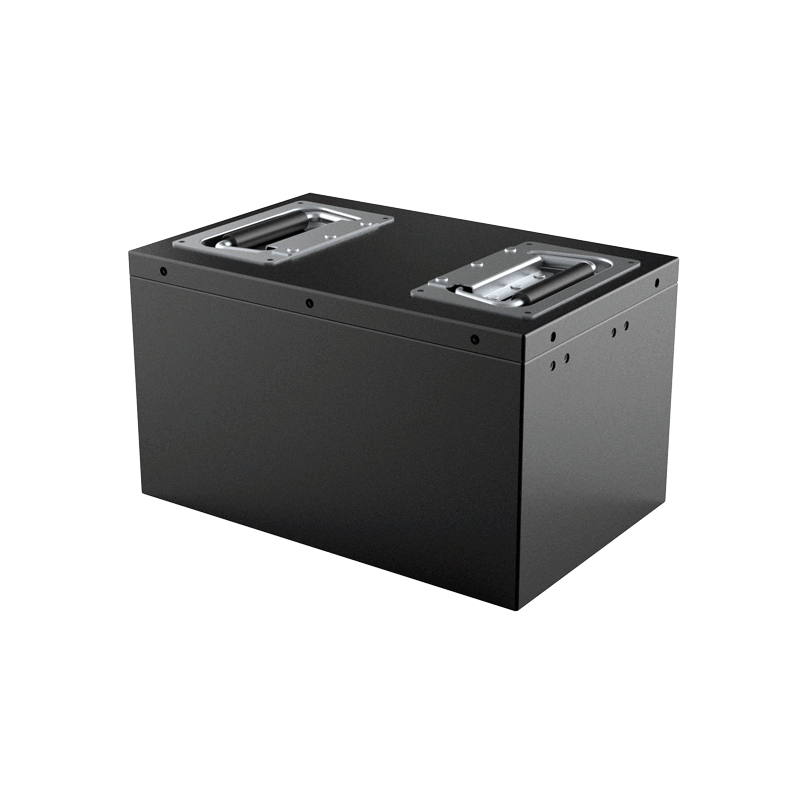

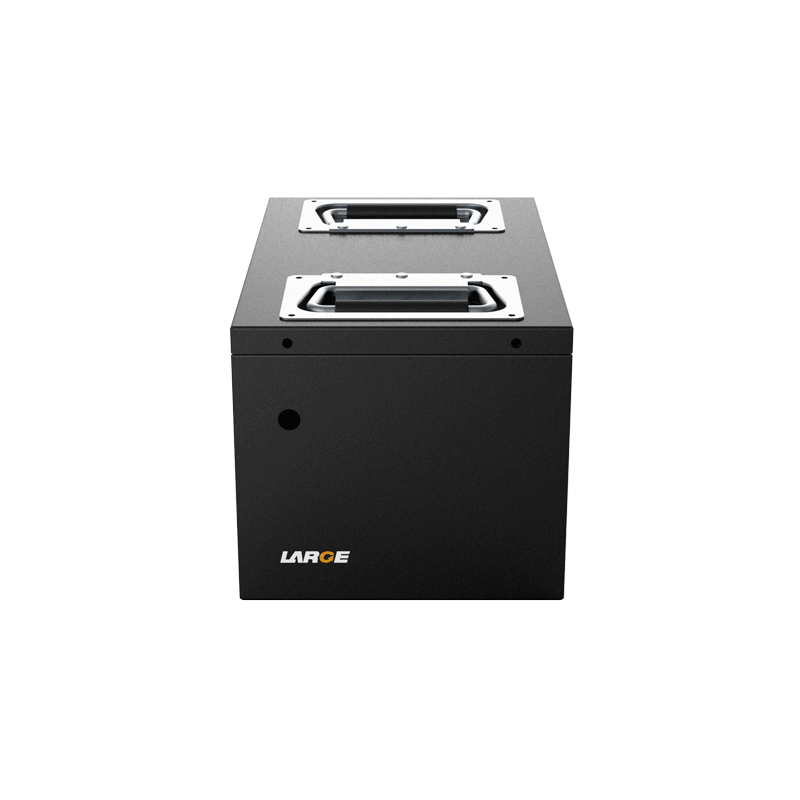

25.2V 60Ah Lithium Ion Battery Pack
Product Number:
06DQ030-10
Nominal voltage:
25.2V
Nominal capacity:
60Ah
Battery Configuration:
18650-7S18P
Dimension:
240 × 180 × 160 mm
Application:
Patrol Robot
Metal enclosure durability, SMBus communication, High capacity long runtime
Product Overview
Electrical Specifications
| Attribute | Parameter |
| Product Number | 06DQ030-10 |
| Cell Model | 18650-3400mAh-3.6V |
| Battery Configuration | 18650-7S18P |
| Nominal Voltage | 25.2V |
| Nominal Capacity | 60Ah |
| Rated Energy | 1512Wh |
| Charging Voltage | 28.7V |
| Discharge Cut-off Voltage | 7.5V |
| Standard Charging Current | 12A |
| Standard Discharge Current | 12A |
| Max Continuous Discharge Current | 20A |
| Internal Resistance | ≤200mΩ |
Mechanical & Environmental
| Attribute | Parameter |
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～35℃ |
| Dimensions | 240 × 180 × 160 mm (Max) |
| Weight | 7000g |
| Battery Case | Metal plate case |
| Protection System | Short circuit protection, overcharge protection, over-discharge protection, over-current protection |
Application Background
This battery solution is designed for patrol robots, widely used in park security patrol, power inspection, and industrial monitoring scenarios.
The robot requires long-duration autonomous operation and stable power output during movement, climbing, and load variations, demanding high endurance, stable discharge, and strong environmental adaptability.
Project Challenges
- Requires 8–12 hours of continuous operation
- 7S high-voltage platform with 60Ah large capacity load demand
- High peak power demand with up to 20A continuous discharge
- Outdoor operation requires wide temperature and high safety reliability
Customized Battery Solution
- 7S high-energy configuration: 25.2V output supports robot power system requirements
- Metal sheet housing: enhances mechanical strength and impact resistance for outdoor use
- Smart communication system: TI-SMBus BMS for real-time data and temperature monitoring
- Multiple protection design: overcharge, overdischarge, overcurrent, and short-circuit protection
Application Results
- Supports 8–12 hours continuous patrol operation
- 20A continuous discharge ensures stable power under complex terrain
- SMBus monitoring improves operational safety and system controllability
- Long cycle life reduces maintenance frequency and overall replacement cost
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
