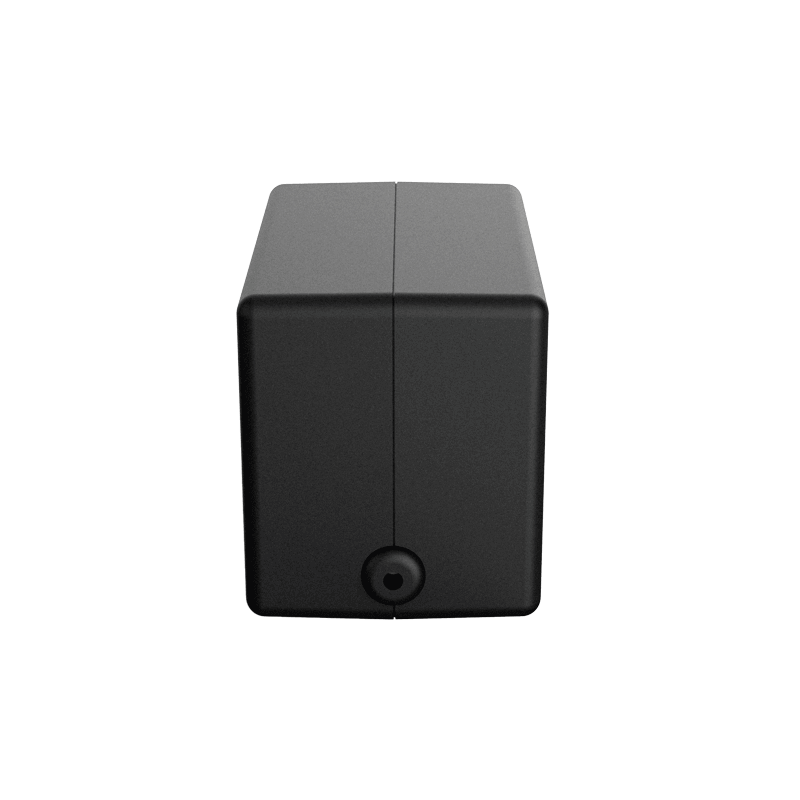

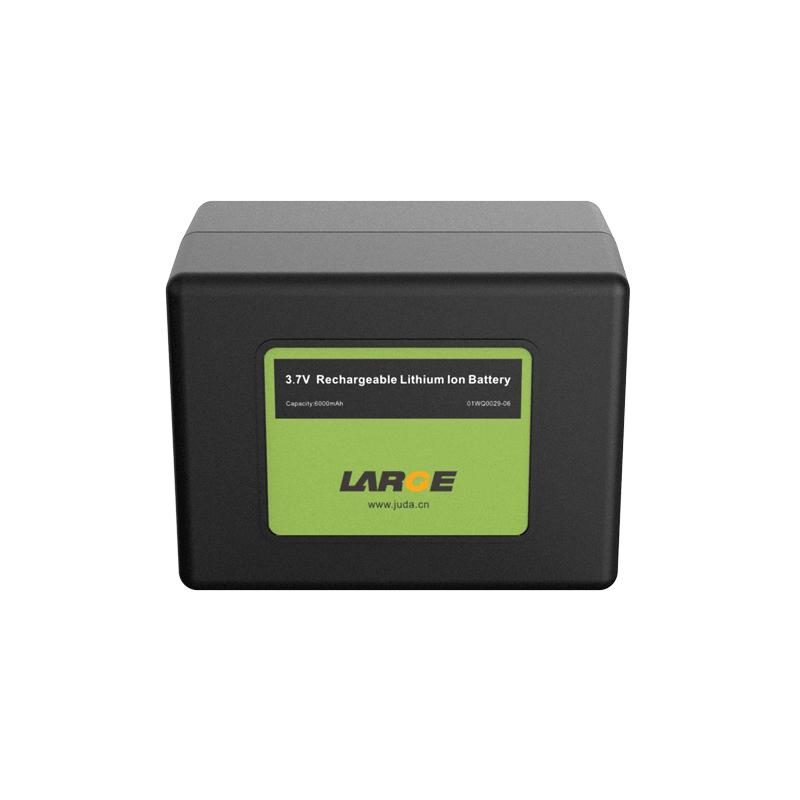

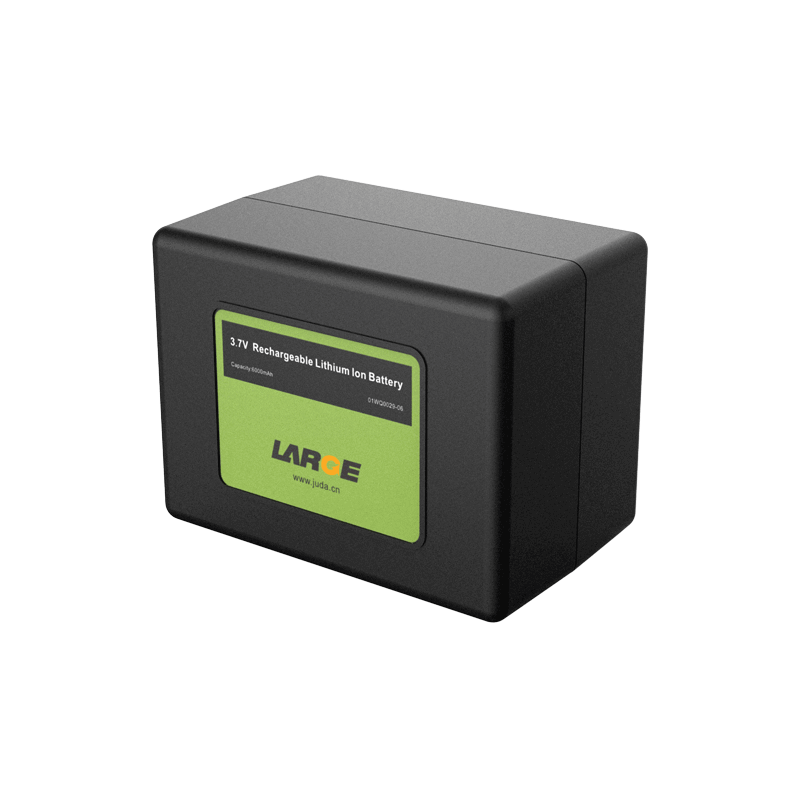

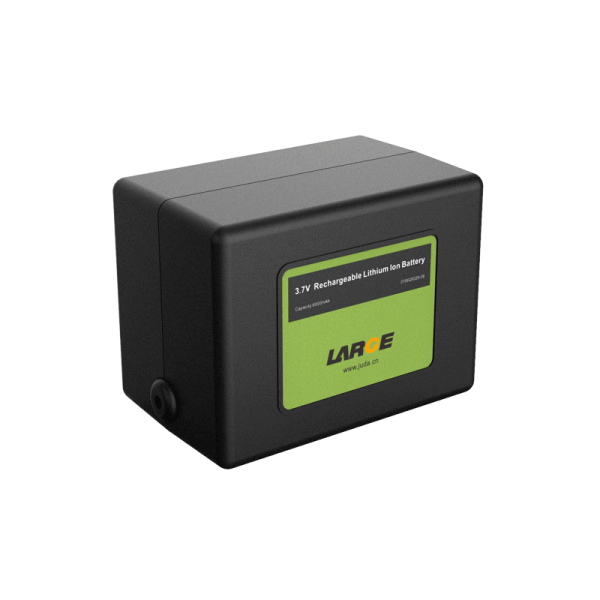

104058 3.7V 6000mAh Polymer Battery for Outdoor Monitor

Product Detail

Product number: 01WQ0029-06

Cell model:104058/1500mAh/3.7V

Battery specification: 104058/4P/6000mAh/3.7V(charge and discharge at low temperature)

Nominal voltage:3.7V

Nominal capacity:6000mAh

Charging voltage: 4.2V

Charging current: ≤2500mA

Discharging current: ≤5000mA

End-off voltage: 3.0V

Internal resistance: ≤120mΩ

Battery weight: about 160g

Product dimension: (70*45.85*52)±0.2mm

Charging temperature:-20~45℃

Discharging temperature: -40~55 ℃

Storage temperature: -20~35 ℃

Battery case: plastic housing

Lithium ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection and discharge short circuit protection.

Application field: outdoor monitor
