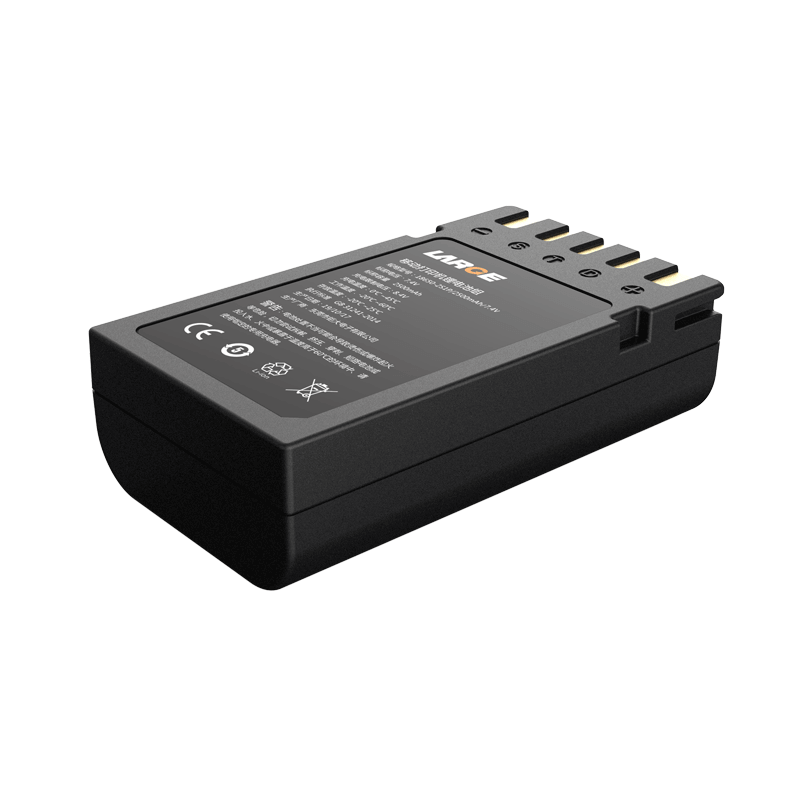

18650 7.4V 2500mAh Lithium Ion Battery Sanyo Battery for Mobile Printer

Product Detail

Product number: 03DQ0024-02T

Cell model:18650/2500mAh/3.7V

Battery specification: 18650-2S1P/2500mAh/7.4V

Nominal voltage:7.4V

Nominal capacity:2500mAh

Charging voltage: 8.4V

Charging current: 500MA

Discharging current: 2A

Instant discharging current: 2.5A

End-off voltage: 6.0V

Internal resistance: ≤250mΩ

Battery weight: 105g

Product dimension: 19.1+0/-0.2mm*41±0.2mm*71.5±0.2mm

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and over temperature protection, etc.

Application field: POS machine, mobile printer

Product features

1. It has ABS+PC shell, which increases the reliability and solidity of the battery.

2. Hardware output: adopt the gold-plated shrapnel output mode to increase the electric conduction reliability

3. Battery protection management: adopt imported protection chip with good stability, high precision monitoring and precise control, which greatly eliminates the potential safety risks.

4. The battery pack has good security, nice discharge performance and long cycling life.

5. The battery pack has long cycling life, which conforms to the principle of low carbon, energy conservation and environmental protection.
