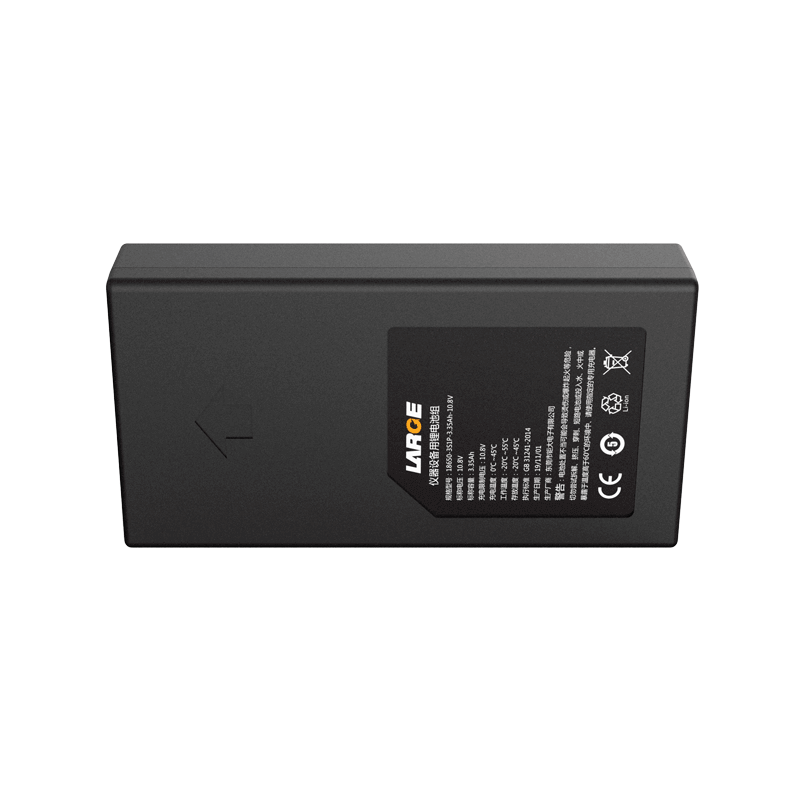

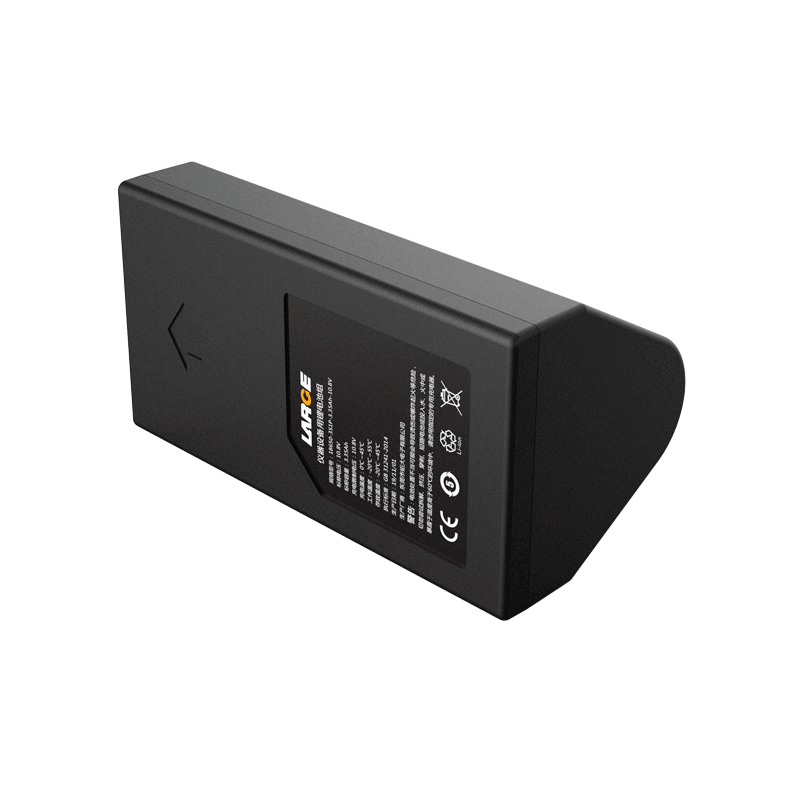

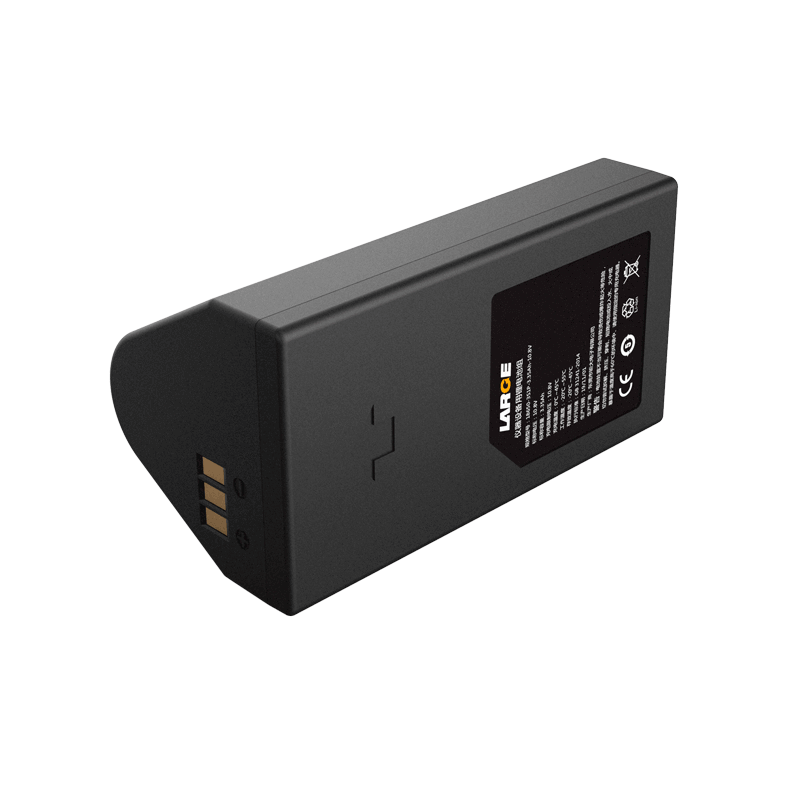

18650 10.8V 3.35Ah Lithium Ion Battery Samsung Battery for Apparatus

Product Detail

Product number: 01DQ0030-04

Cell model:18650-3.6V-3.35Ah

Battery specification: 18650-3S1P-3.35Ah-10.8V

Nominal voltage:10.8V

Nominal capacity:3.35Ah

Charging voltage: 12.6V

Charging current: ≤1.5A

Discharging current: 2.0A

Instant discharging current: 3.0A

End-off voltage: 8.25V

Internal resistance: ≤180mΩ

Battery weight: 160g

Product dimension: 75.0±0.2×39.6±0.2×37.0±0.2(mm)

Charging temperature:0~45℃

Discharging temperature: -20~55 ℃

Storage temperature: -20~45 ℃

Battery case: ordinary industrial grade

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: apparatus


Product features

Communication protocol: SMBUS communication protocol can transfer product data.

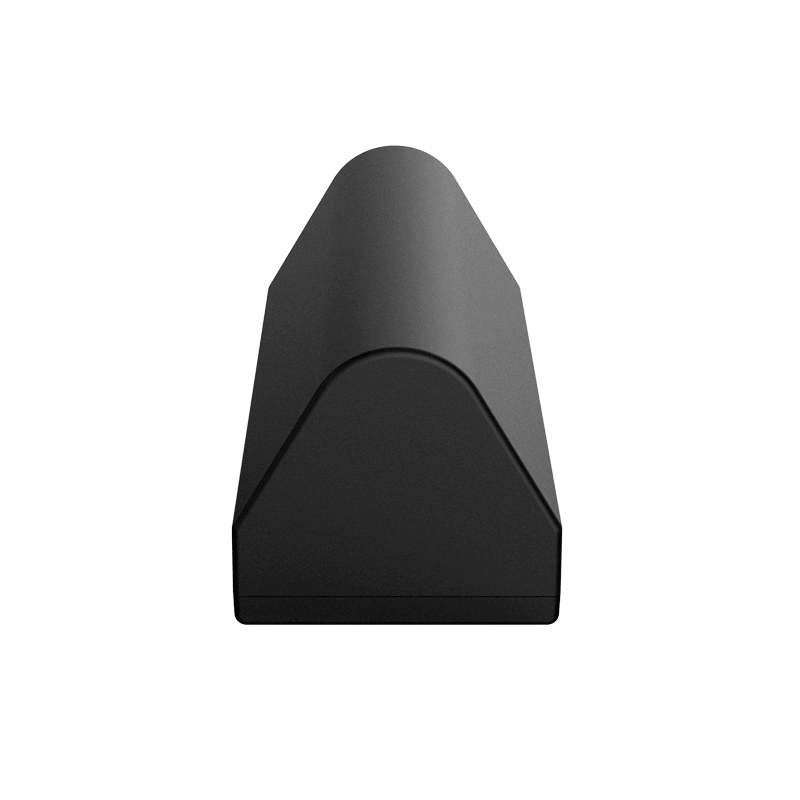

Triangle shape is easy to install.

Cell characteristics: volumetric ternary material battery pack

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
