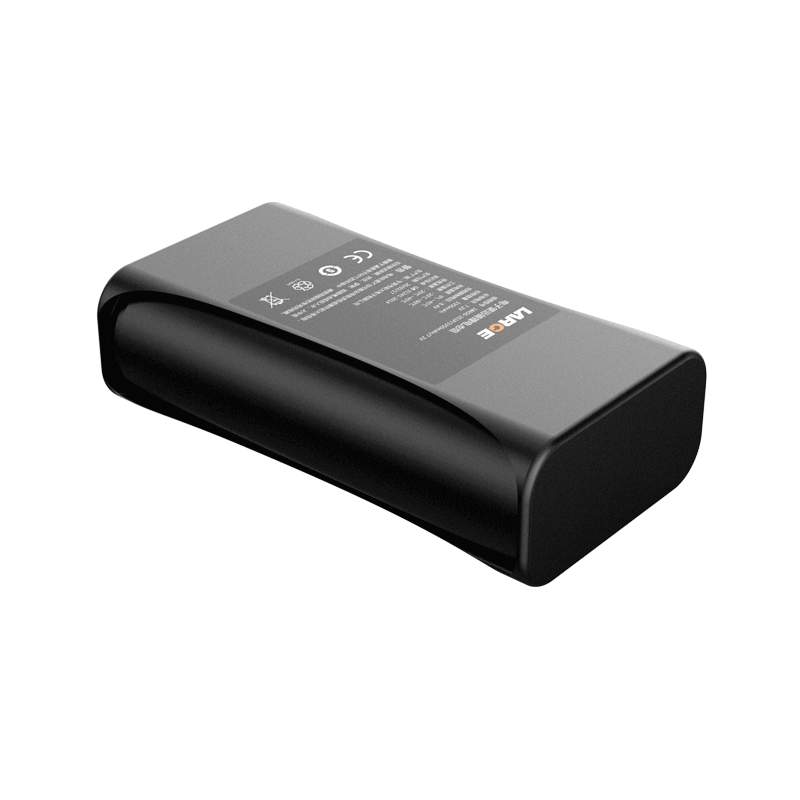

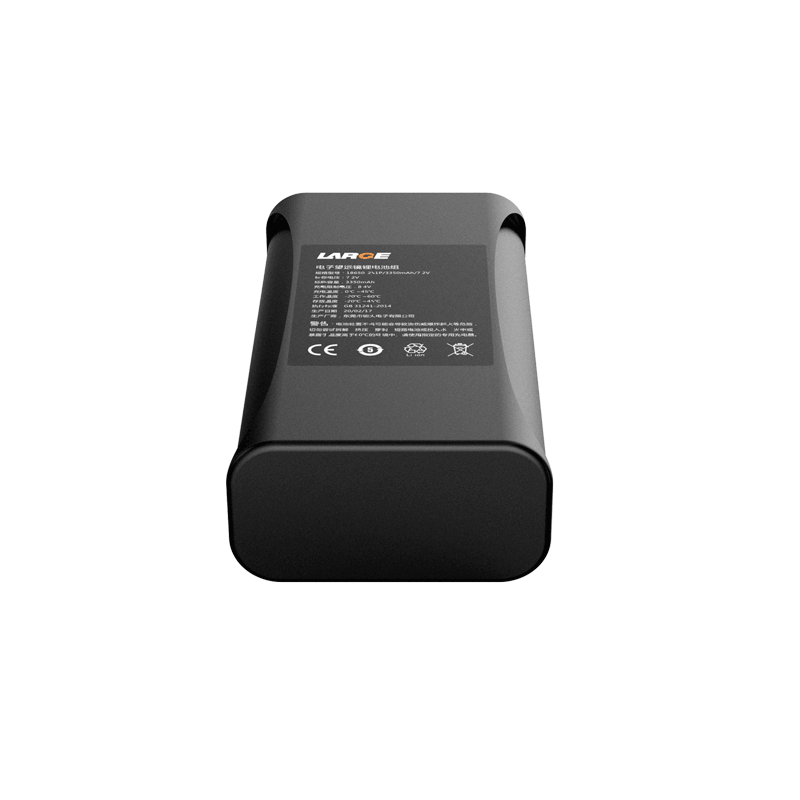

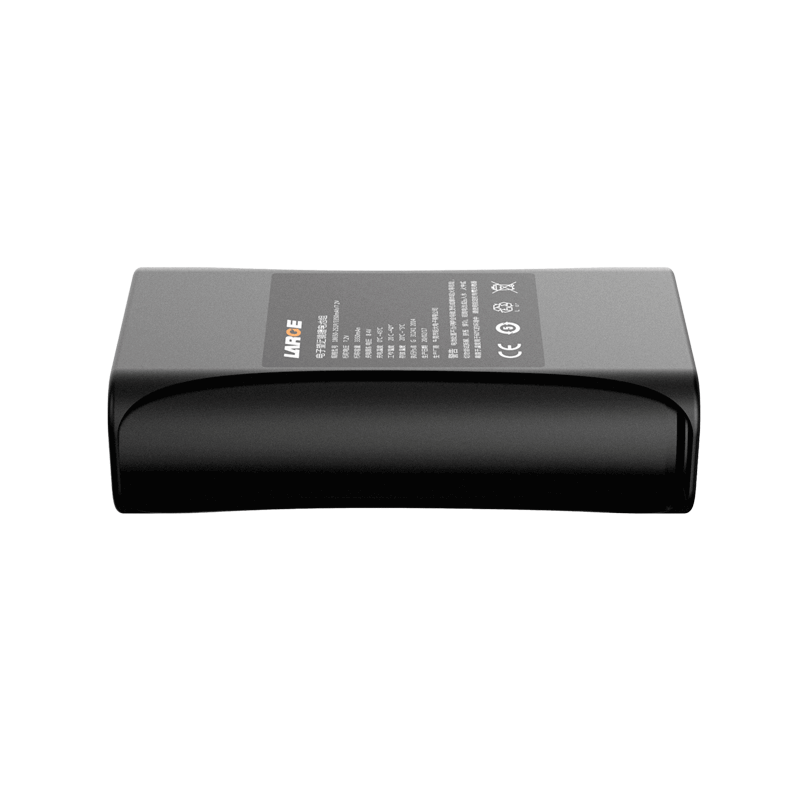

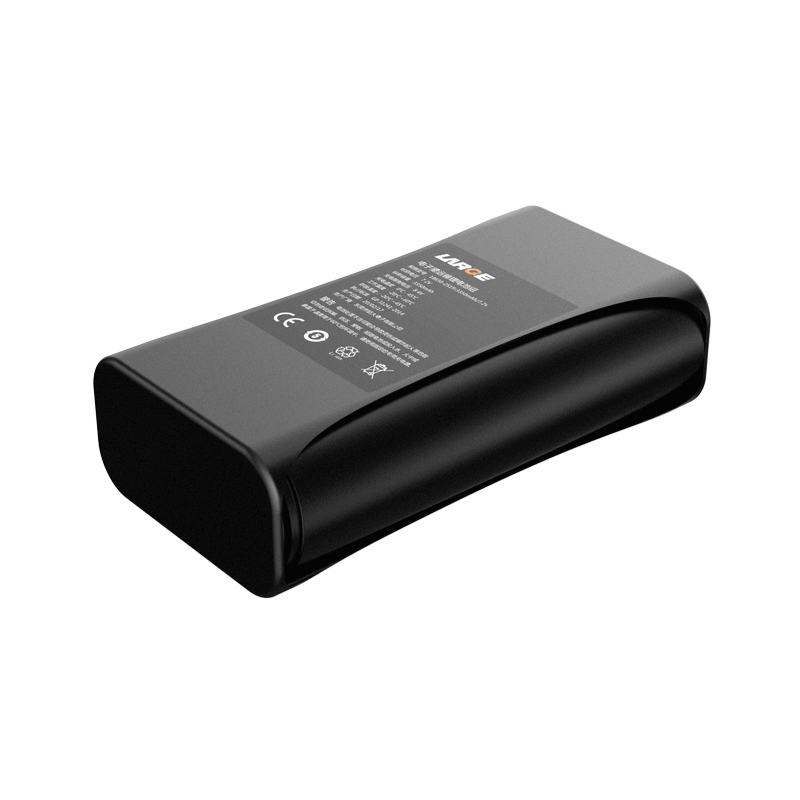

18650 7.2V 3350mAh Samsung Battery 18650 Battery for Electron Telescope
Product Number:
01DQ0023-40
Nominal voltage:
7.2V
Nominal capacity:
3350mAh
Battery Configuration:
18650-2S1P
Dimension:
70.0 × 37.5 × 19.5mm (Max)
Application:
consumer electronics and instrumentation devices
Multiple Protection Functions, Stable Power Output, Long Cycle Life
Product Overview
This battery is designed for consumer electronics and instrumentation devices, supporting continuous operation in compact and high-frequency usage scenarios. With stable output and multiple protection functions, it delivers reliable and safe power performance for long-term use.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 01DQ0023-40 |
| Cell Model | INR18650-35E/3350mAh/3.6V-SDI |
| Battery Configuration | 18650-2S1P |
| Nominal Voltage | 7.2V |
| Nominal Capacity | 3350mAh |
| Rated Energy | 24.12Wh |
| Charging Voltage | 8.4V |
| Discharge Cut-off Voltage | 6.0V |
| Standard Charging Current | 680mA |
| Standard Discharge Current | 680mA |
| Max Continuous Discharge Current | 3350mA |
| Internal Resistance | ≤150mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -20 ~ 60℃ |
| Storage Temperature | -20 ~ 45℃ (Within 3 Months) |
| Dimensions | 70.0 × 37.5 × 19.5mm (Max) |
| Weight | 130g |
| Battery Case | PC Film |
| Protection System | Short Circuit Protection, Overcharge Protection, Over Discharge Protection, Overcurrent Protection, ESD Protection, Temperature Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
