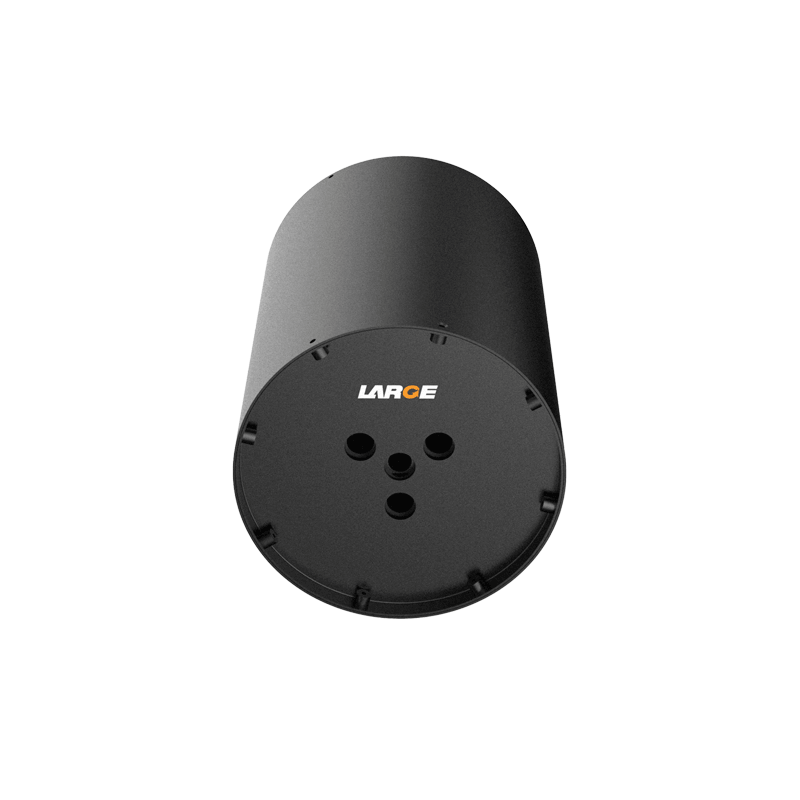

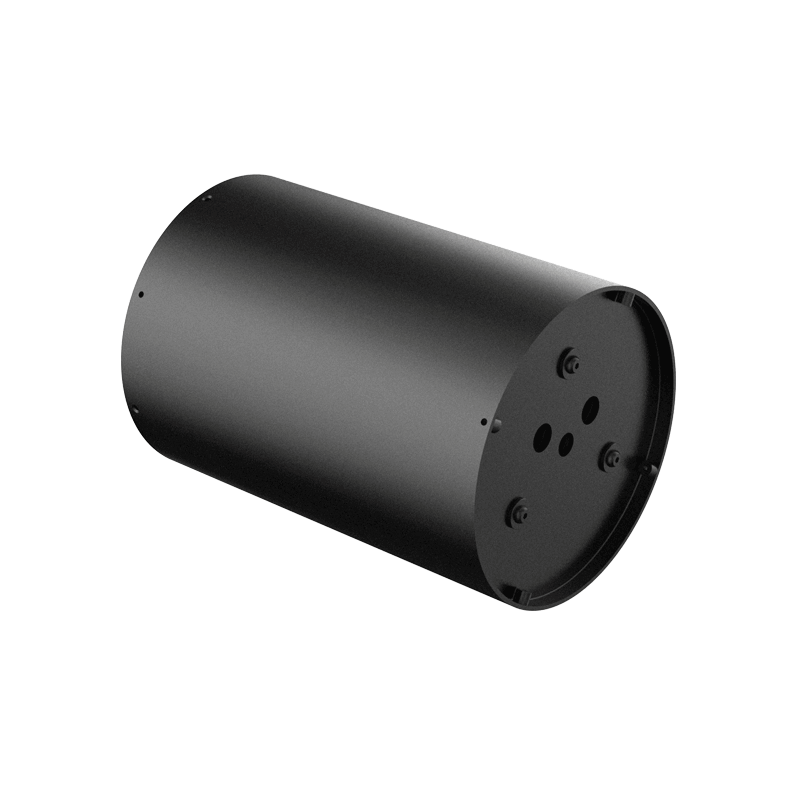

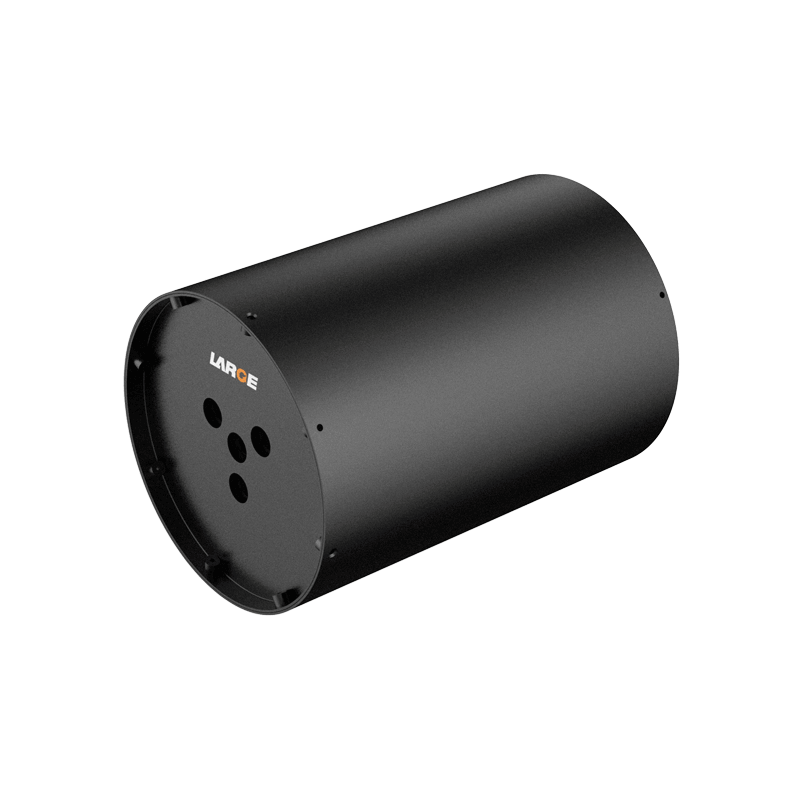

28Ah 22.4V 26650 Battery PLB Battery for Underwater Surveying and Mapping Robot

Product Detail

Product number: 08DQ0011-03

Cell model:26650-3500mAh-3.2V

Battery specification: 26650-7S8P-28Ah-22.4V

Nominal voltage:22.4V

Nominal capacity:28Ah

Charging voltage: 25.2V

Charging current: ≤14A

Discharging current: 5.6A

Instantaneous discharge current: 20A

End-off voltage: 17.5V

Internal resistance: ≤200mΩ

Battery weight: 5500g

Product dimension: height 240*φ168mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery package: metal plate shell

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over-temperature protection, overcurrent protection and ESD protection.

Application field: patrol robot, electric monitoring robot, mapping robot

Product features

Metal plate shell increases the reliability and solidity of the battery, so that the battery is easy to installed and carried.

Wire output: adopt high temperature wire output mode to increase the conductive reliability and high temperature resistance.

Data communication management: adopt TI-SMBus software management chip, accurate data transmission of SMBus communication, advanced temperature control, so as to eliminate the security risks.

The battery pack has good security, nice discharge performance and long cycle life.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
