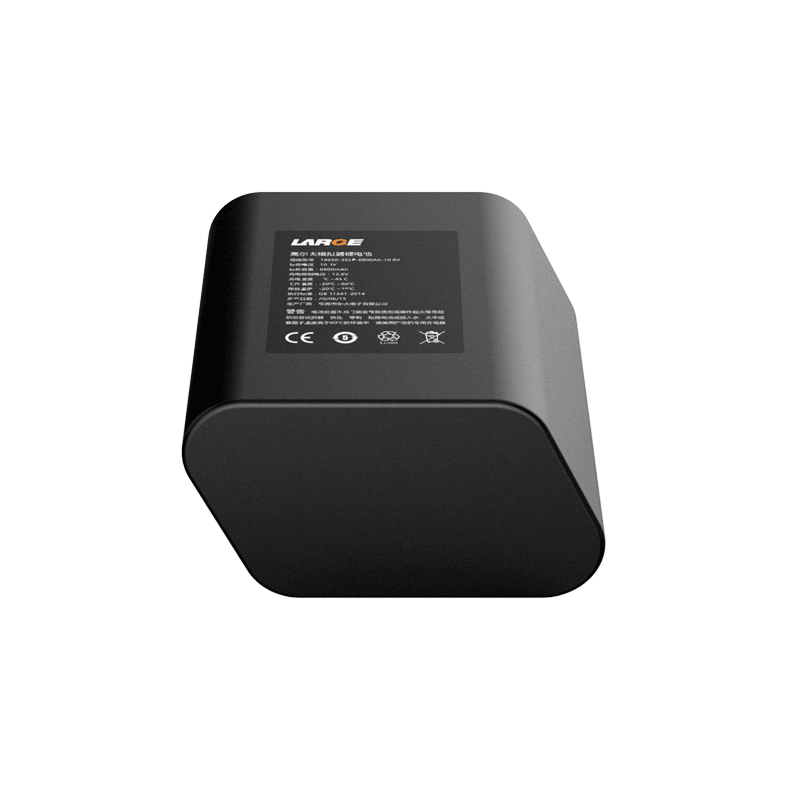

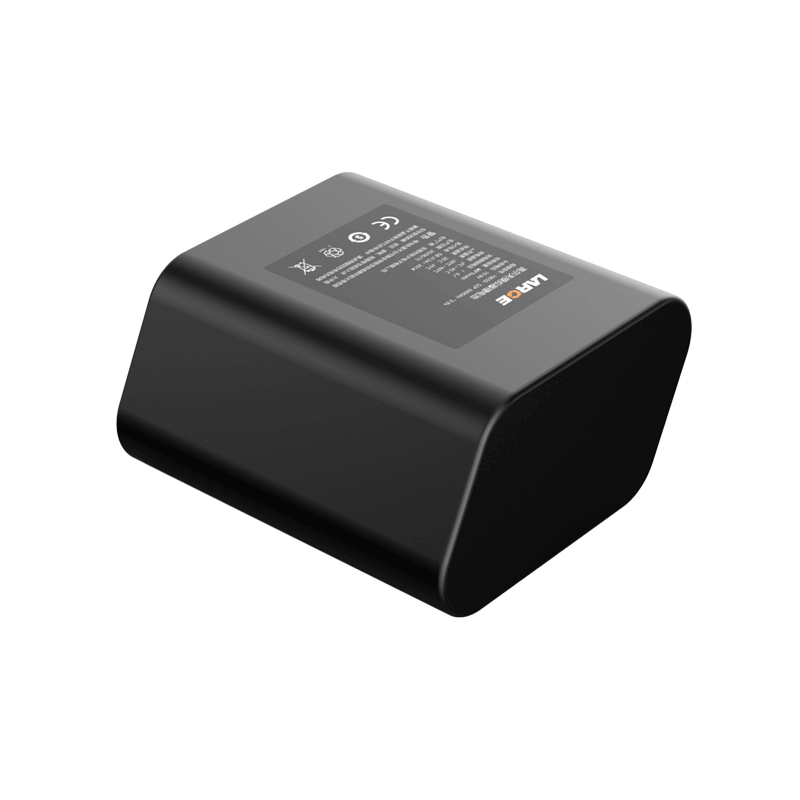

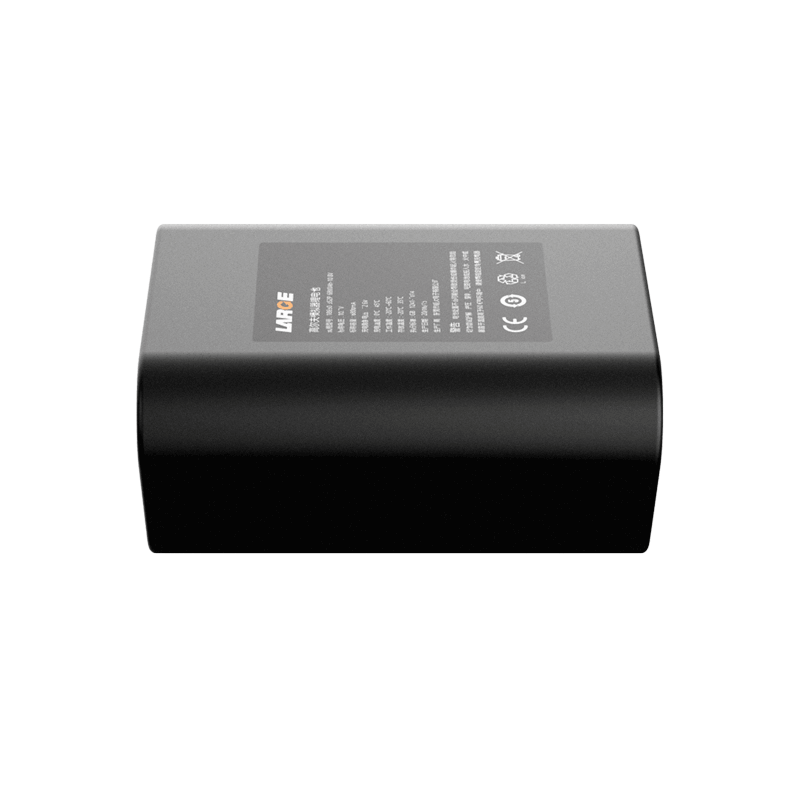

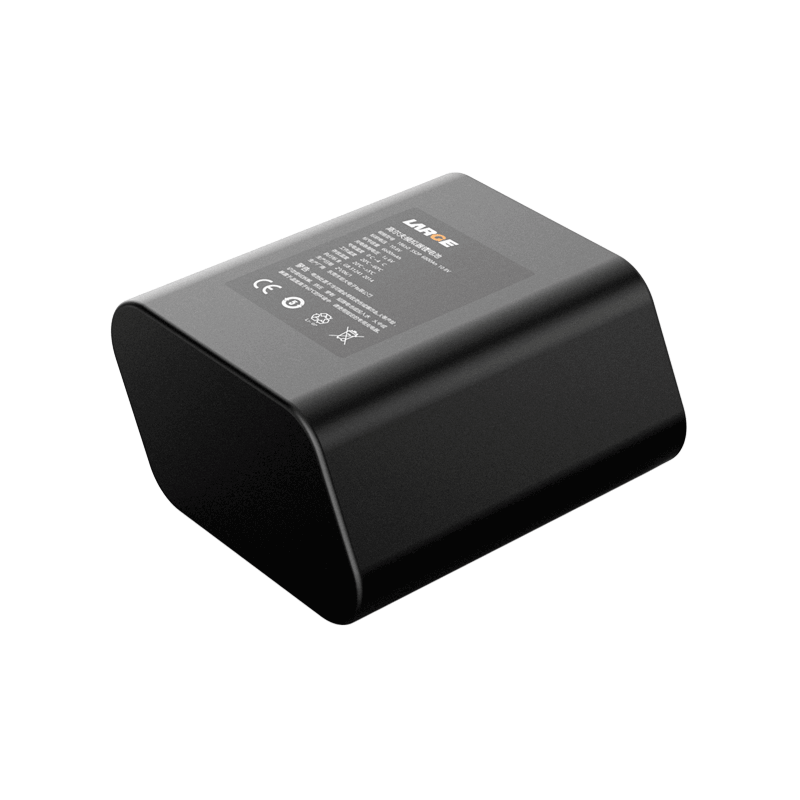

18650 10.8V 6800mAh Lithium Ion Battery for Golf Simulator

Product number: 05DQ0043-01

Cell model：18650-3350mAh-3.6V

Battery specification: 18650-3S2P-6800Ah-10.8V

Product dimension: 63.9*35.3*73mm（Max）

Nominal voltage：10.8V

Nominal capacity：6800mAh

Charging voltage: 12.6V

Charging current: 1.36A

Discharging current: 1.2A

Instant discharging current: 3.4A

End-off voltage: 9.0V

Internal resistance: ≤280mΩ

Battery weight: 320g

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35℃

Battery case: blue PVC shrink film package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, ESD protection, etc.

Application field: portable equipment, controller device, game device

Product features

1. Blue PVC shrink film package is simple, reliable and easy to install.

2. Connector plug outlet: adopt MOLEX plug output mode to increase conductive reliability.

3. Hardware output terminal: adopt gold plating shrapnel output mode to increase conductive reliability.

4. Battery management: Use imported Seiko protection chip with good stability, high precision monitoring, accurate control, ESD protection and temperature protection to maximize the elimination of security risks.

5.Discharge at low temperature -40℃.

6. The battery pack has good safety performance, nice discharge performance and long cycle life.

7. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
