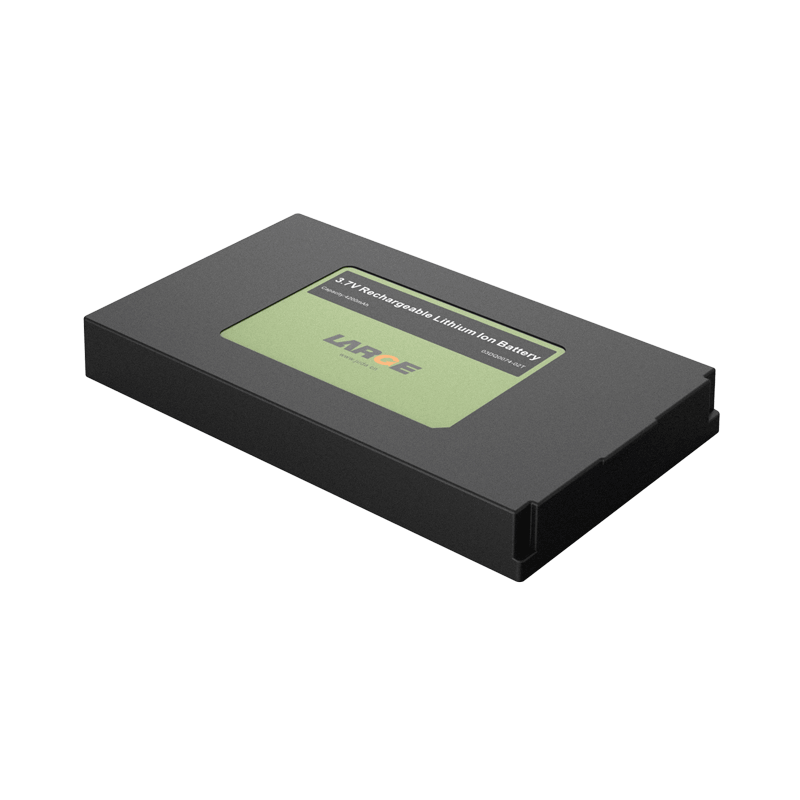

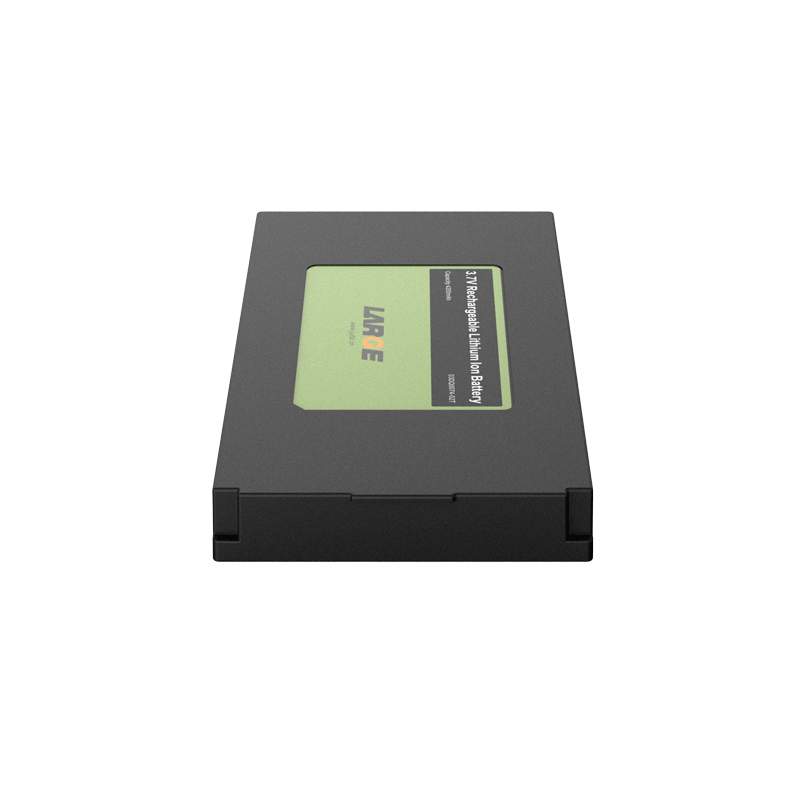

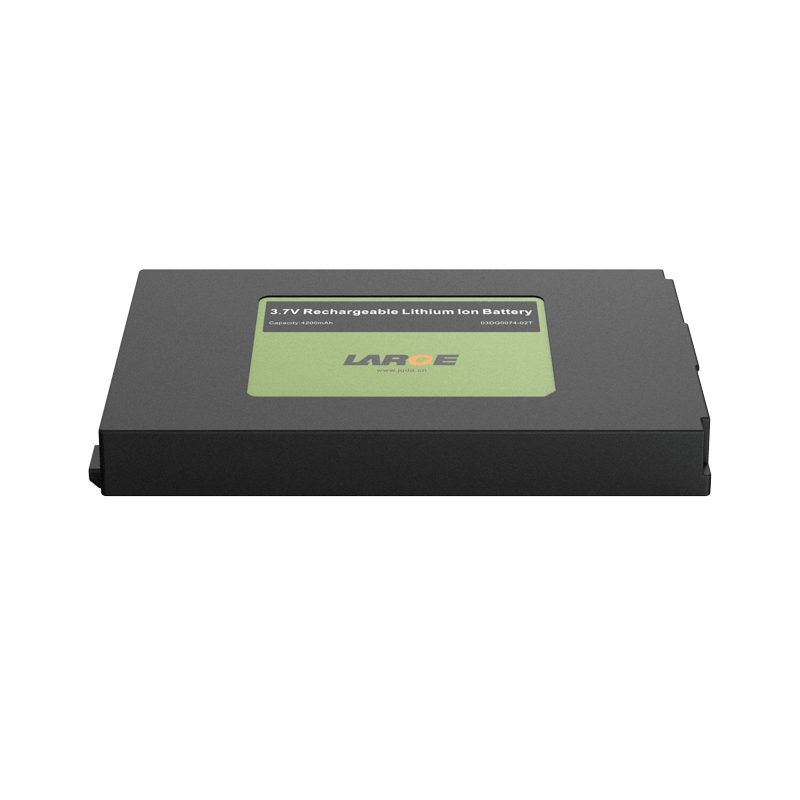

8300mAh 3.8V Low Temperature Battery Lithium Polymer Battery for Data Collection Terminal

Product Detail

Product number: 36AQ223-02

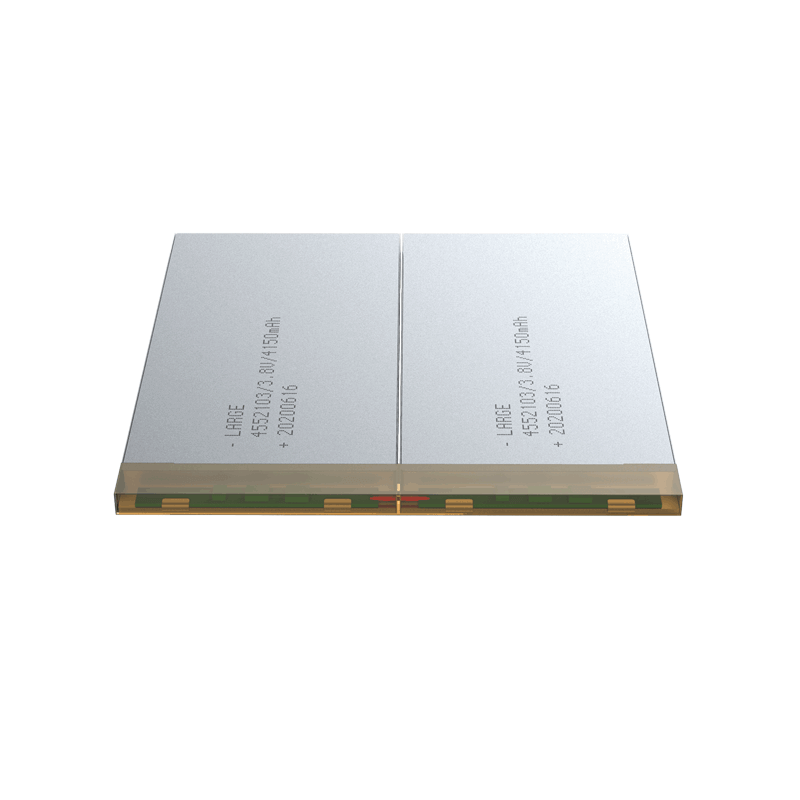

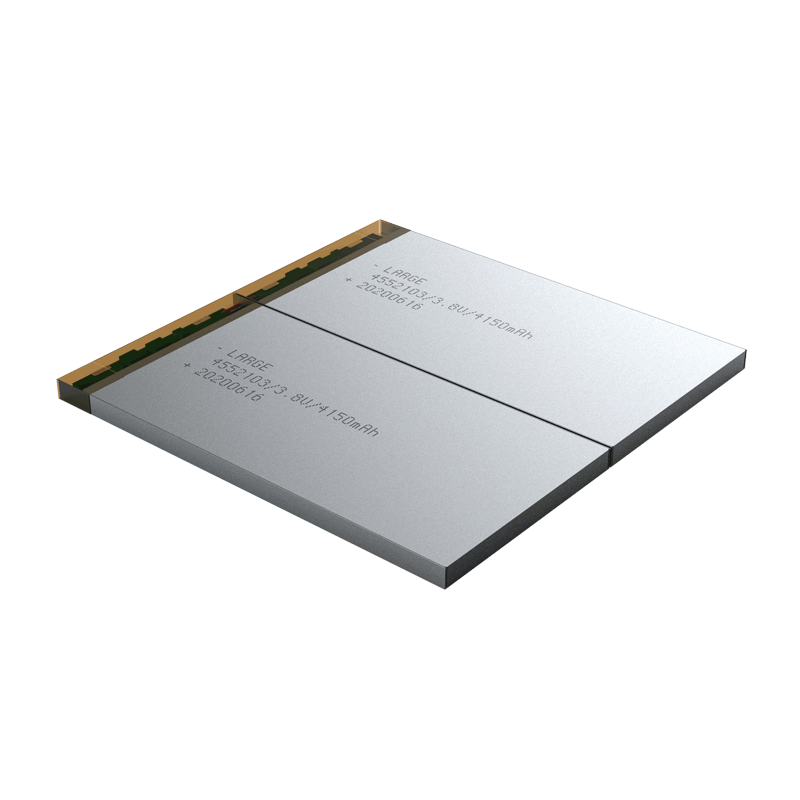

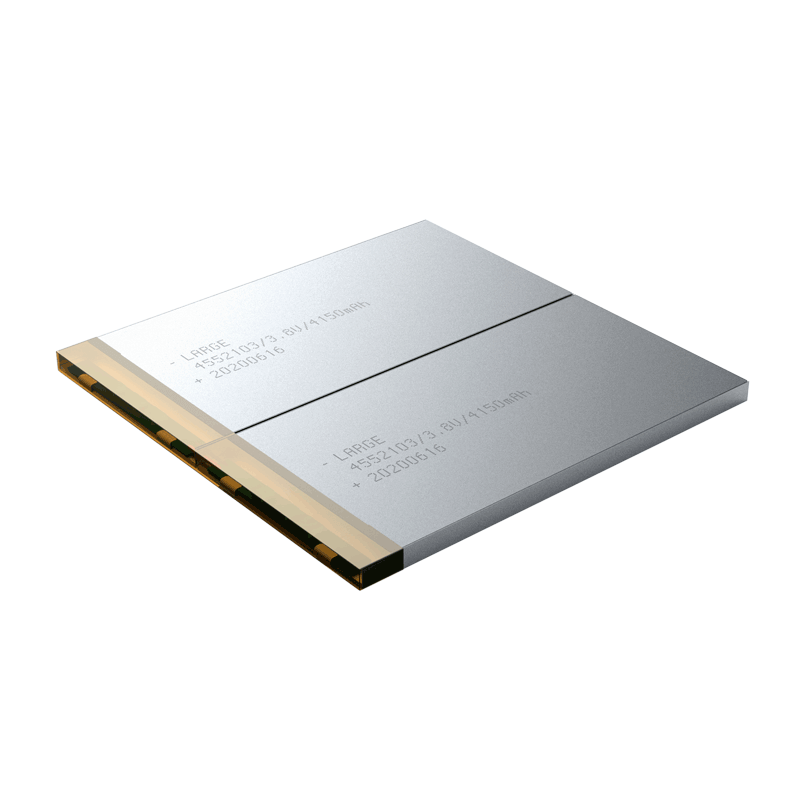

Cell model:4552103/4150mAh/3.8V

Battery specification: 4552103/1S2P/8300mAh/3.8V

Nominal voltage:3.8V

Nominal capacity:8300mAh

Charging voltage: 4.35V

Charging current: ≤3A

Discharging current: 1.6A

Instant discharging current: 3A

End-off voltage: 3.0V

Internal resistance: ≤180mΩ

Battery weight: 120g

Product dimension: 105*105*5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~+55℃

Storage temperature: -20~35℃

Battery case: simple package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: data collection terminal, handheld tester, portable handheld equipment


Product features

1. The battery has mall size, light weight, and is easy to assemble.

2. Connector plug terminal: adopt MOLEX output mode to increase conductive reliability.

3. Low temperature -40℃ discharging lithium ion battery

4. Battery protection chip: Use imported Seiko protection chip with good stability, high precision monitor and accurate control to maximize the elimination of safety risks.

5. The battery pack has good safety performance, nice discharge performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
