Custom Lithium ion Battery Pack

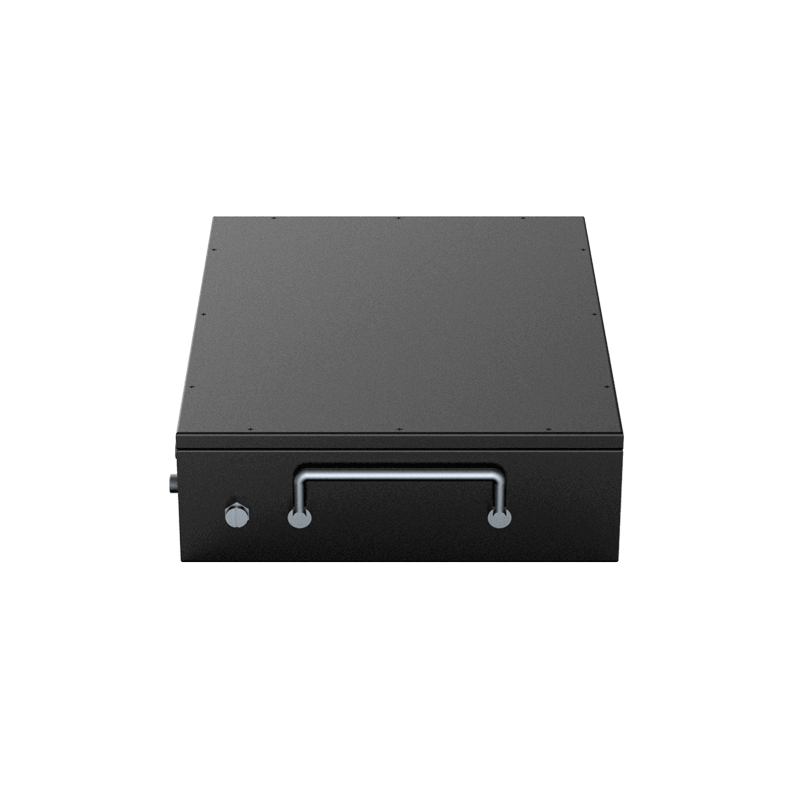

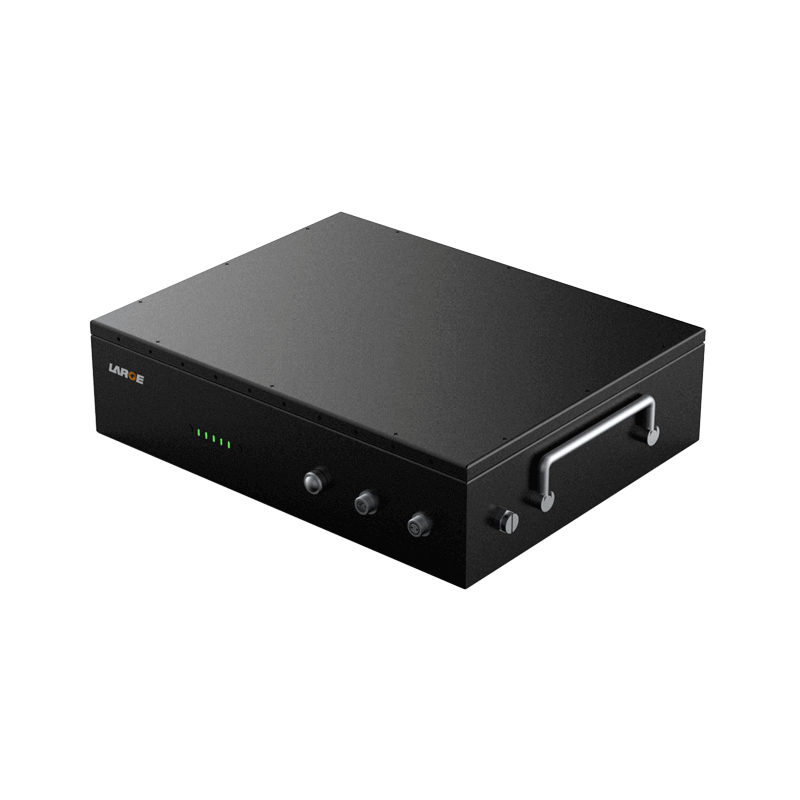

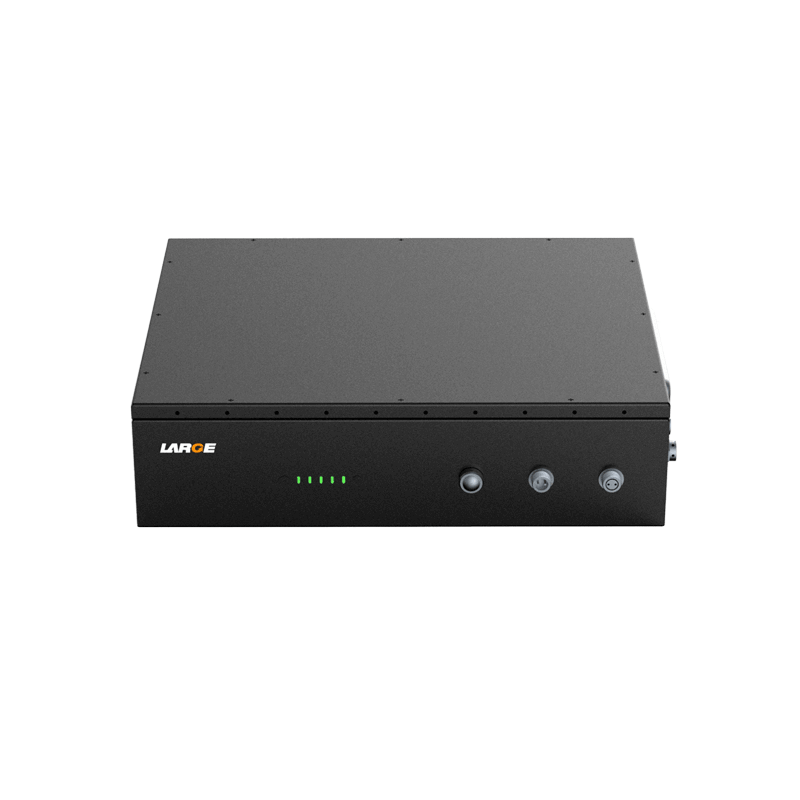

12.8V 84Ah Lithium Iron Phosphate Battery Pack For Vehicle Monitoring Equipment

Product Detail

Product number: 40AQ001-02

Cell model:26650/3.2V/3500mAh

Battery specification: 26650-4S24P/84Ah/12.8V

Nominal voltage:12.8V

Nominal capacity:84Ah

Charging voltage: 14.6V

Charging current: 5A

Discharging current: 7.5A

Instant discharging current: 10A

End-off voltage: 10V

Internal resistance: ≤200mΩ

Battery weight: 14.5kg

Product dimension: 380*300*100mm

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45℃

Battery case: metal plate case

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection ,over current protection, temperature protection, equilibrium, etc.

Application field: vehicle monitoring equipment

Product features

1.Shockproof: through the design of shockproof structure filled with cold-rolled metal plate housing, the requirements of high safety and high reliability are achieved.

2.Waterproof: the waterproof design of cold-rolled metal plate shell meets the waterproof requirements of IP65.

3.Using TI electric meter and single chip microcomputer, the data transmission and the electric quantity are accurate.

4.LED power display: the battery charge and discharge state is displayed, which improves the effect of identifying product status.

5.LED switch: control the LED by switch without cutting off the power supply.

6.The battery pack has good security with temperature probe and fire extinguishing device. When the temperature exceeds, it will automatically start protection.

7. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
