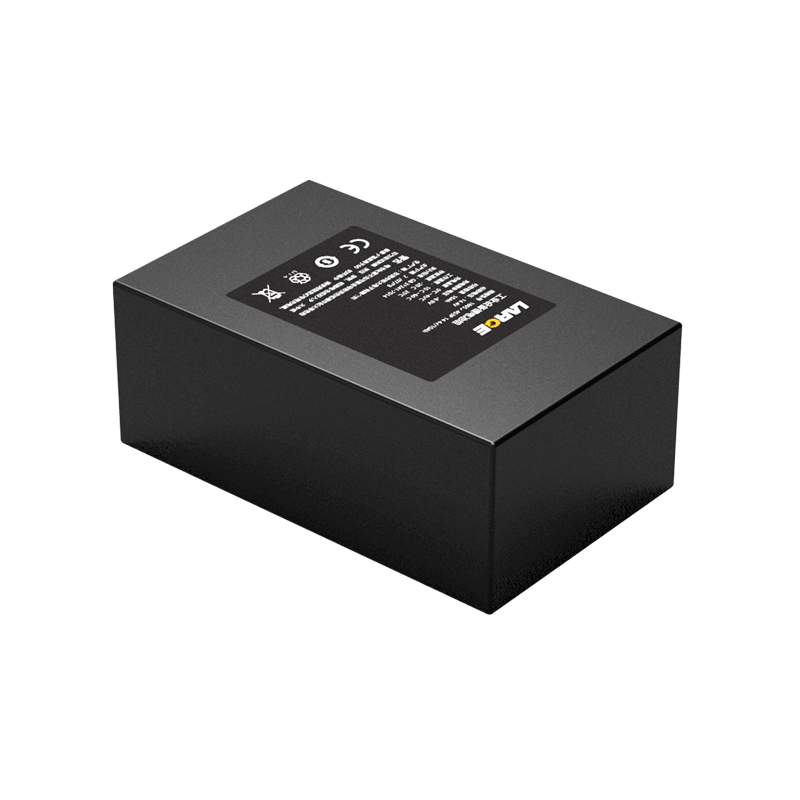

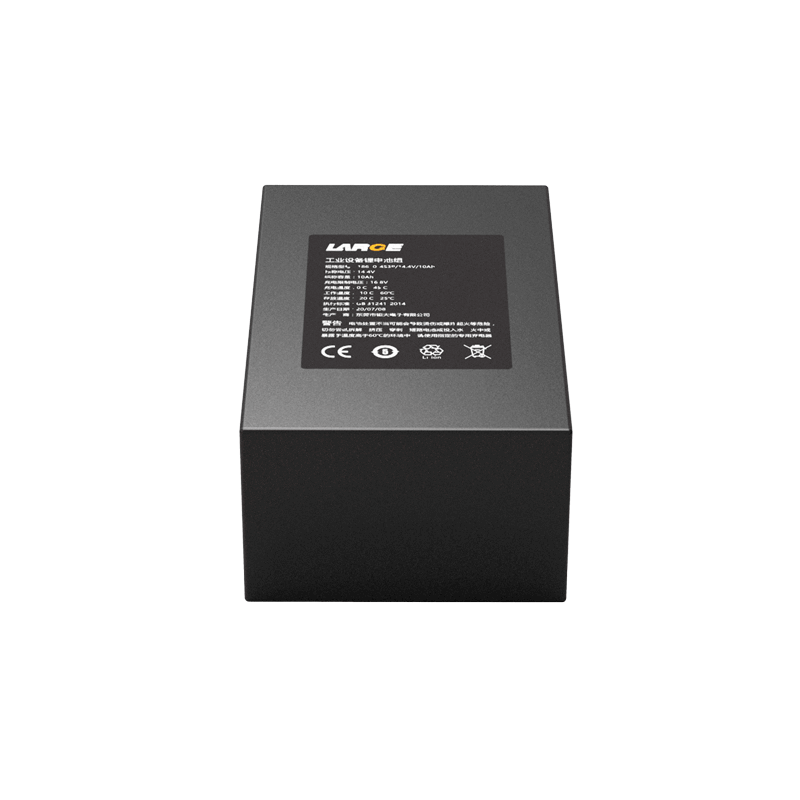

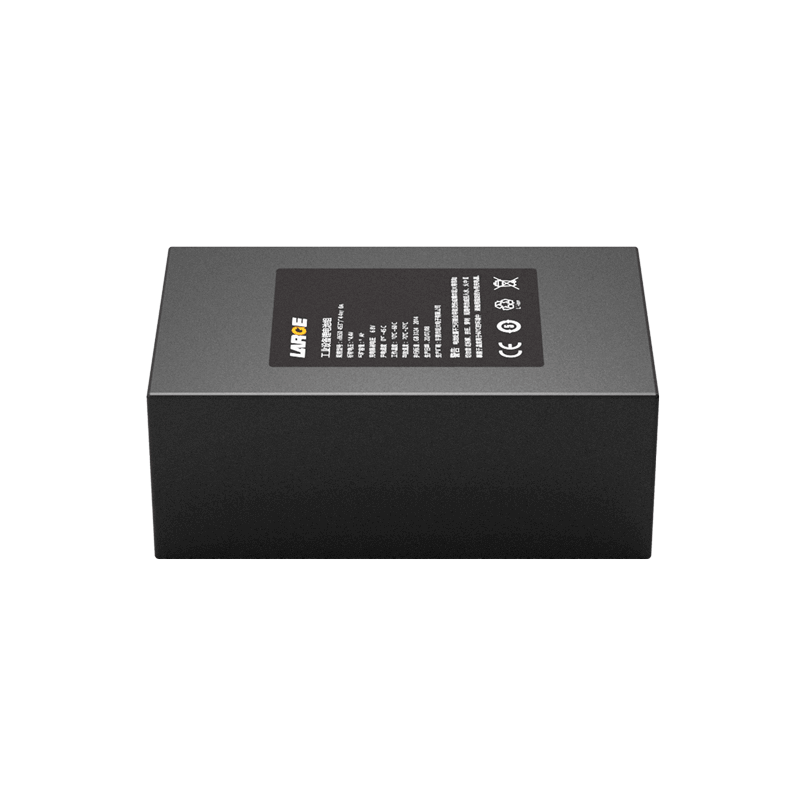

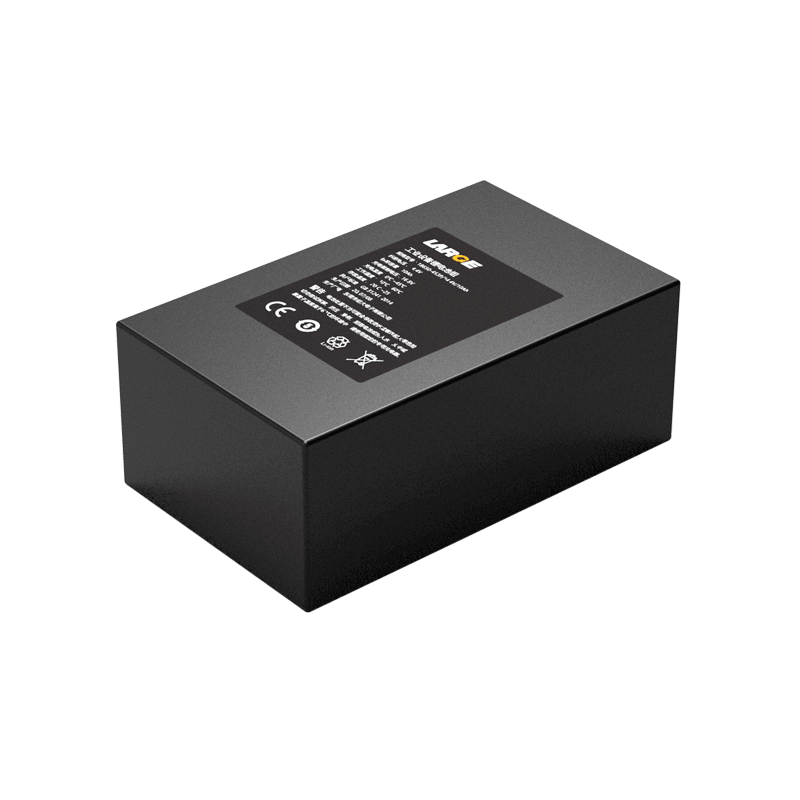

18650 14.4V 10Ah Samsung Lithium Battery Pack for Industrial Testing Equipment With SMBUS Communication Protocol

Product Detail

Product number: 36AQ203-04

Cell model:INR18650-35E/3.6V/3350mAh

Battery specification: 18650-4S3P/14.4V/10Ah

Nominal voltage:14.4V

Nominal capacity:10Ah

Charging voltage: 16.8V

Charging current: ≤4A

Discharging current: 2A

Instant discharging current: 10A

End-off voltage: 12V

Internal resistance: ≤120mΩ

Battery weight: 700g

Product dimension: 111.5*68.5*43.5(mm)

Charging temperature:0~45℃

Discharging temperature: -10~60℃

Storage temperature: -20~25℃ (less than 12 month)

Battery case: PVC film

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection and SMBUS communication protocol

Application field: industrial testing equipment


Product features

1.Intelligent battery with internal multiple protection is safe and reliable.

2.Imported cell: its energy density ratio is very high.

3.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4.Special shape design meets the requirements of various special structures.

*
*
*
