Custom Lithium ion Battery Pack

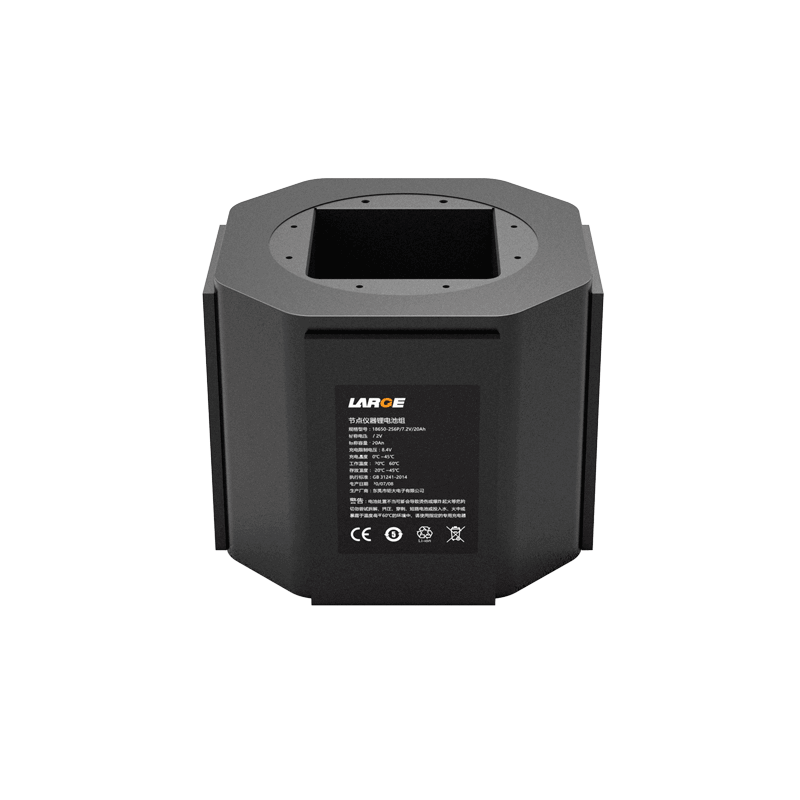

18650 7.2V 20Ah Lithium Battery Pack For Node Instrument

Product Detail

Project number: 37DZ078-01

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650-2S6P/7.2V/20Ah

Nominal voltage:7.2V

Nominal capacity:20Ah

Charging voltage: 8.4V

Charging current: ≤6A

Discharging current: 4A

Instant discharging current: 8A

End-off voltage: 5V

Internal resistance: ≤110mΩ

Battery weight: 600g

Product dimension: 86*86*68mm

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45℃

Battery case: bracket and PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, temperature protection, etc.

Application field: node instrument

Product features

1.The self-consumption of battery is small.

2. The battery has temperature protection.

3.The battery pack has good security and long cycle life.

4.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

5.The battery adopts cold injection molding process
