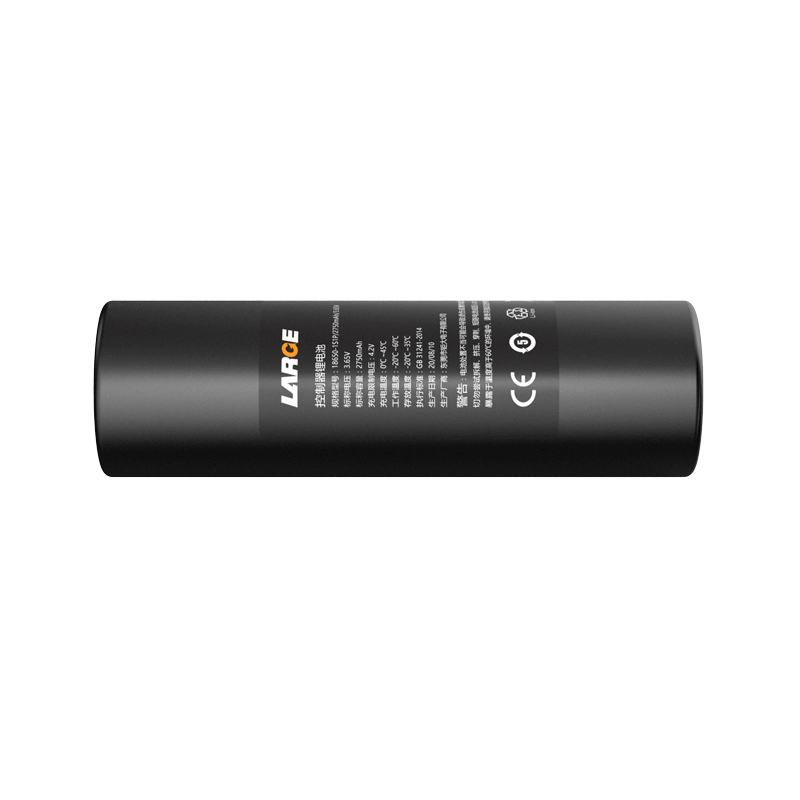

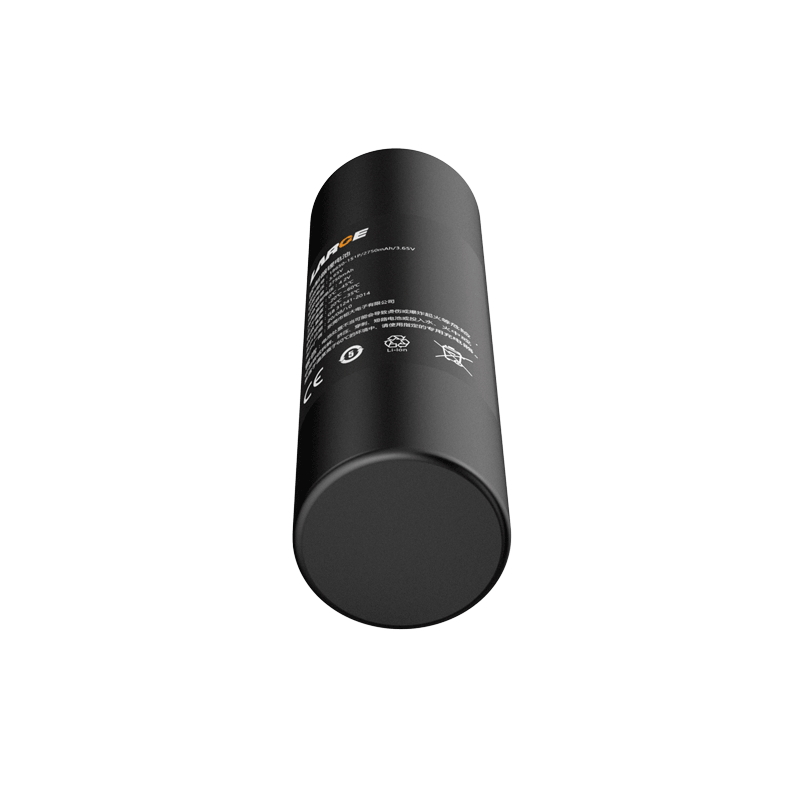

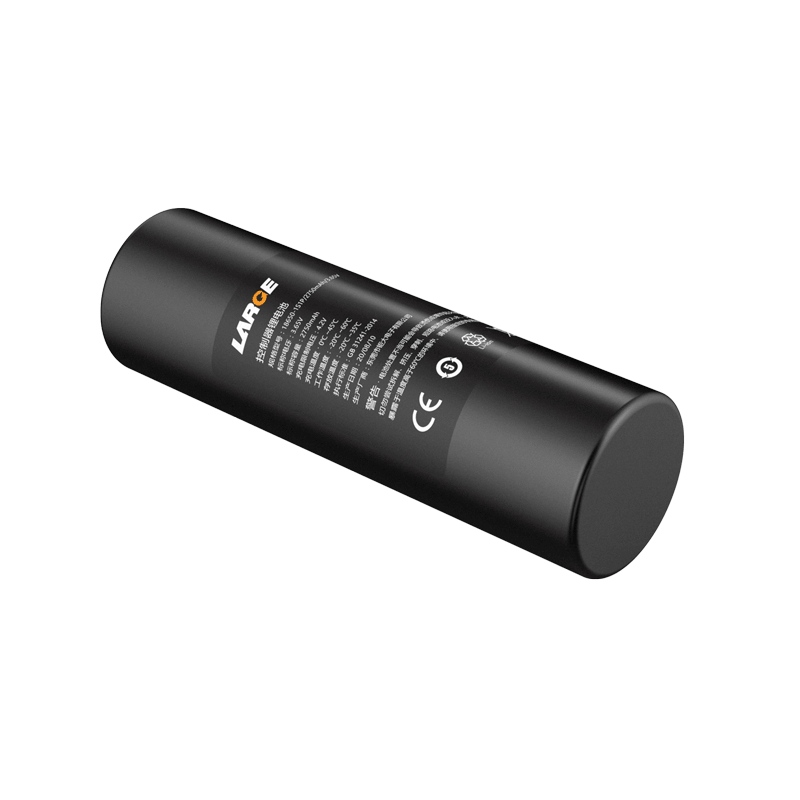

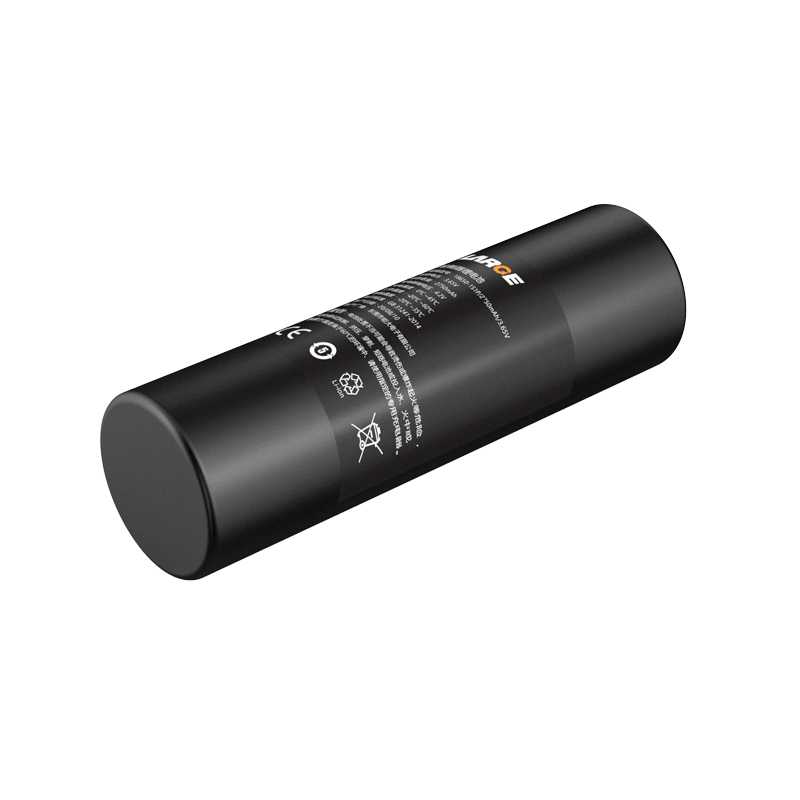

18650 3.65V 2750mAh Lithium Battery For Controller

Product Detail

Product number: 06DQ010-06
Cell model:18650/2750mAh/3.65V
Battery specification: 18650-1S1P/2750mAh/3.65V
Product dimension: 72*φ19.5mm(Max)
Nominal voltage:3.65V
Nominal capacity:2750mAh
Charging voltage: 4.2V
Charging current: ≤2.7A
Discharging current: ≤2.7A
End-off voltage: 2.5V
Internal resistance: ≤150mΩ
Battery weight: 50g
Charging temperature:0~45℃
Discharging temperature: -20~60℃
Storage temperature: -20~35℃
Battery case: blue PVC heat shrinkable film
Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, ESD protection, etc.
Application field: portable controller devices and other portable devices


Product features
1.Blue PVC heat shrinkable film package is simple and reliable, and it is easy to install.
2.Connector plug outlet: MOLEX plug output mode is adopted to increase the conductive reliability of the plug.
3.Battery protection management: Adopt imported Seiko protection chip with high stability, high precision monitoring and precise controlling, which can eliminate the potential safety hazard to the maximum extent.
4.The battery pack has good security, nice discharge performance and long cycle life.
5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
