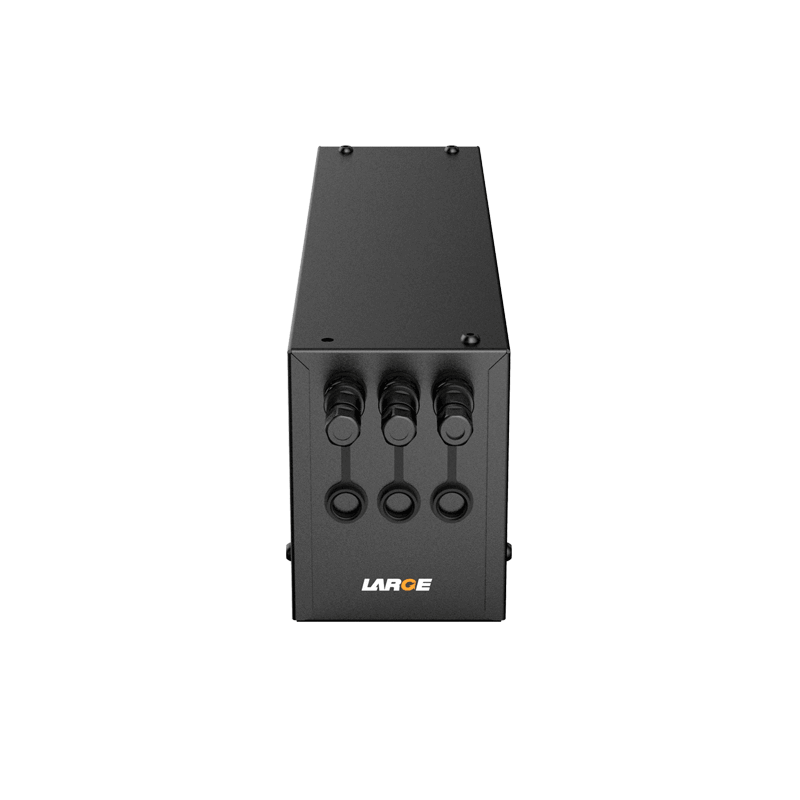

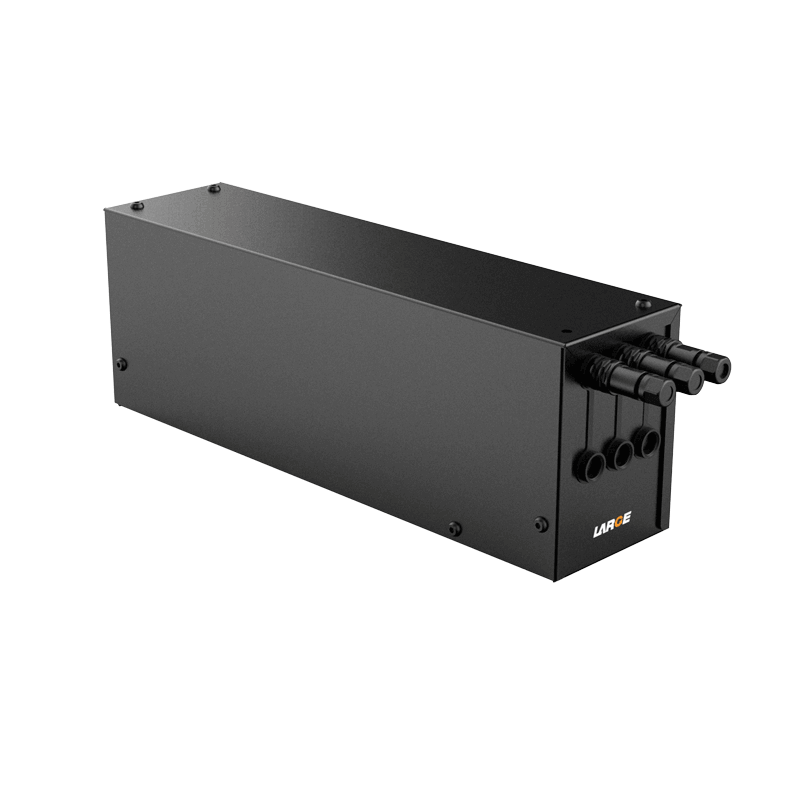

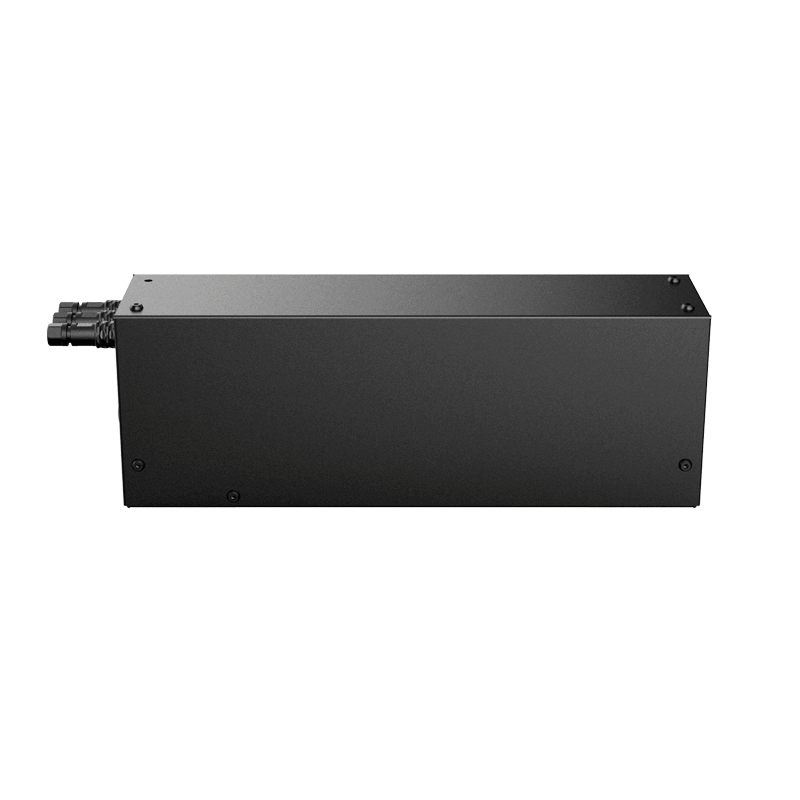

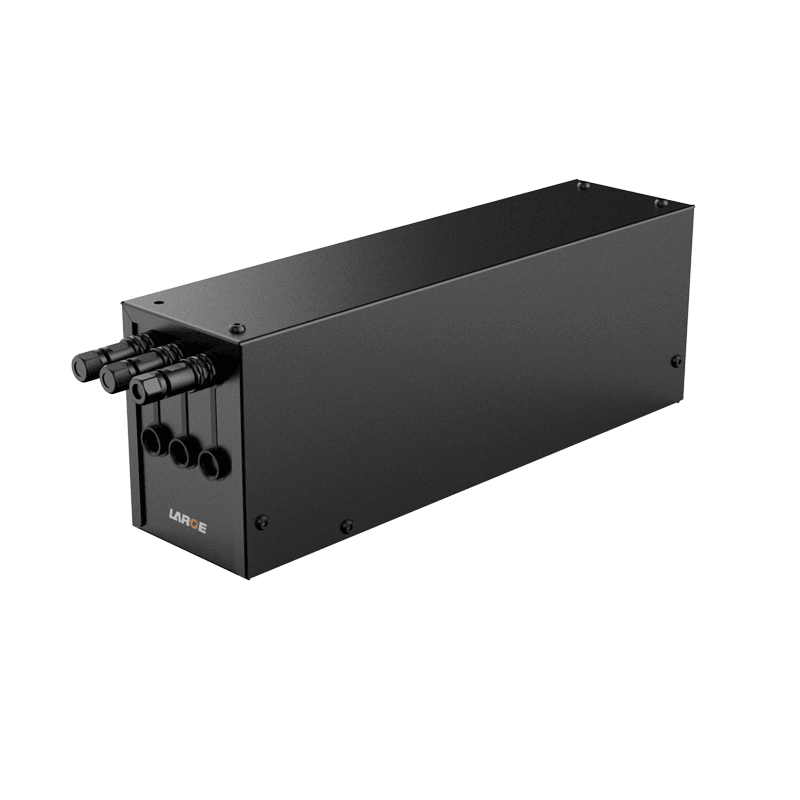

26650 19.2V 6600mAh Lithium Iron Phosphate Battery Pack For Medical Cardiopulmonary Machine With CAN Communication Protocol

Product Detail

Product number: 08DQ0021-01
Cell model:26650-3300mAh-3.2V
Battery specification: 26650-6S2P-6.6Ah-19.2V
Product dimension: 241*86*65mm
Nominal voltage:19.2V
Nominal capacity:6.6Ah
Charging voltage: DC 24V
Charging current: ≤1.3A
Discharging current: ≤9A
End-off voltage: 13.8V
Internal resistance: ≤250mΩ
Battery weight: 2kg
Charging temperature:0~45℃
Discharging temperature: -20~60℃
Storage temperature: -20~35℃
Battery case: sheet metal shell
Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, ESD protection, etc.
Application field: standby power supply, cardiopulmonary machine, ventilator and other medical equipment.

Battery features
1.Data communication management: CAN communication is adopted for accurate data transmission, precise temperature control, real-time battery condition monitoring and controlling to eliminate potential safety hazards to the maximum extent.
2.Lithium iron phosphate battery pack: The battery pack has good security and nice discharge performance, and Its cycle life is over 3000 times.
3.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
4.Metal plated shell increases the reliability and firmness of battery, and it is easy to install, handle and carry.
5.Connector plug port: Aviation plug output mode is adopted to increase conductive reliability.
6.Wire output port: High temperature resistant wire output mode is adopted to inprove conductivity reliability and high temperature resistance

*
*
*
